Front Wiper and Washer (w/Auto Wiper System): Notes

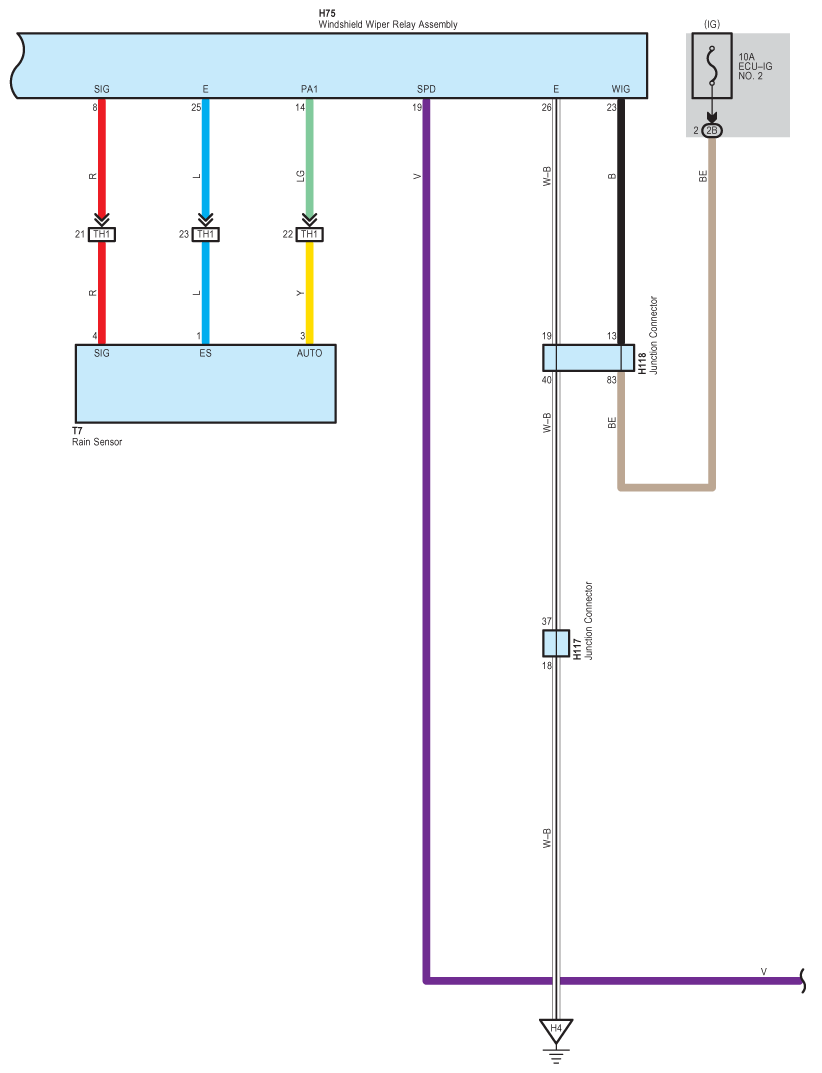

Fig 1: Front Wiper And Washer (W/Auto Wiper System) - Wiring Diagram (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

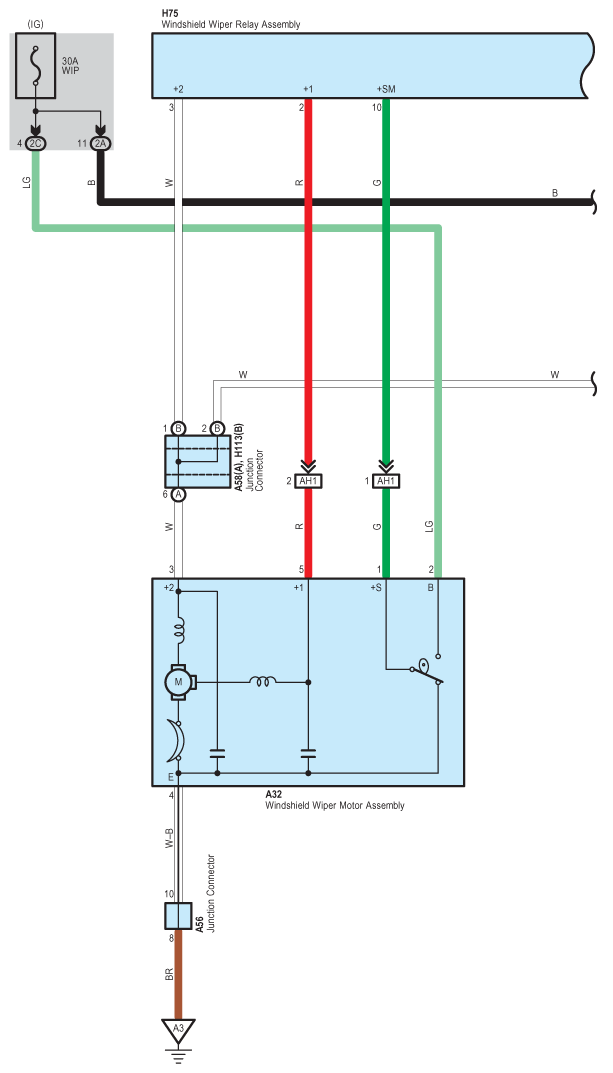

Fig 2: Front Wiper And Washer (W/Auto Wiper System) - Wiring Diagram (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

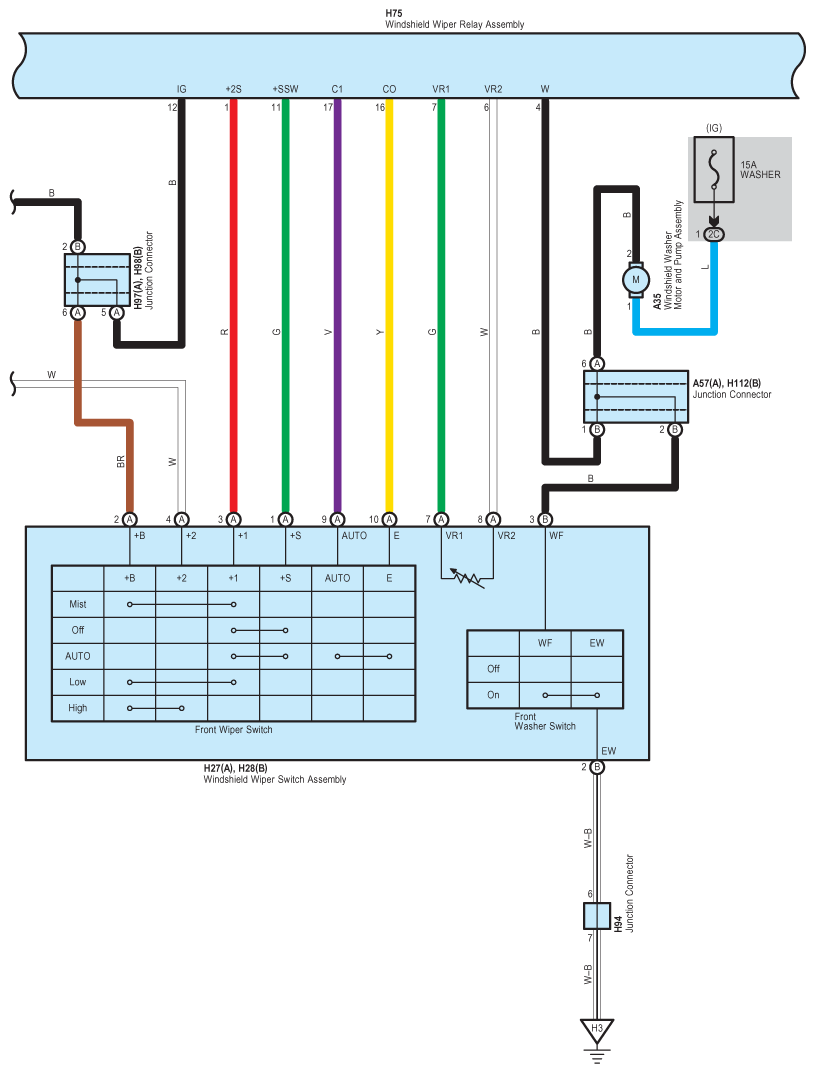

Fig 3: Front Wiper And Washer (W/Auto Wiper System) - Wiring Diagram (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Front Wiper And Washer (W/Auto Wiper System) - Wiring Diagram (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
