Front Wiper and Washer (w/o Auto Wiper System): Notes

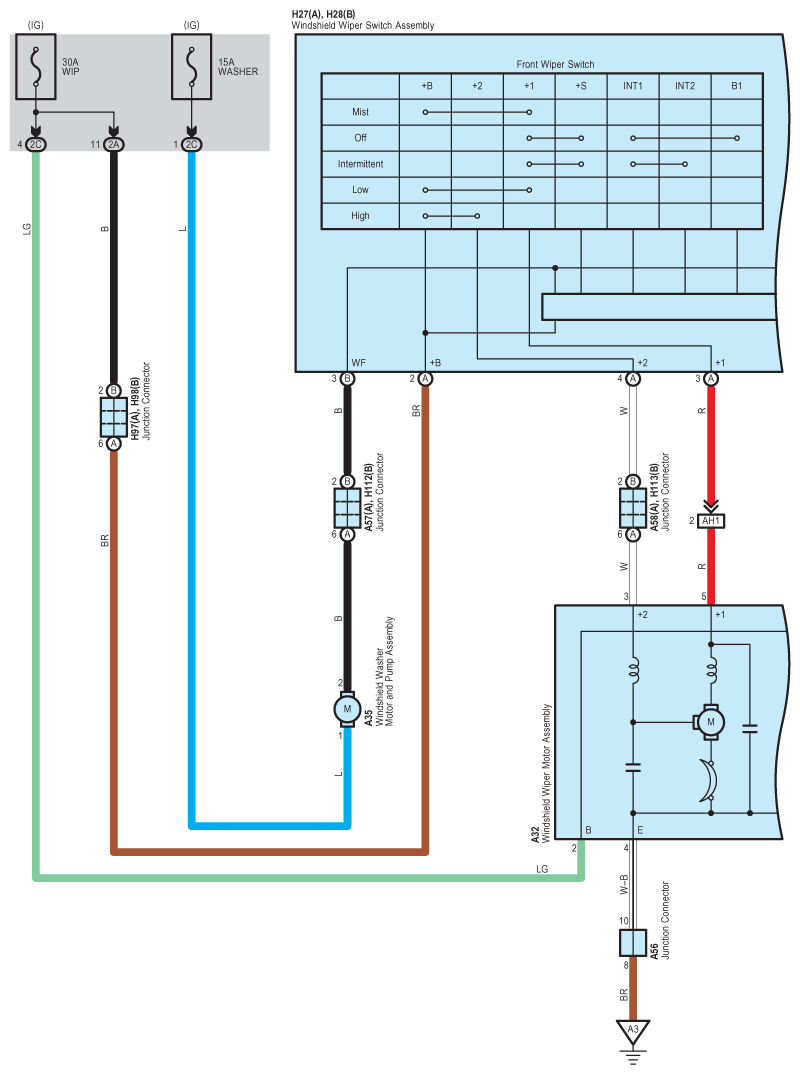

Fig 1: Front Wiper And Washer (W/O Auto Wiper System) - Wiring Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

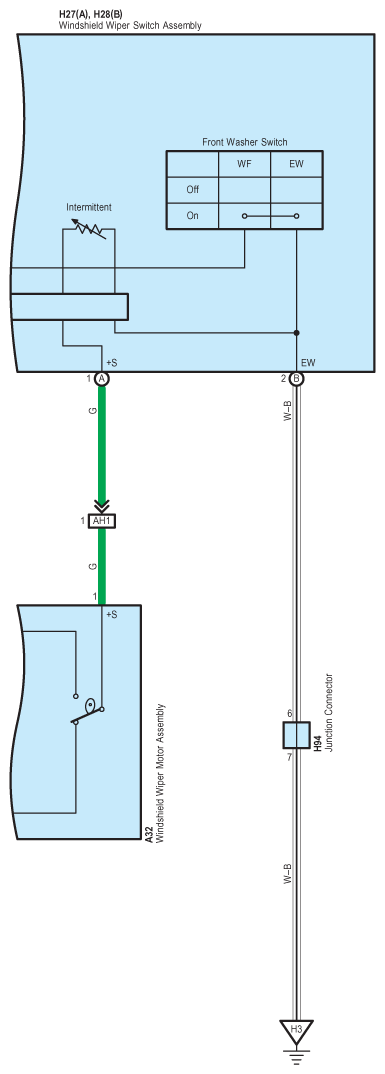

Fig 2: Front Wiper And Washer (W/O Auto Wiper System) - Wiring Diagram (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
