Multiplex Communication System (AVC-LAN): Notes

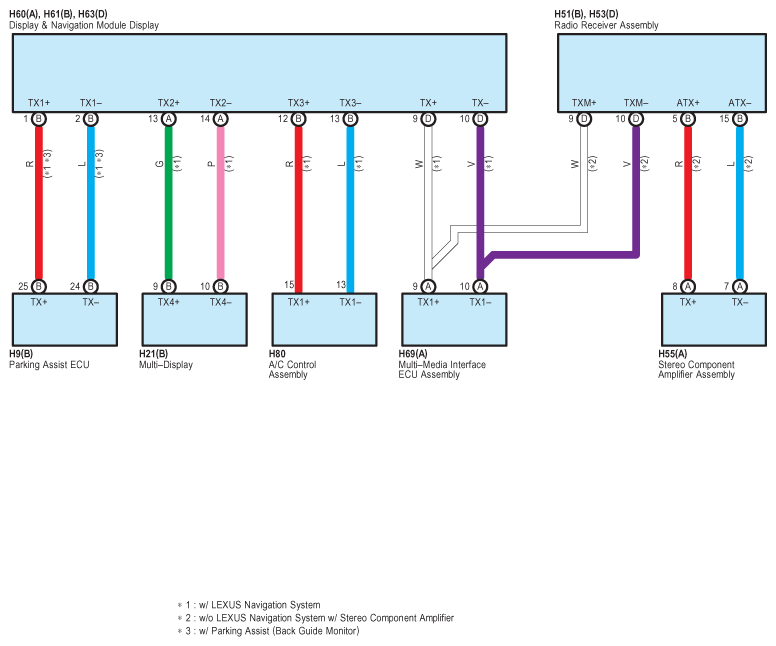

Fig 1: Multiplex Communication System (Avc-Lan) - Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
