Heated Steering Wheel Controller: Components: Illustration

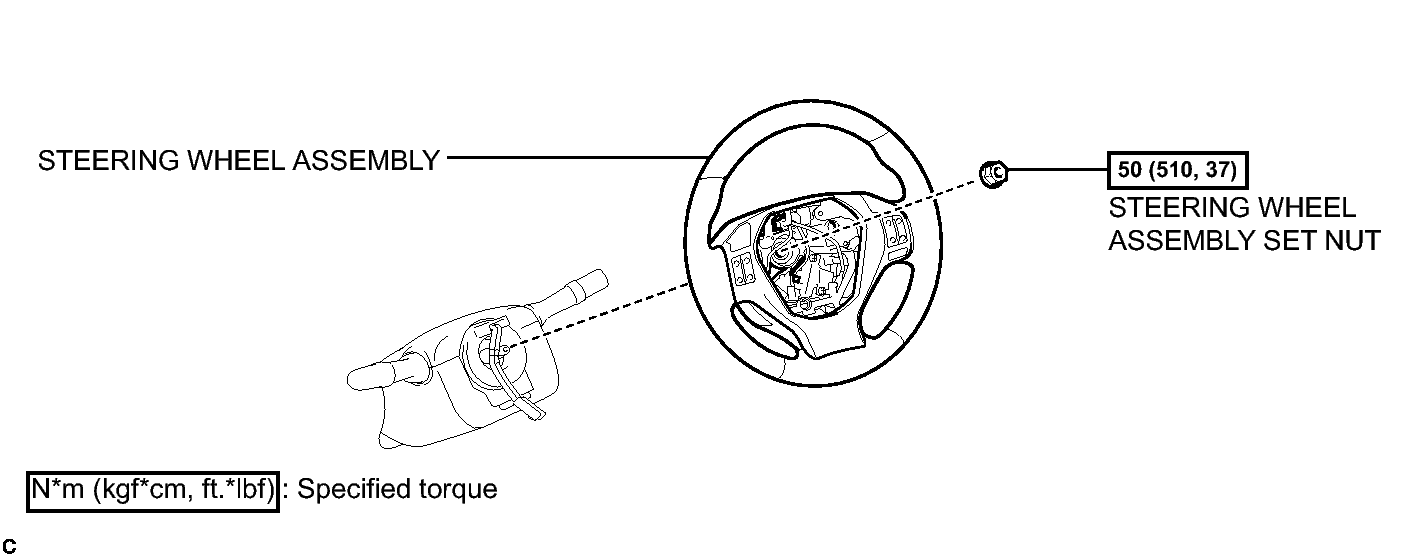

Fig 1: Identifying Steering Wheel Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

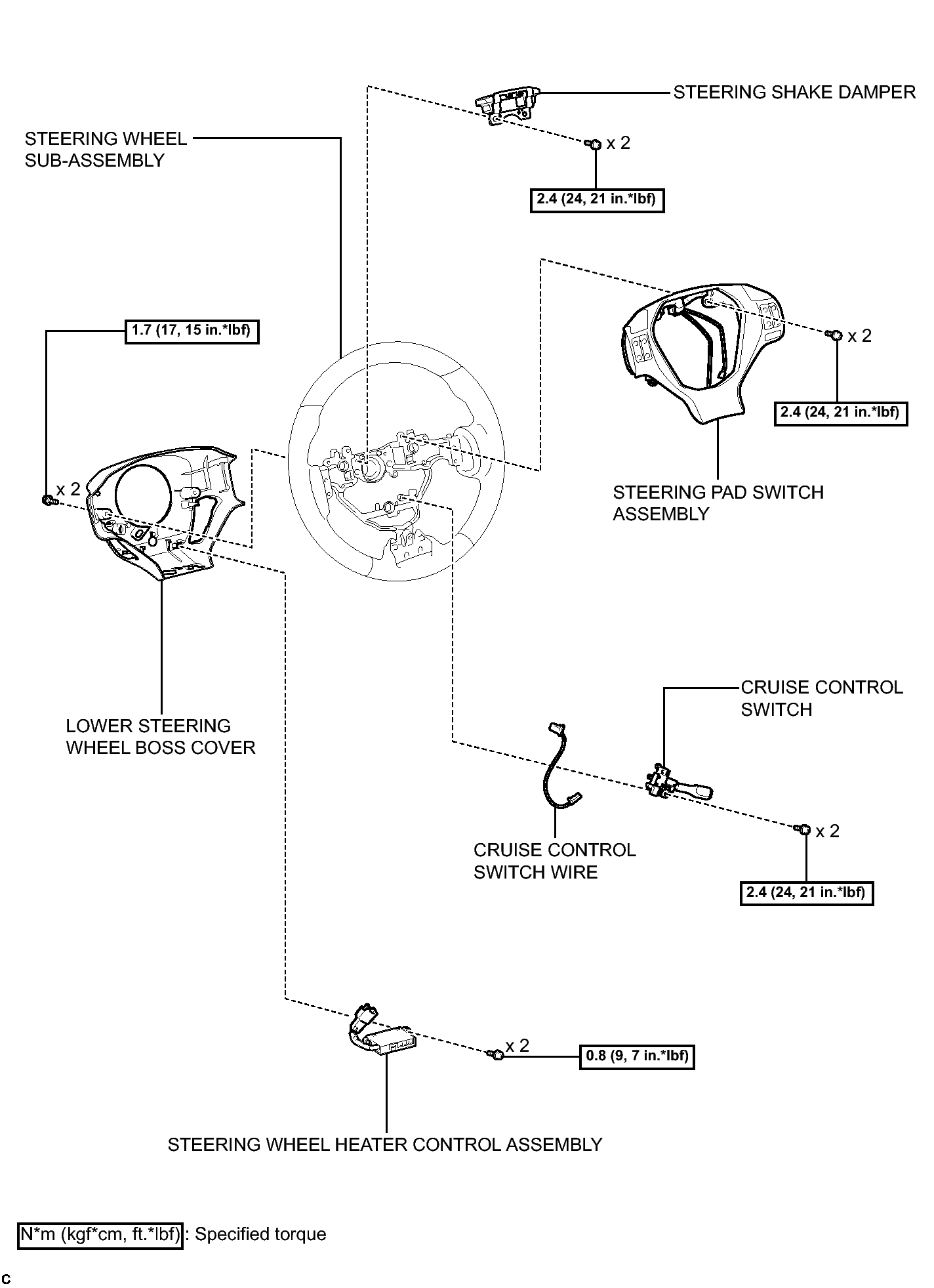

Fig 1: Identifying Heated Steering Wheel Controller Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
