Steering Wheel: Components: Illustration

Fig 1: Identifying Steering Wheel Replacement Components With Torque Specifications
GTY358211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

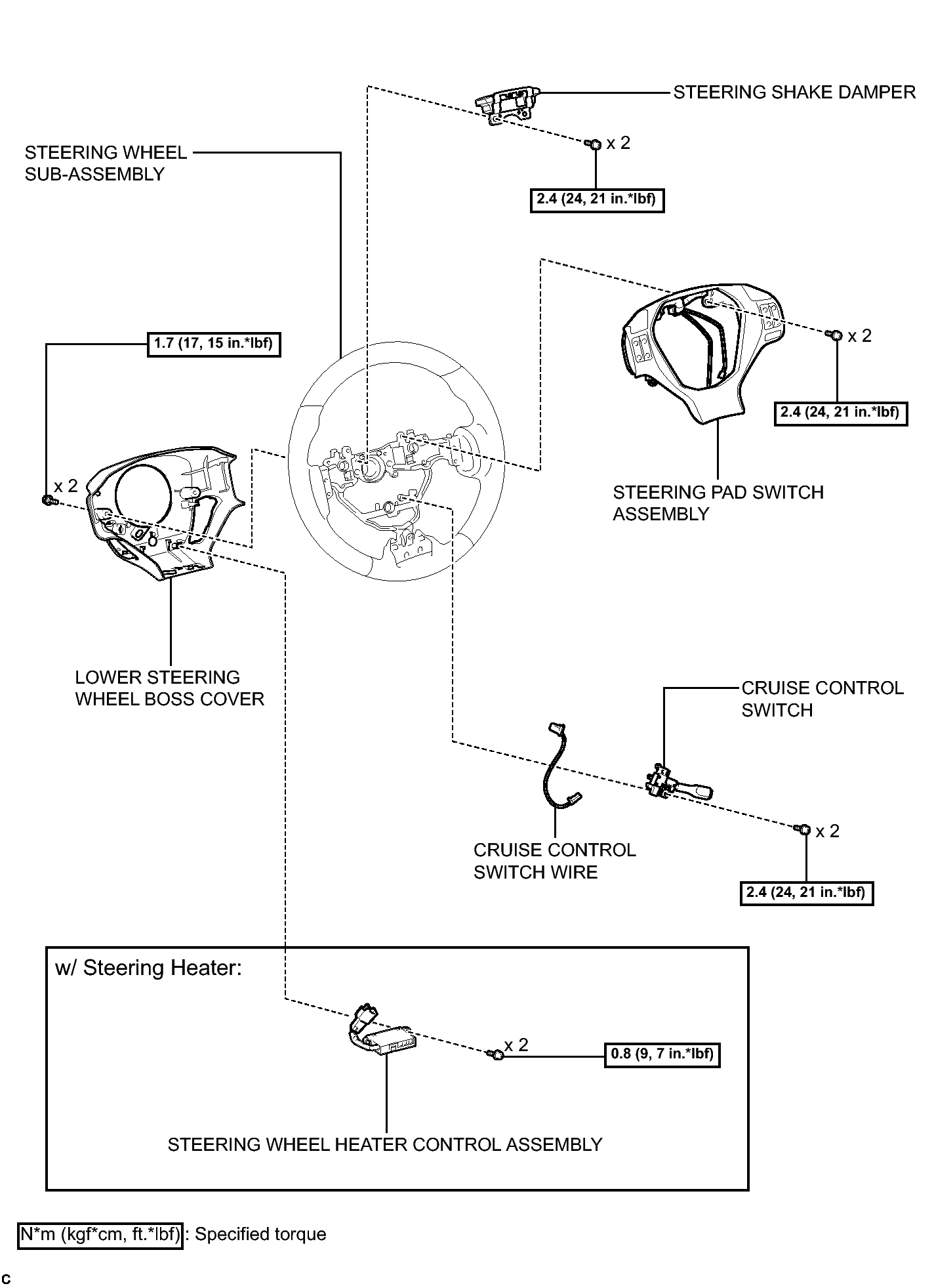

Fig 1: Identifying Steering Wheel Replacement Components With Torque Specifications
GTY351741Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
