System Diagram

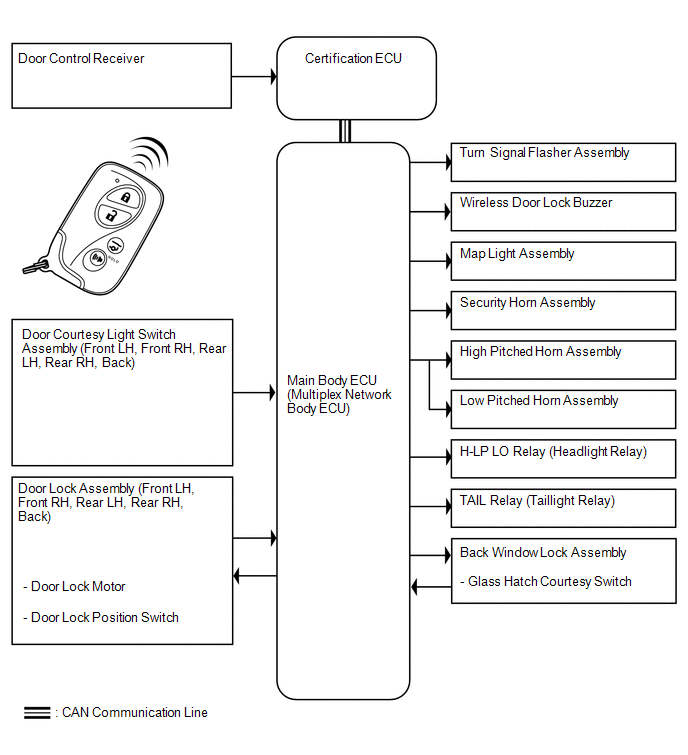

Fig 1: Identifying Wireless Door Lock Control System Diagram
GTY269778Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION TABLE

Sender Receiver Signal Line
Certification ECU Main body ECU (multiplex network body ECU)
  • Door unlock standby control signal
  • Door lock/unlock output request signal
  • Wireless door lock buzzer operation request signal
 CAN
Main body ECU (multiplex network body ECU) Certification ECU
  • Door courtesy light switch signal
  • Door lock position signal
