Glass Hatch Opener: Notes

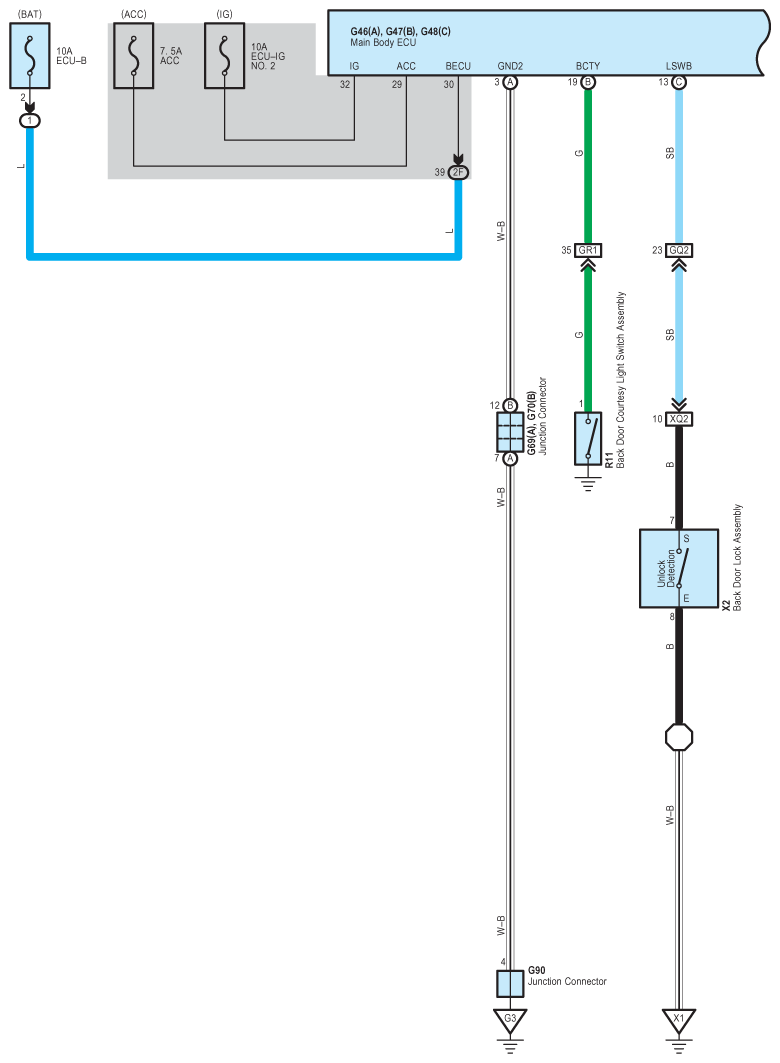

Fig 1: Glass Hatch Opener - Wiring Diagram (1 Of 5)
G08931057Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

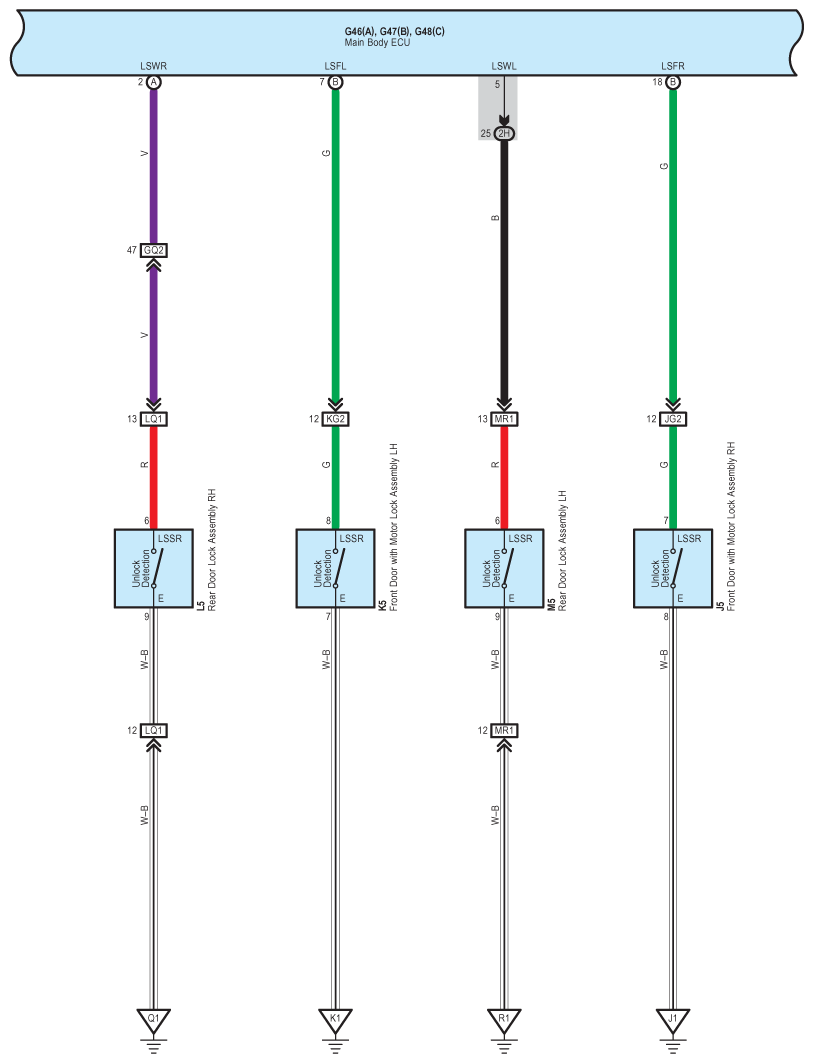

Fig 2: Glass Hatch Opener - Wiring Diagram (2 Of 5)
G08931058Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

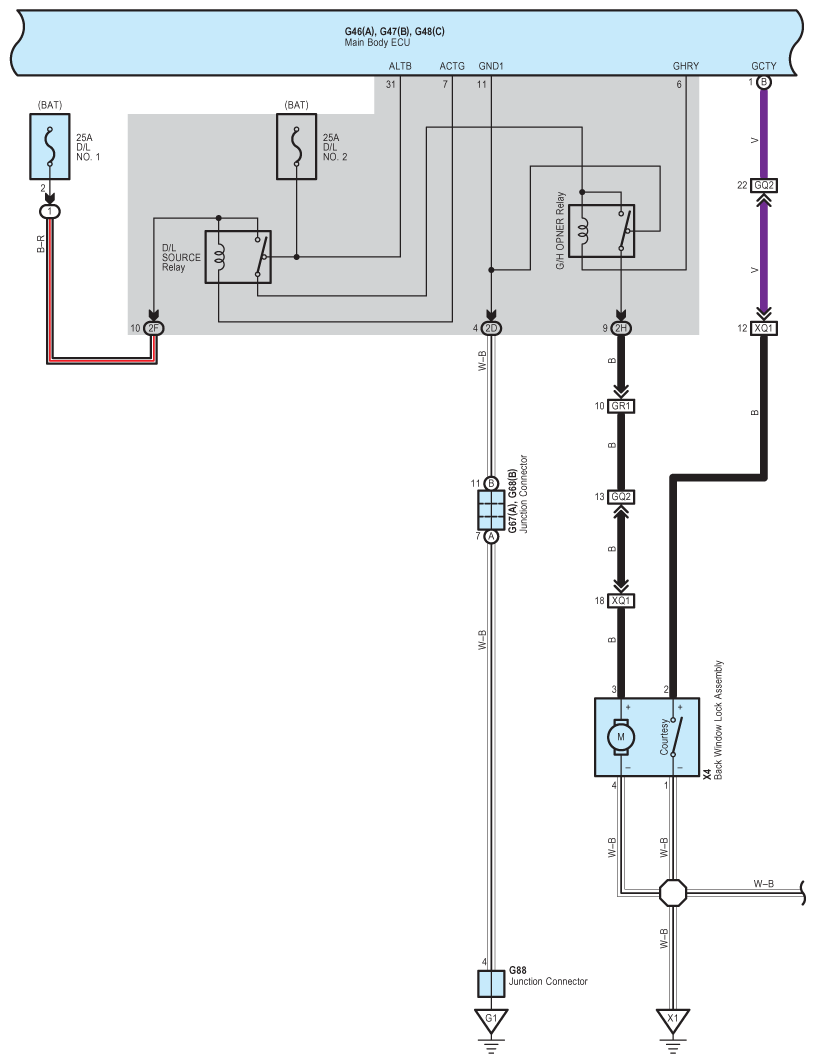

Fig 3: Glass Hatch Opener - Wiring Diagram (3 Of 5)
G08931059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

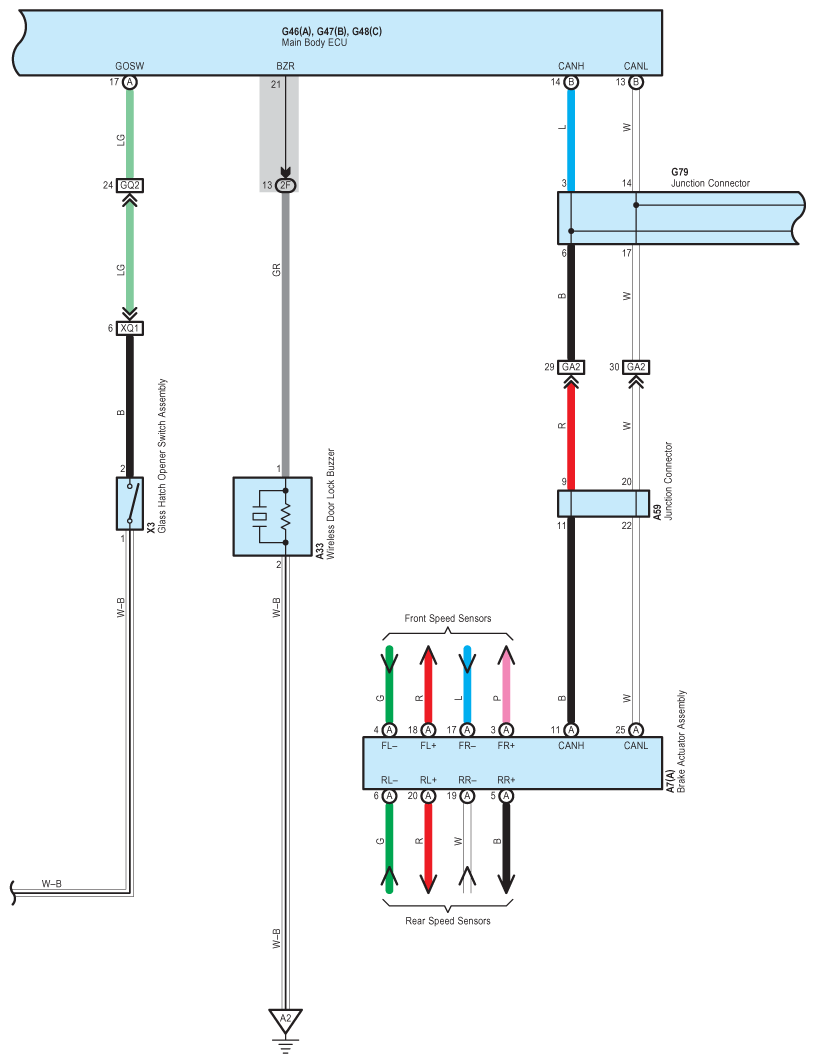

Fig 4: Glass Hatch Opener - Wiring Diagram (4 Of 5)
G08931060Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

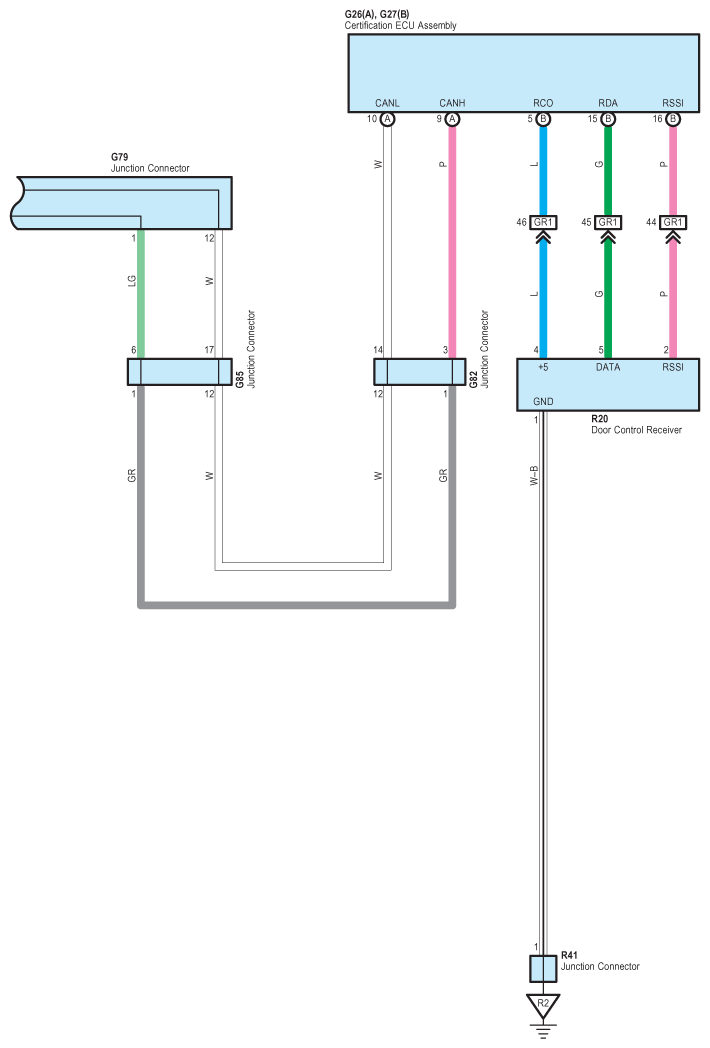

Fig 5: Glass Hatch Opener - Wiring Diagram (5 Of 5)
G08931061Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
