Trailer Towing: Notes

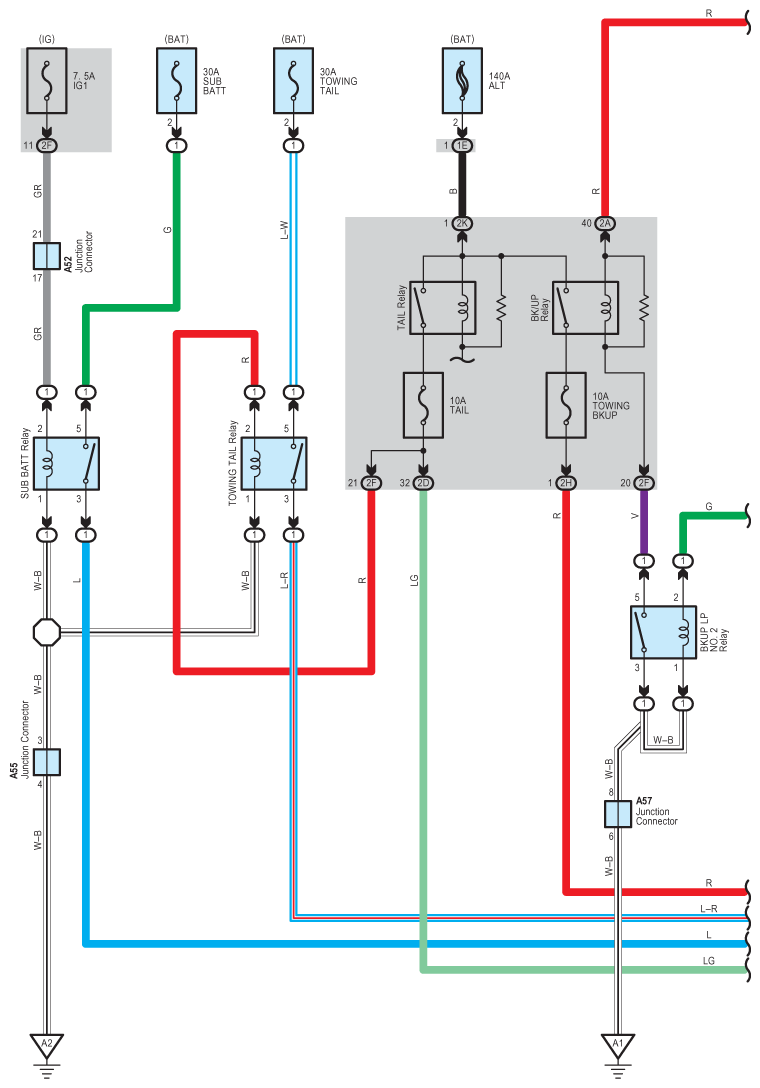

Fig 1: Trailer Towing - Wiring Diagram (1 Of 5)
G08931101Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

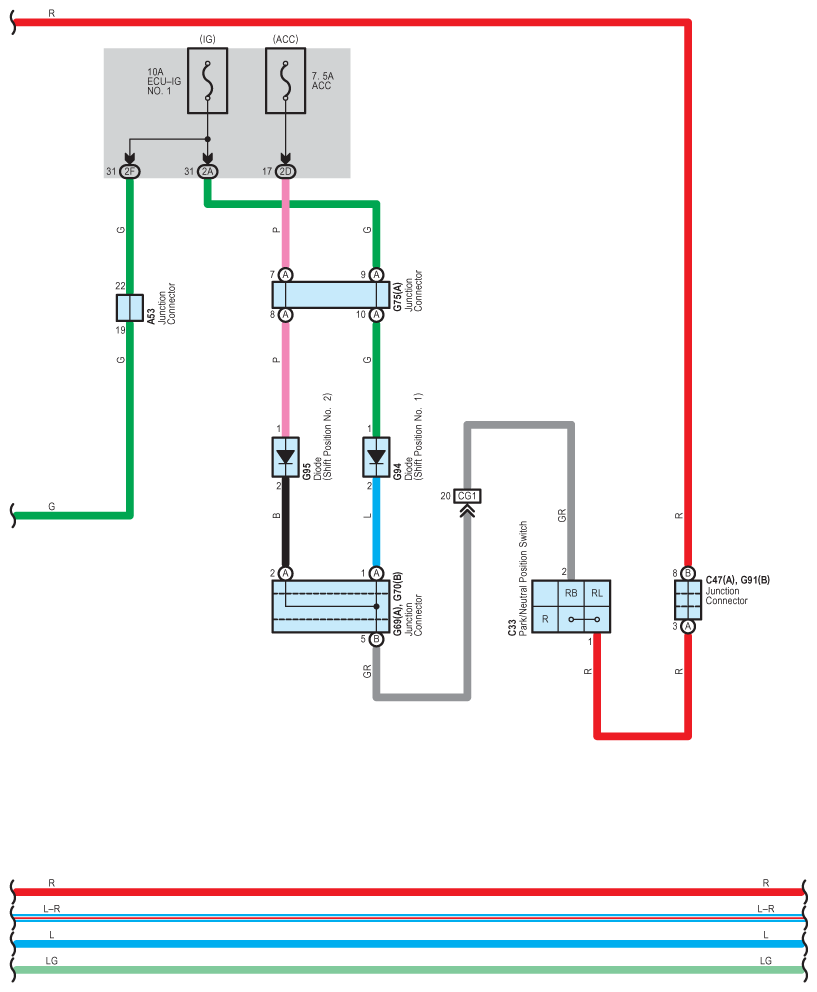

Fig 2: Trailer Towing - Wiring Diagram (2 Of 5)
G08931102Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

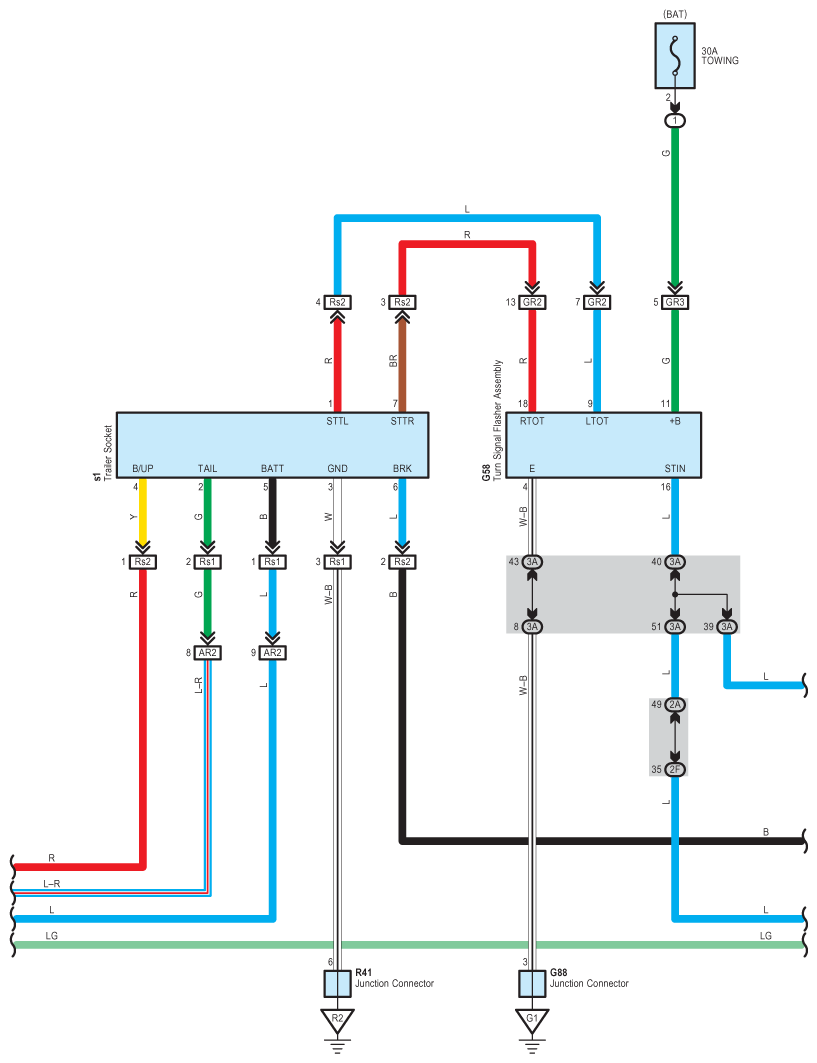

Fig 3: Trailer Towing - Wiring Diagram (3 Of 5)
G08931103Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

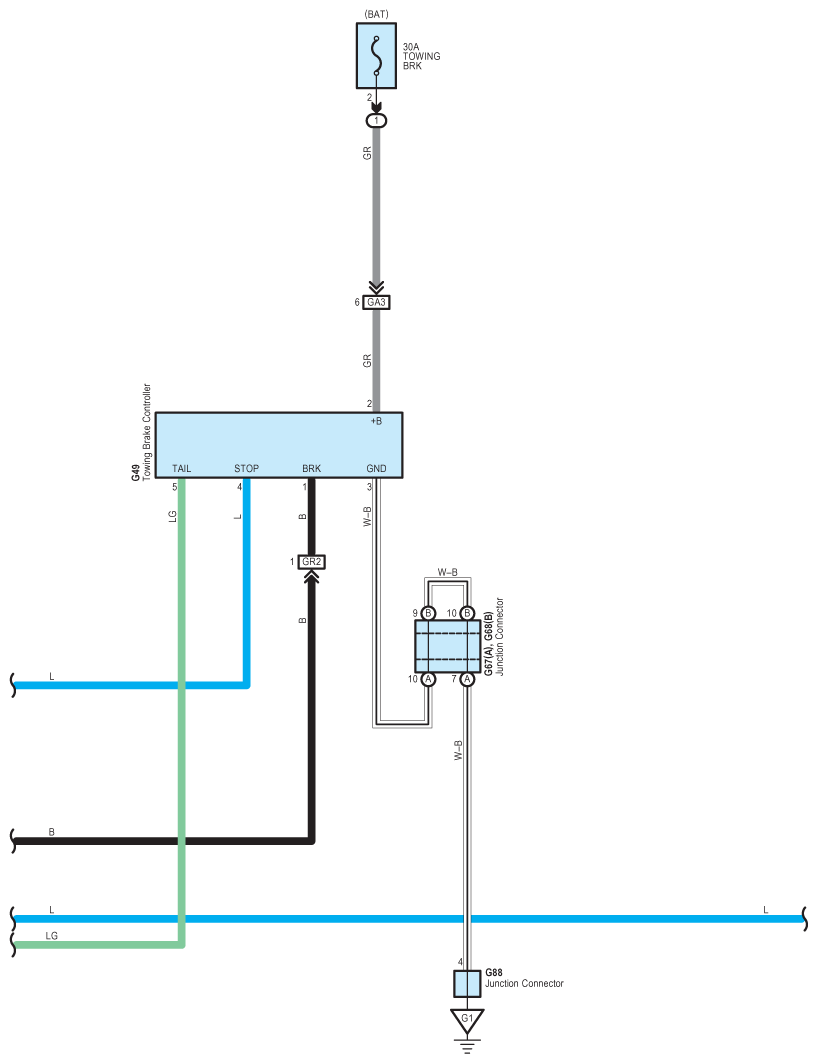

Fig 4: Trailer Towing - Wiring Diagram (4 Of 5)
G08931104Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

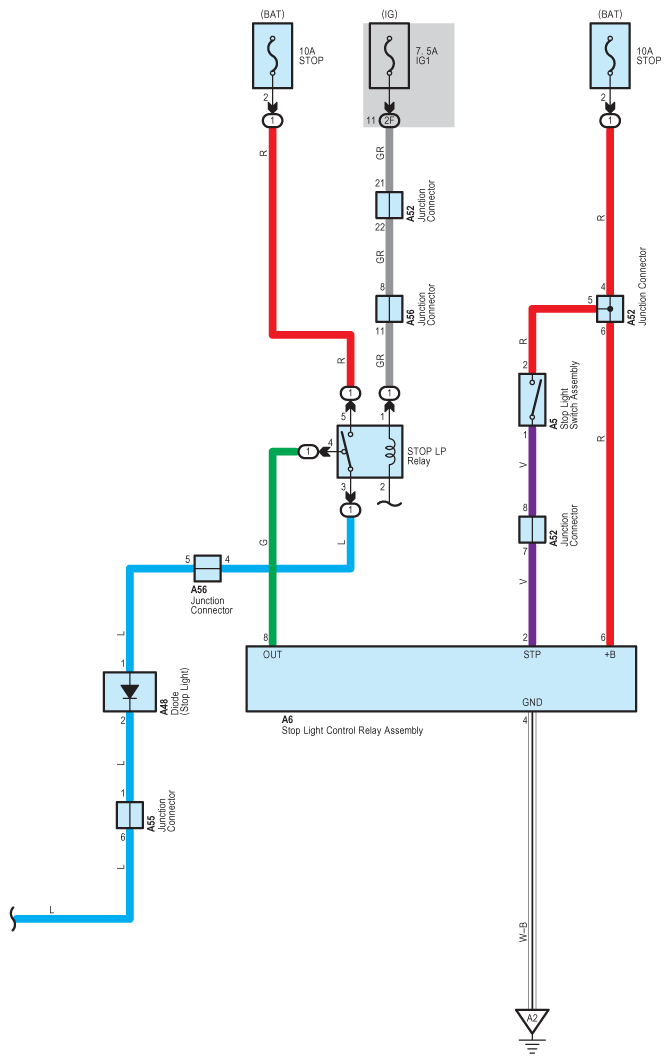

Fig 5: Trailer Towing - Wiring Diagram (5 Of 5)
G08931105Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
