Fuel Pump: Components: Illustration

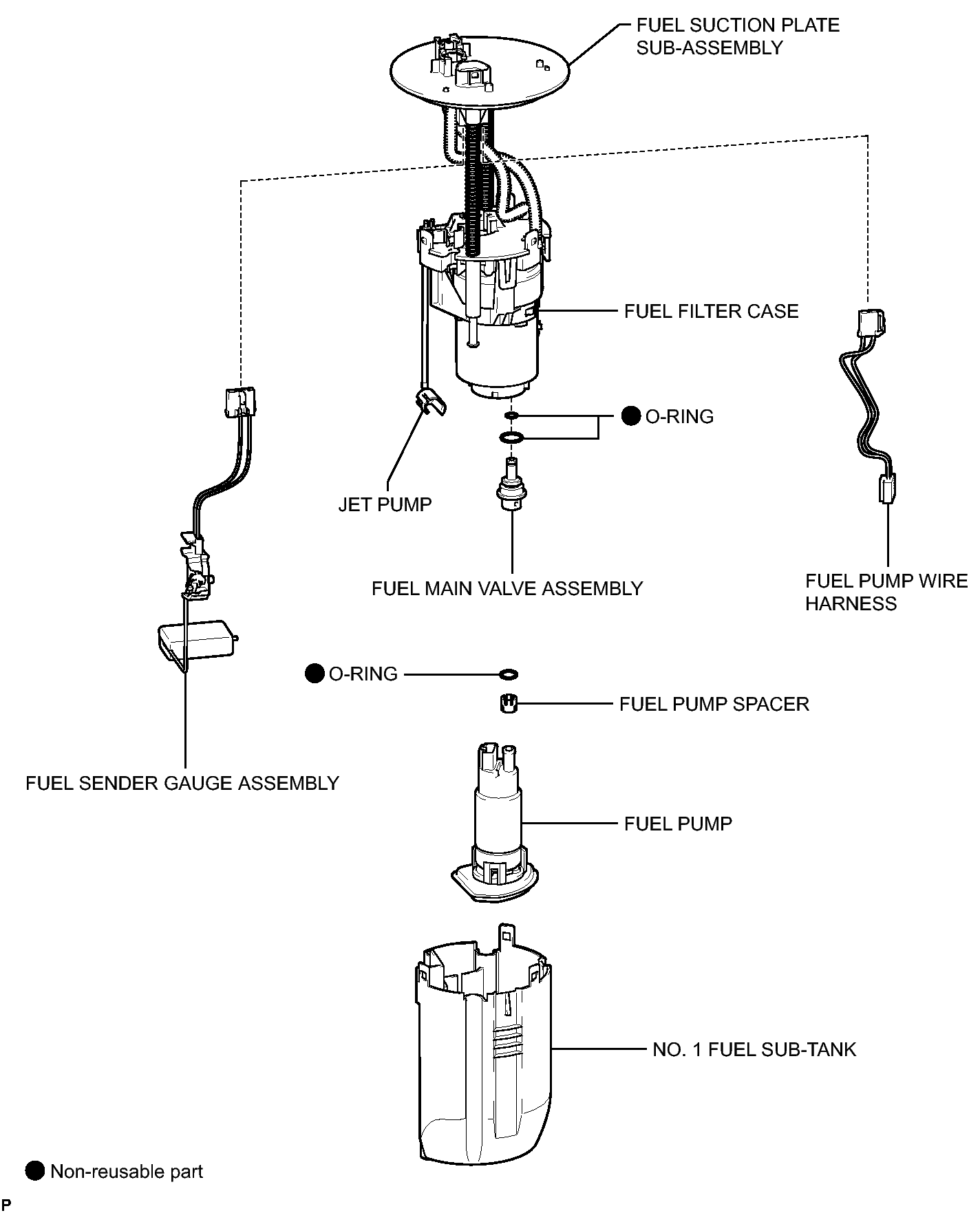

Fig 1: Identifying Fuel Pump Replacement Components
GTY231279Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
