4WD Control Switch: Components: Illustration

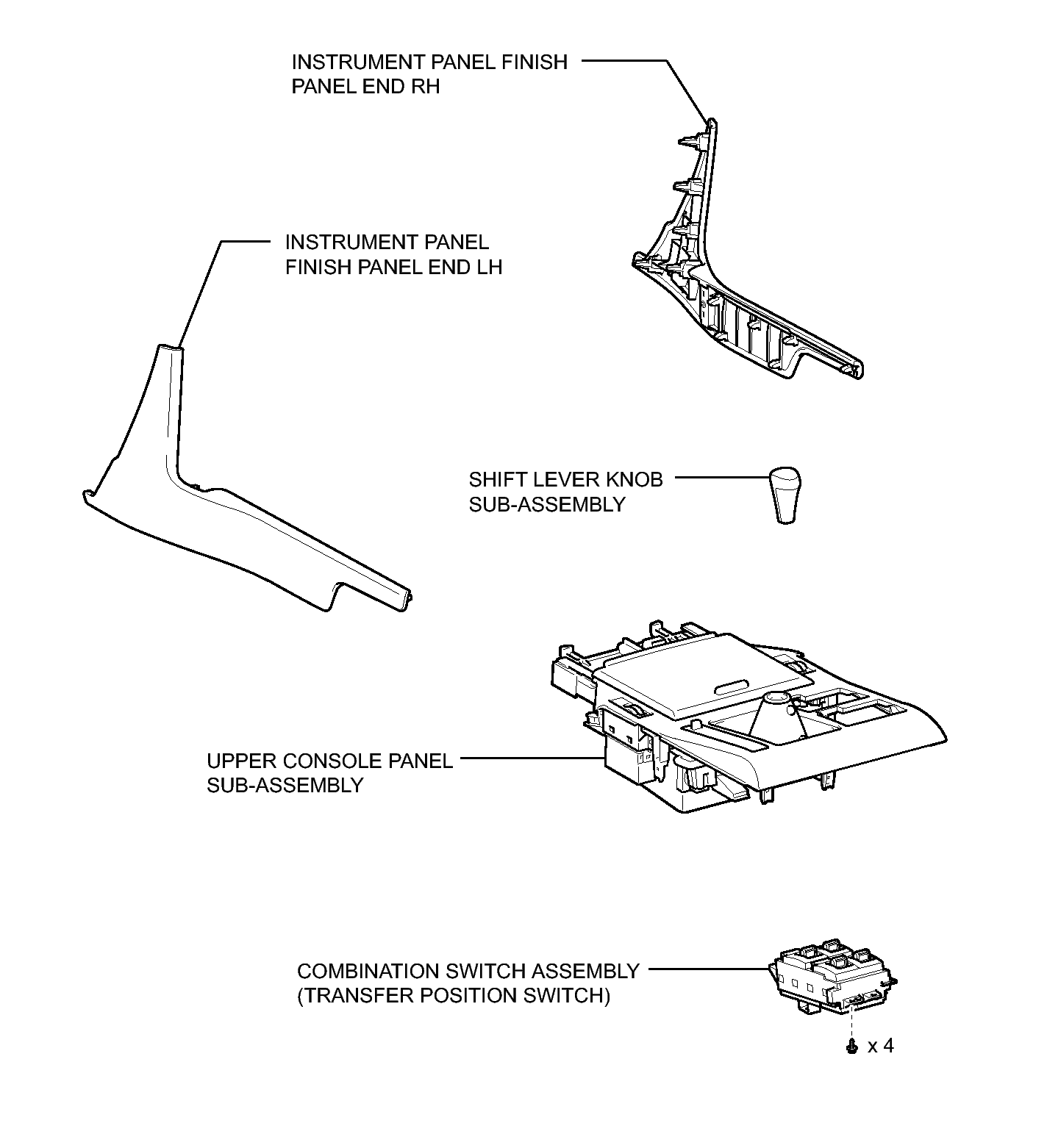

Fig 1: Identifying 4WD Control Switch Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
