System Diagram

MOST NETWORK COMMUNICATION LINE

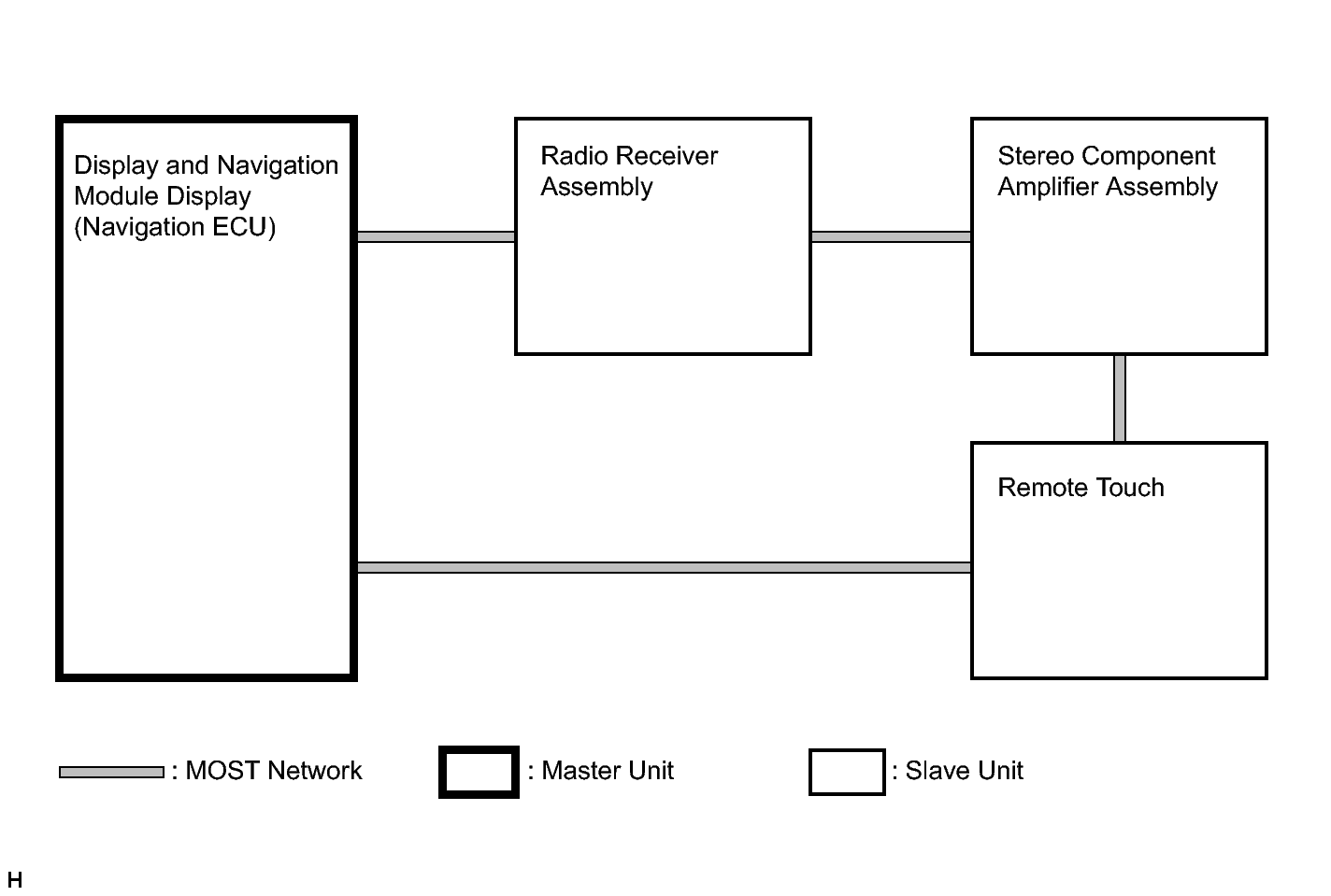

Fig 1: Identifying Navigation System Diagram (Most Network Communication Line)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
AVC-LAN COMMUNICATION LINE

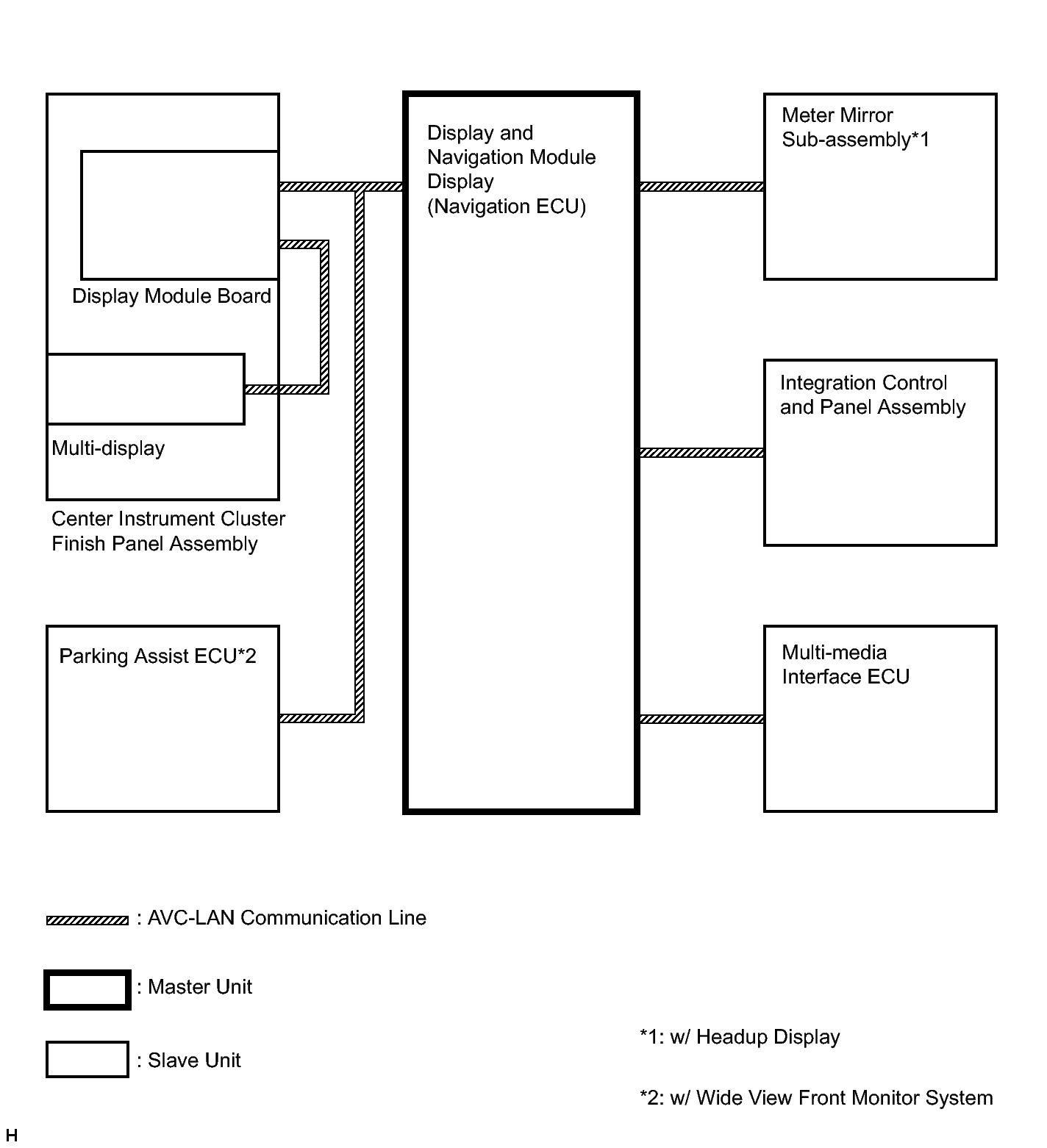

Fig 2: Identifying Navigation System Diagram (AVC-LAN Communication Line)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
OTHER

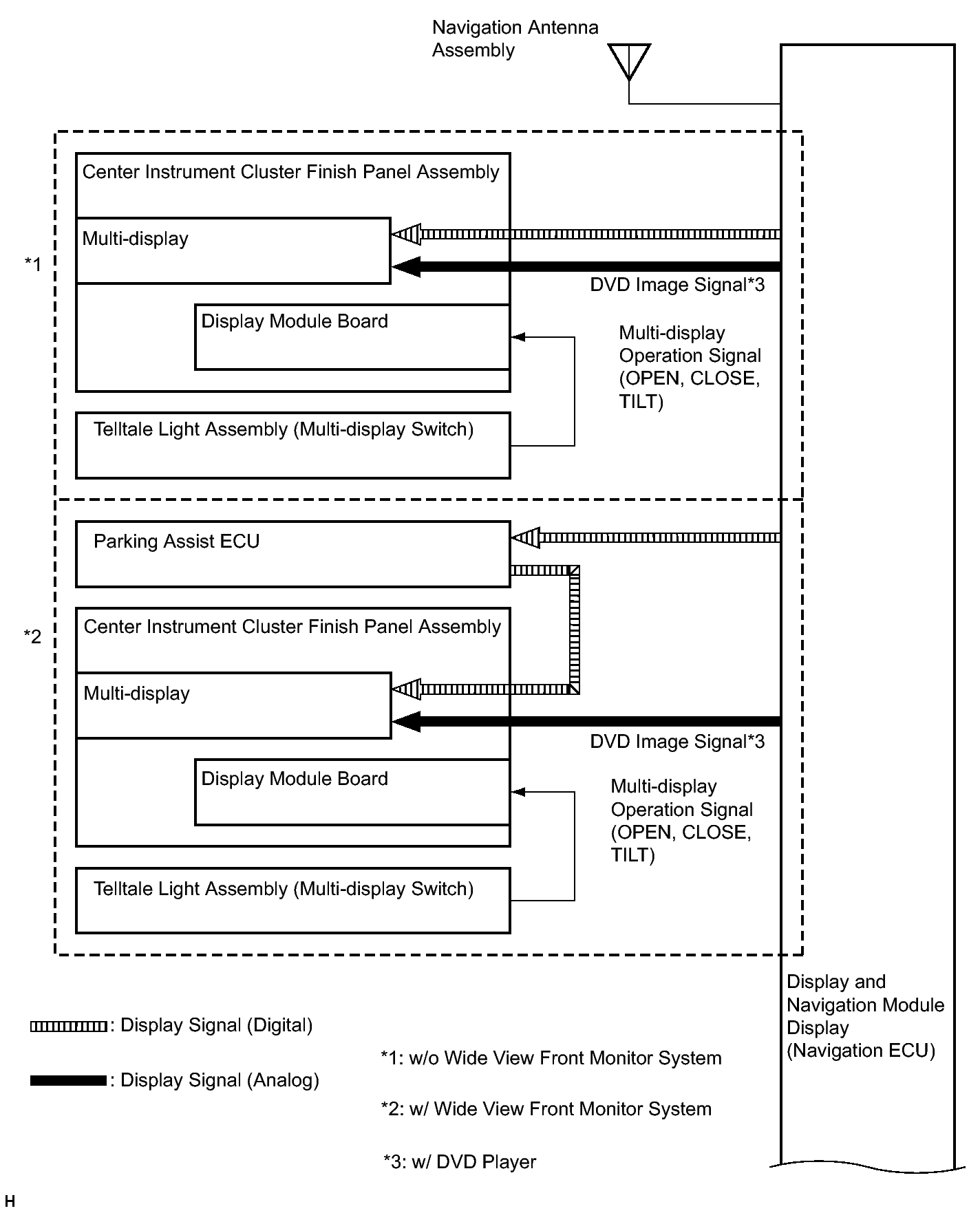

Fig 3: Identifying Navigation System Diagram (Other) (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

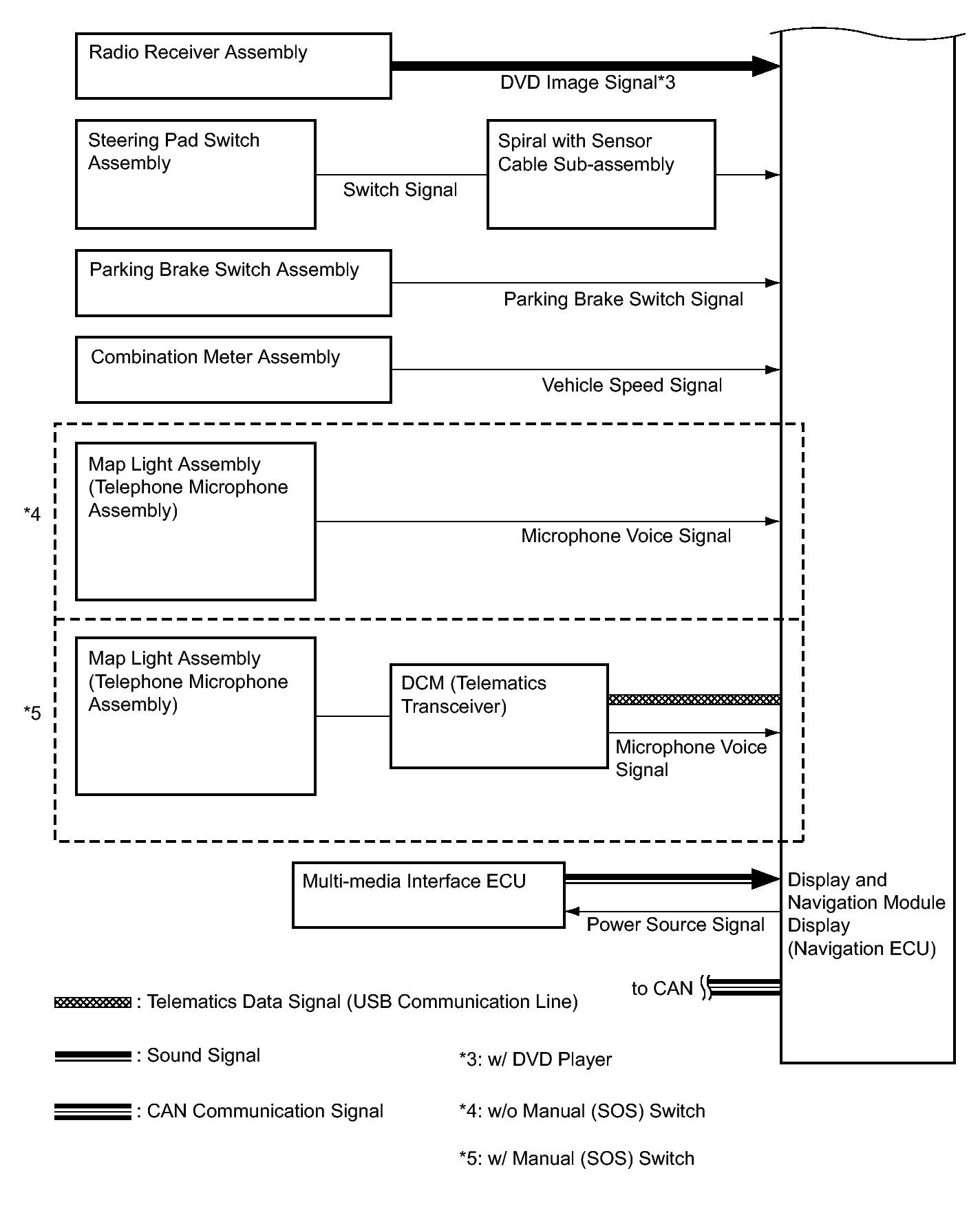

Fig 4: Identifying Navigation System Diagram (Other) (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
