Front Wiper Deicer
›
Notes
Front Wiper Deicer: Notes

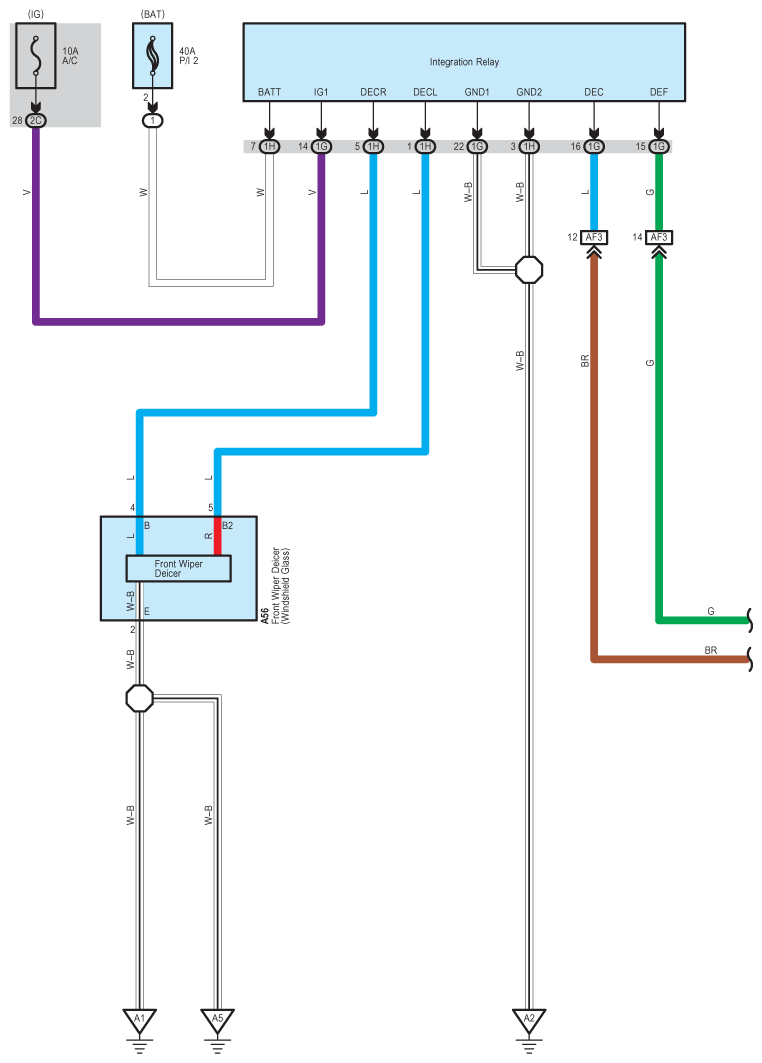

Fig 1: Front Wiper Deicer - Wiring Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

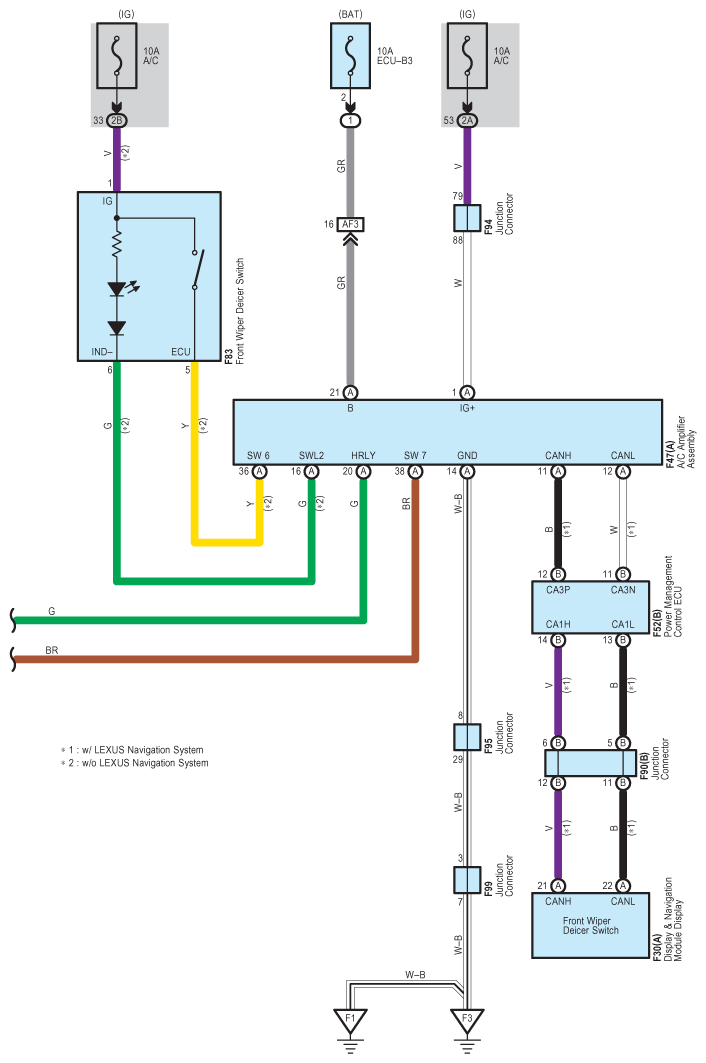

Fig 2: Front Wiper Deicer - Wiring Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
