Parts Location: Illustration

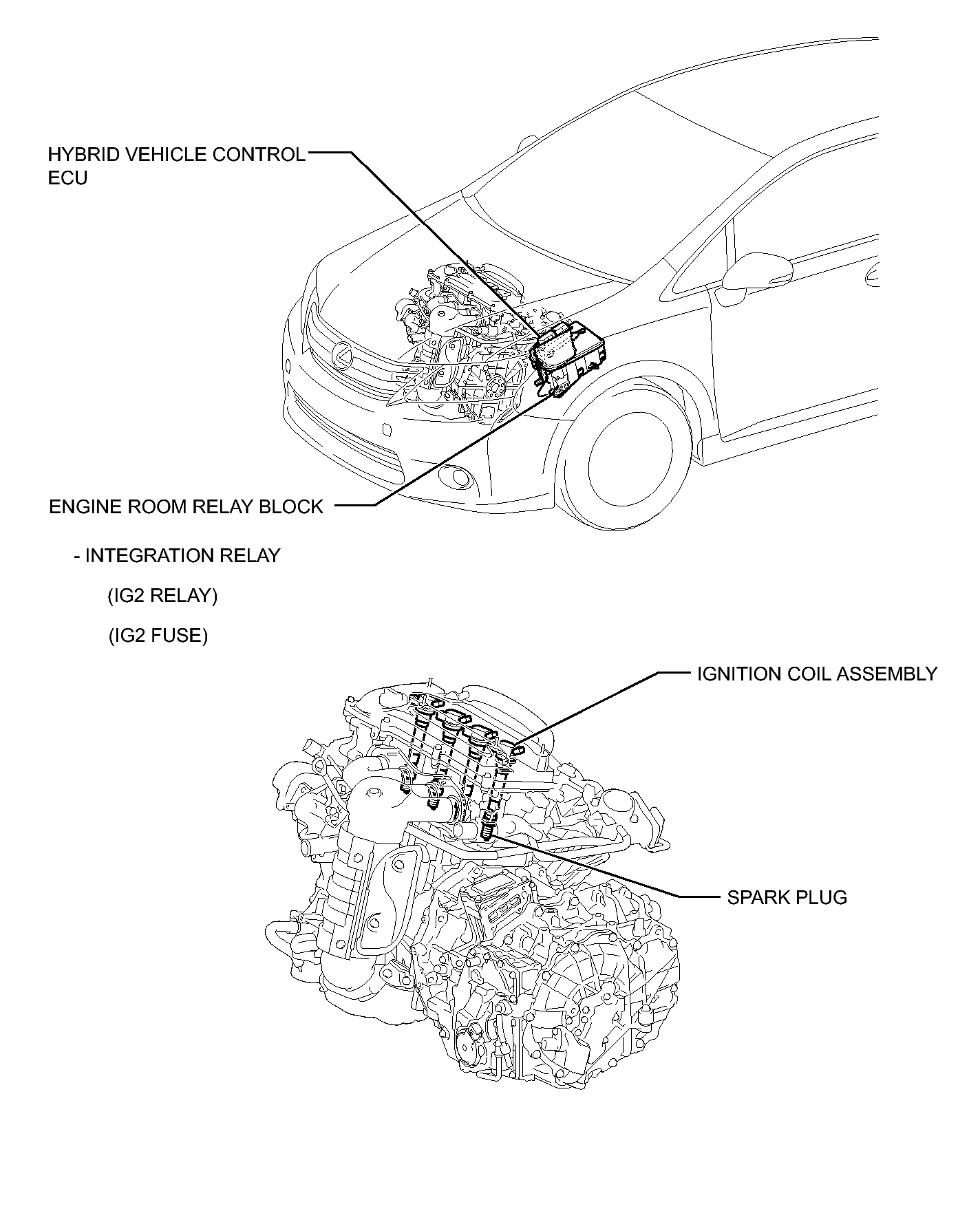

Fig 1: Identifying Ignition System Components Location

GTY282152

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
