OEM System Circuits: 4WD: Notes

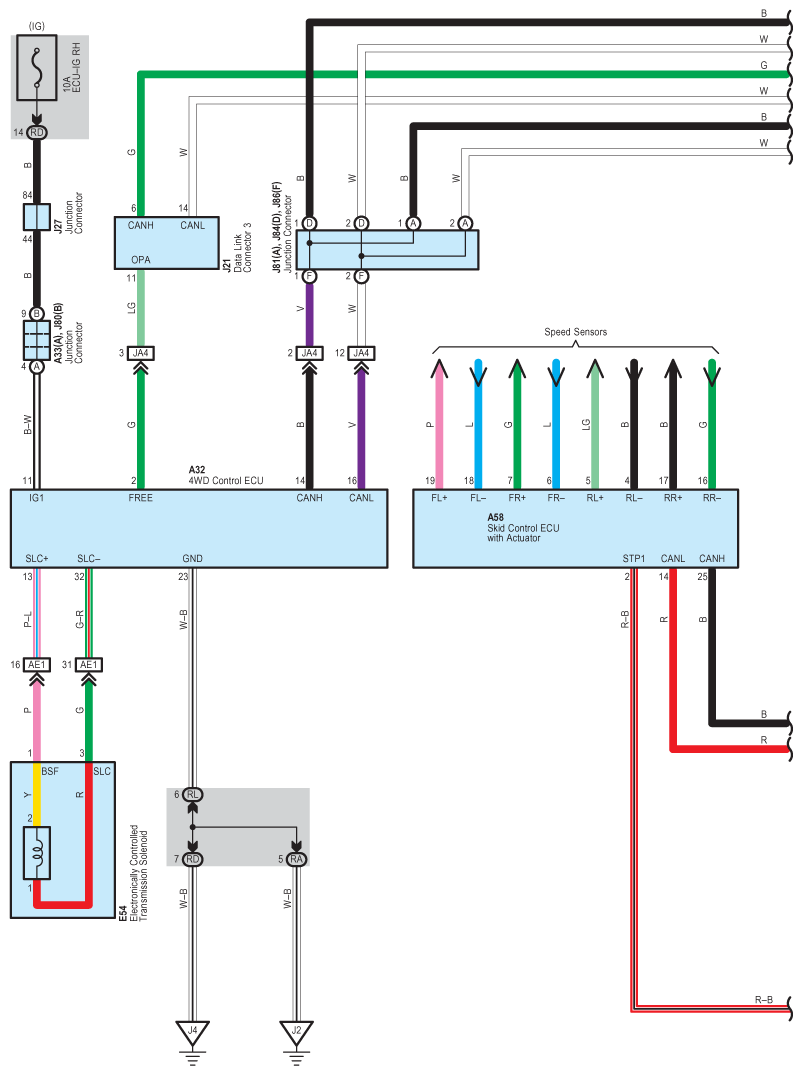

Fig 1: 4WD - Wiring Diagram (1 Of 3)

G08935573

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

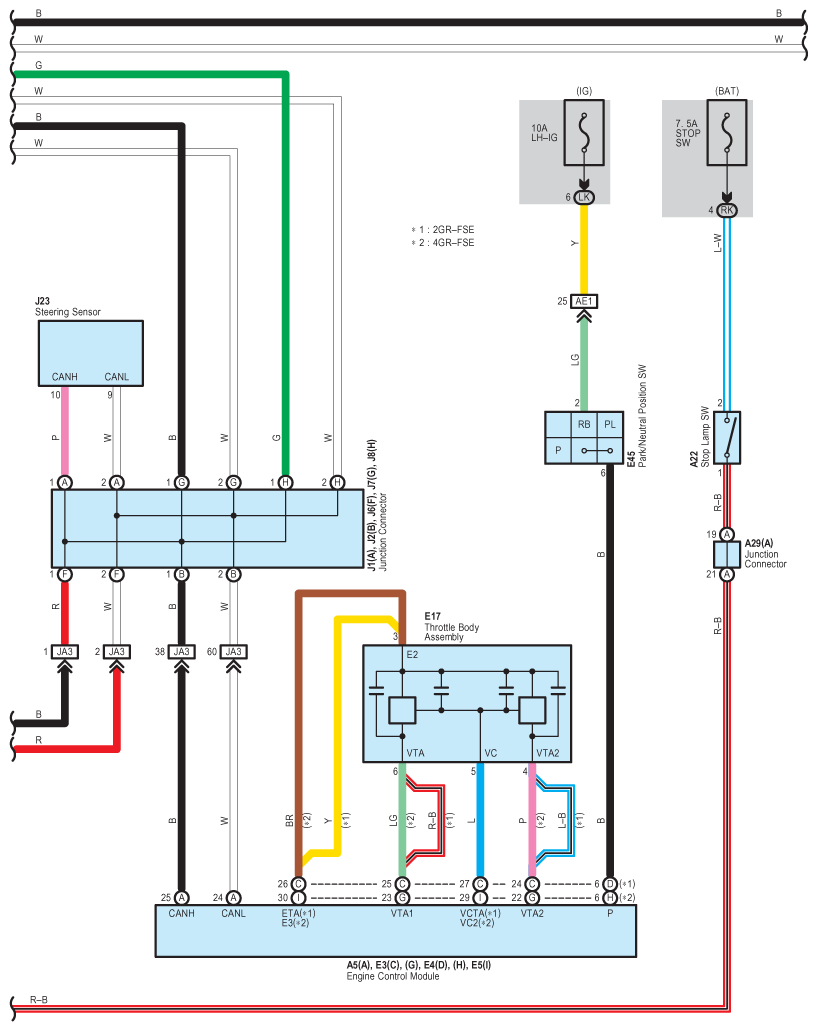

Fig 2: 4WD - Wiring Diagram (2 Of 3)

G08935574

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

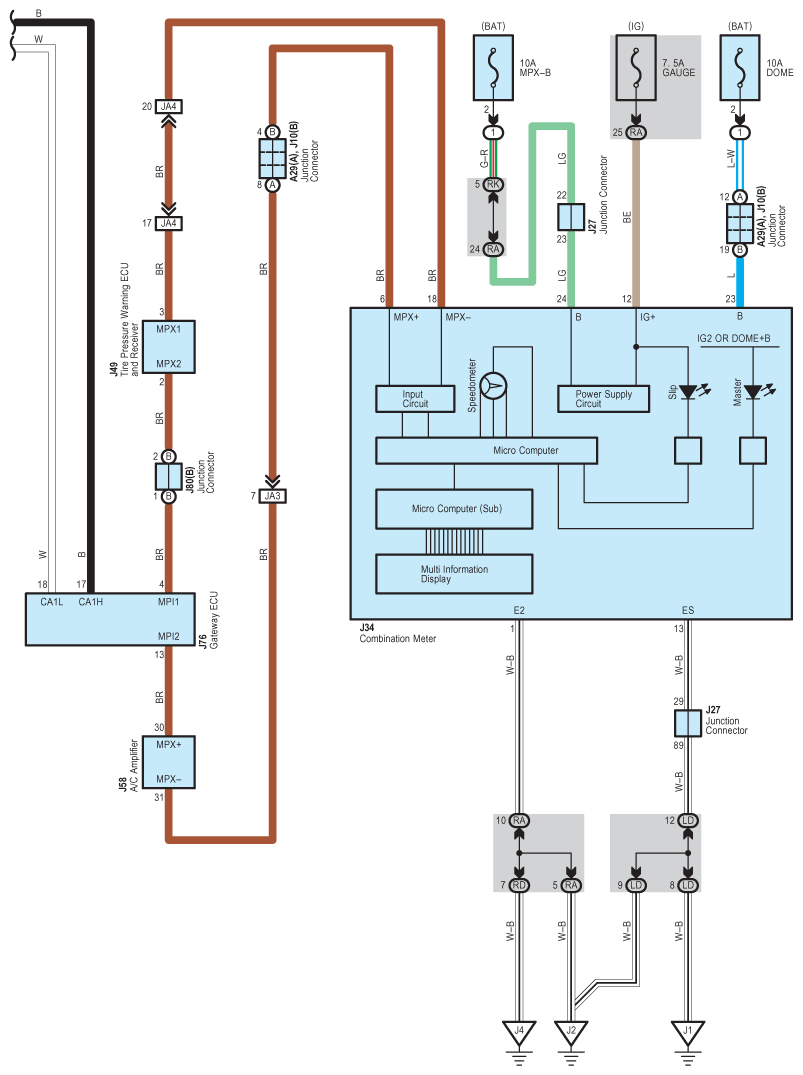

Fig 3: 4WD - Wiring Diagram (3 Of 3)

G08935575

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
