OEM System Circuits: Clock: Notes

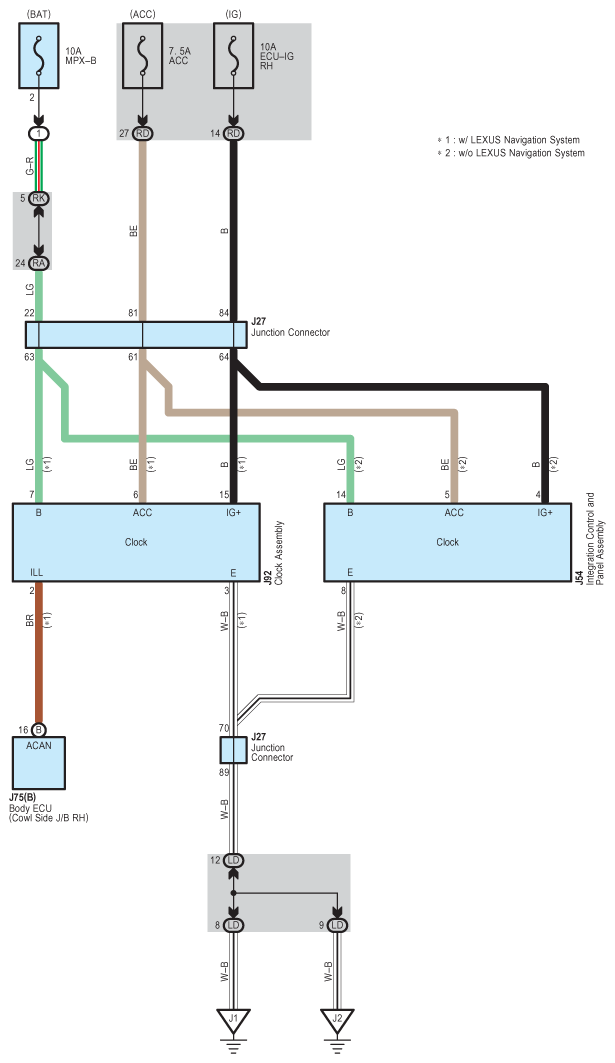

Fig 1: Clock - Wiring Diagram

G08935646

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
