Home › Lexus › 2012 › IS 250 Base, AWD › Repair and Diagnosis › Electrical › Body Electrical › OEM System Circuits › Front Window Deicer › Notes

Front Window Deicer: Notes

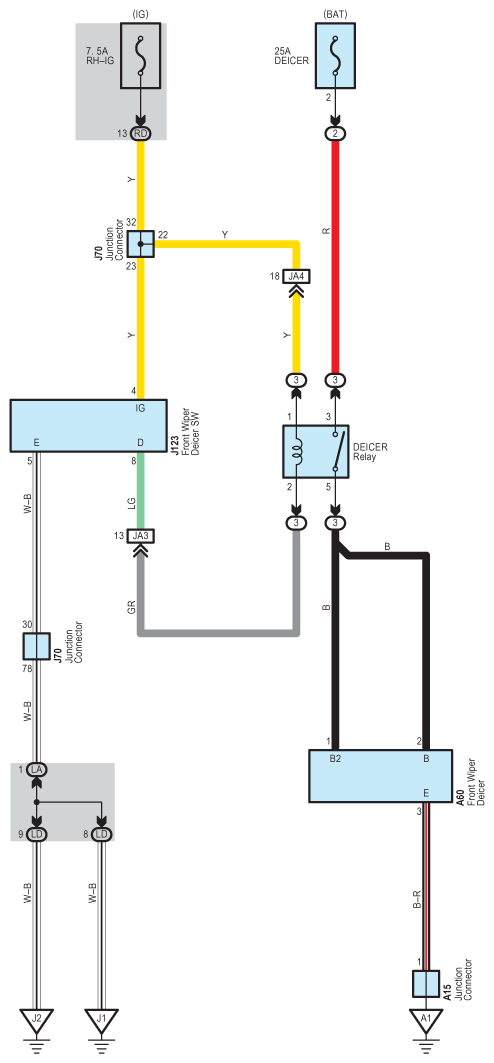

Fig 1: Front Window Deicer - Wiring Diagram
G08935645Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
