Power Seat (Front Passenger's Seat): Notes

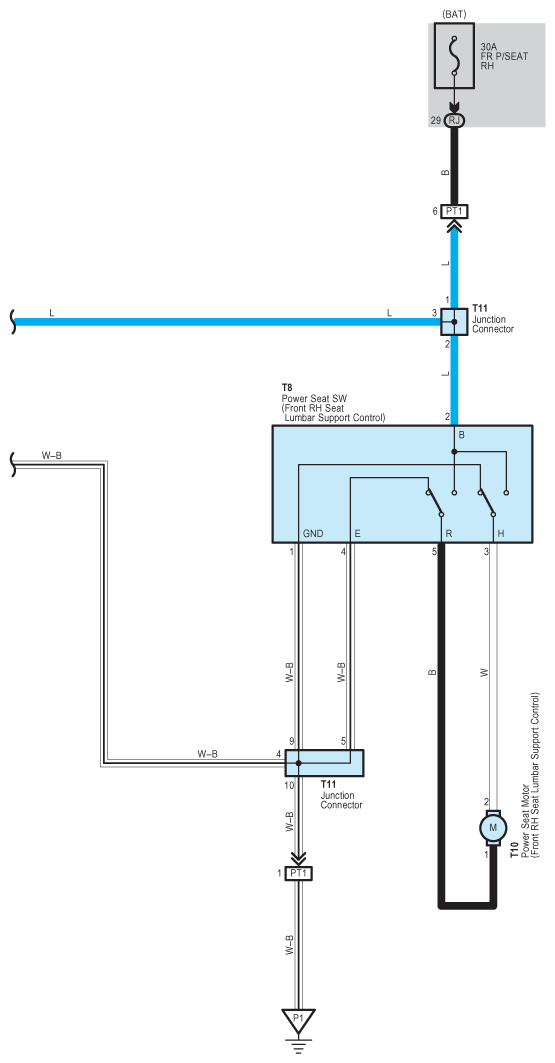

Fig 1: Power Seat (Front Passenger's Seat) - Wiring Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

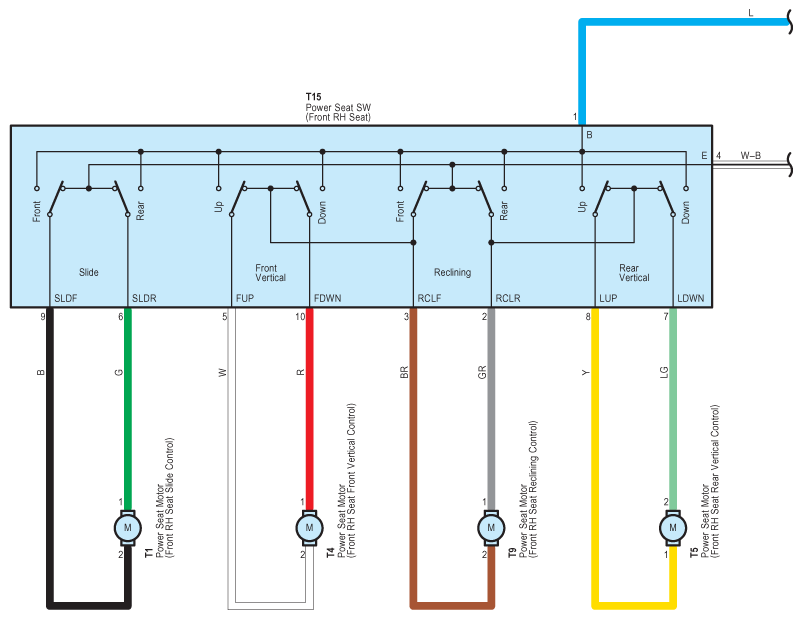

Fig 2: Power Seat (Front Passenger's Seat) - Wiring Diagram (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
