Power Source: Notes — 2012 Lexus IS 250 Base, AWD Service Manual ~ FixVault

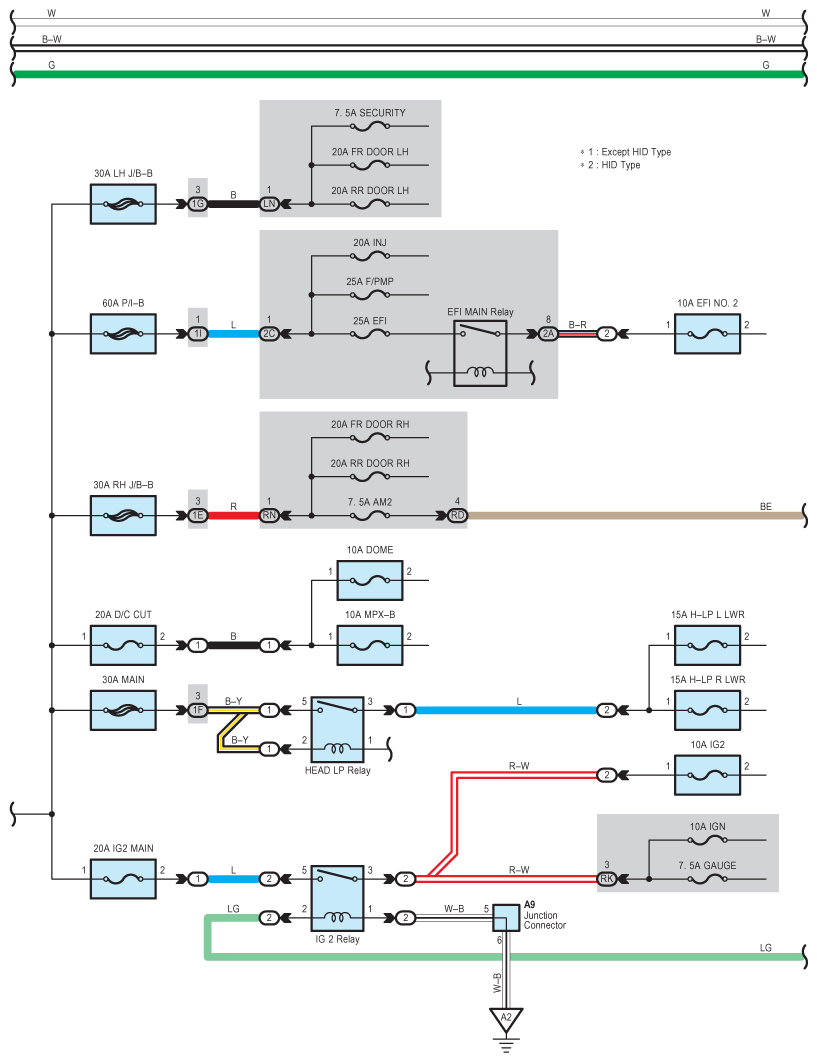

Fig 1: Power Source - Wiring Diagram (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

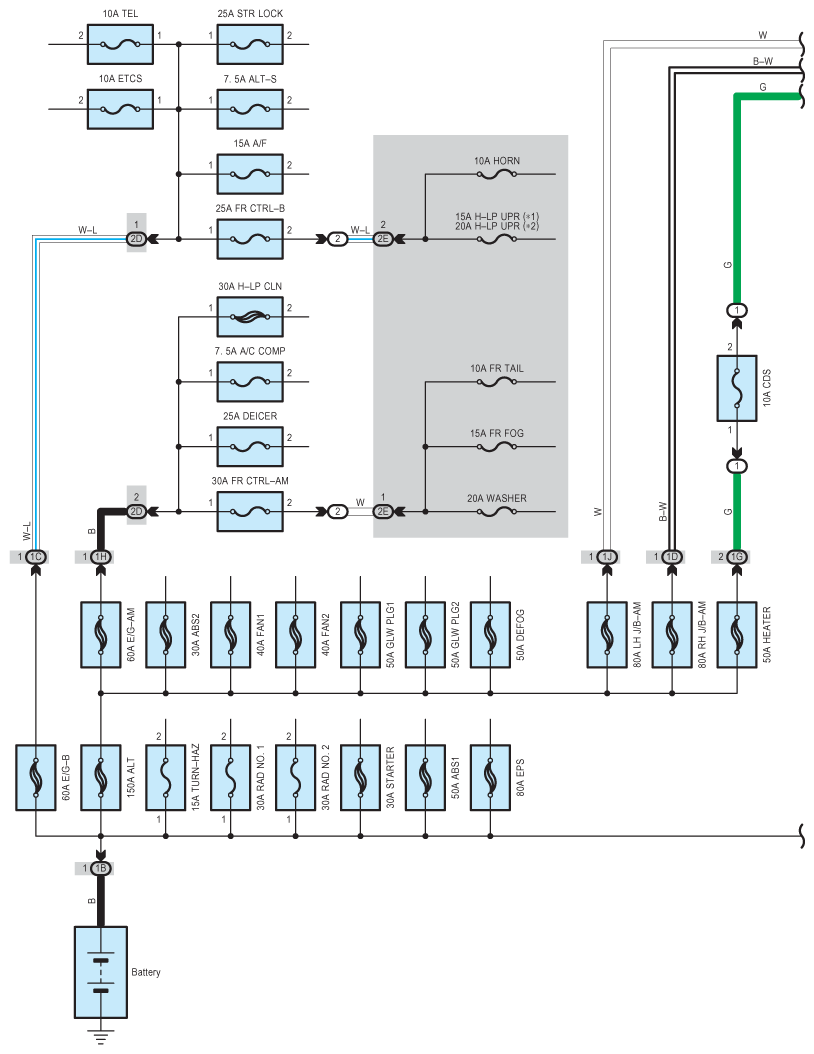

Fig 2: Power Source - Wiring Diagram (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

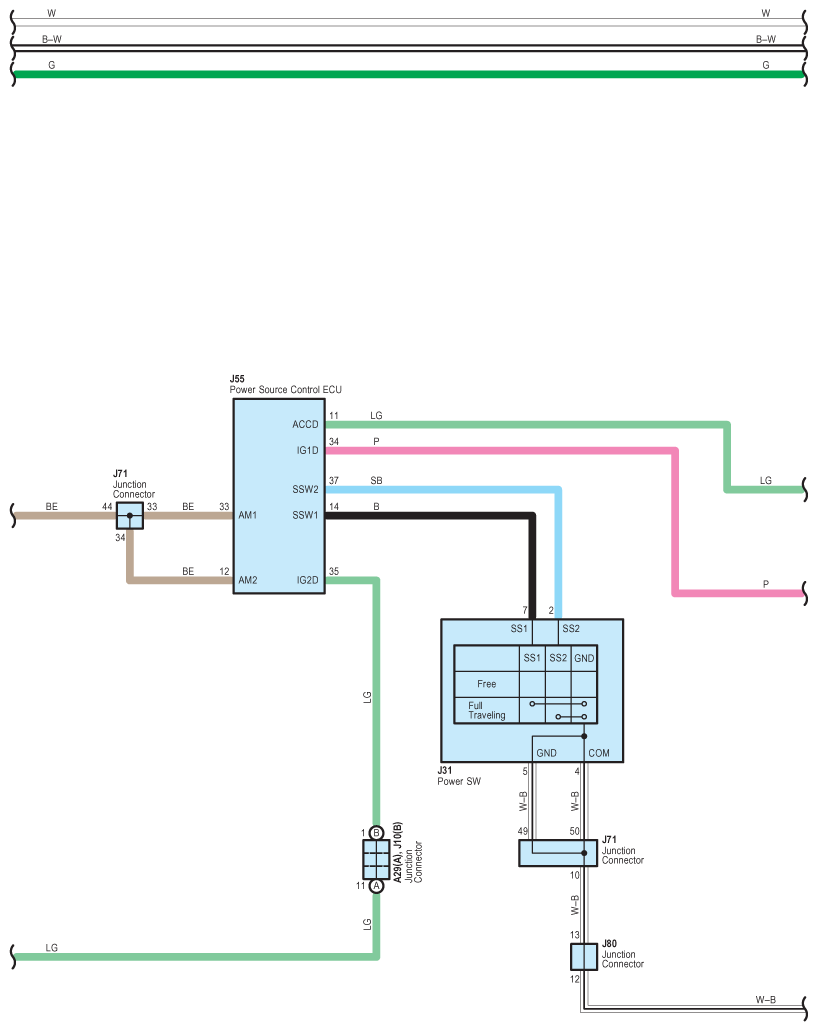

Fig 3: Power Source - Wiring Diagram (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

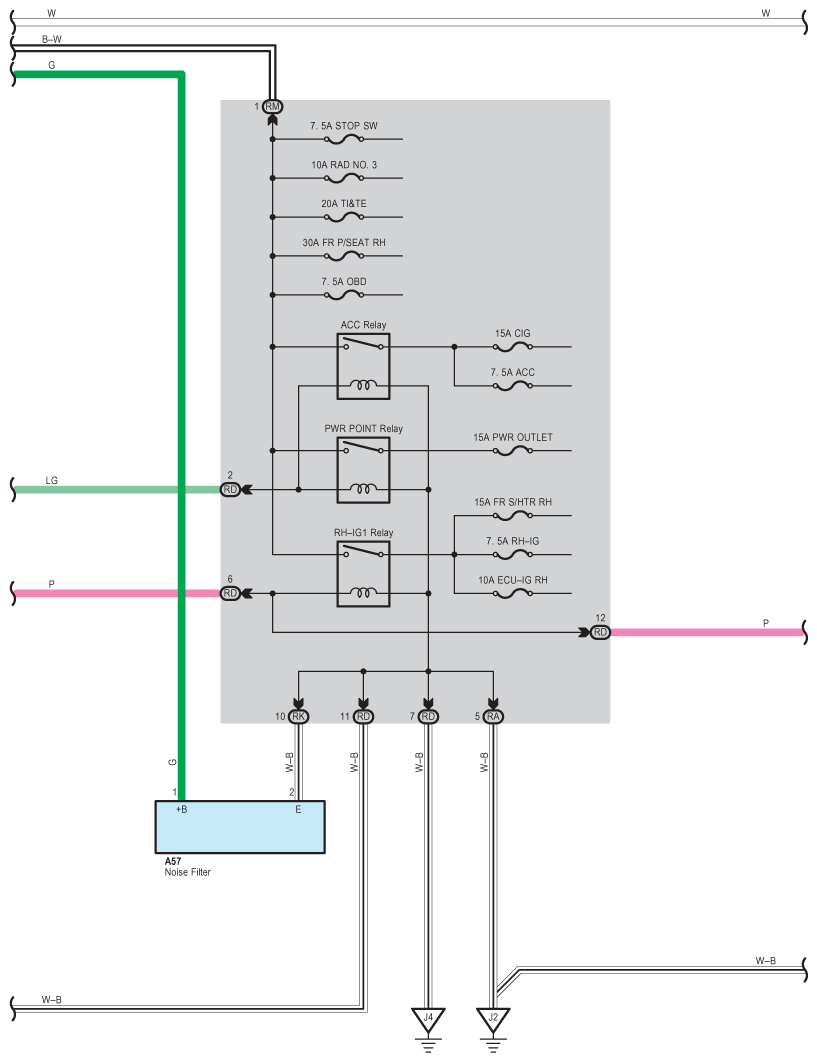

Fig 4: Power Source - Wiring Diagram (4 Of 5)

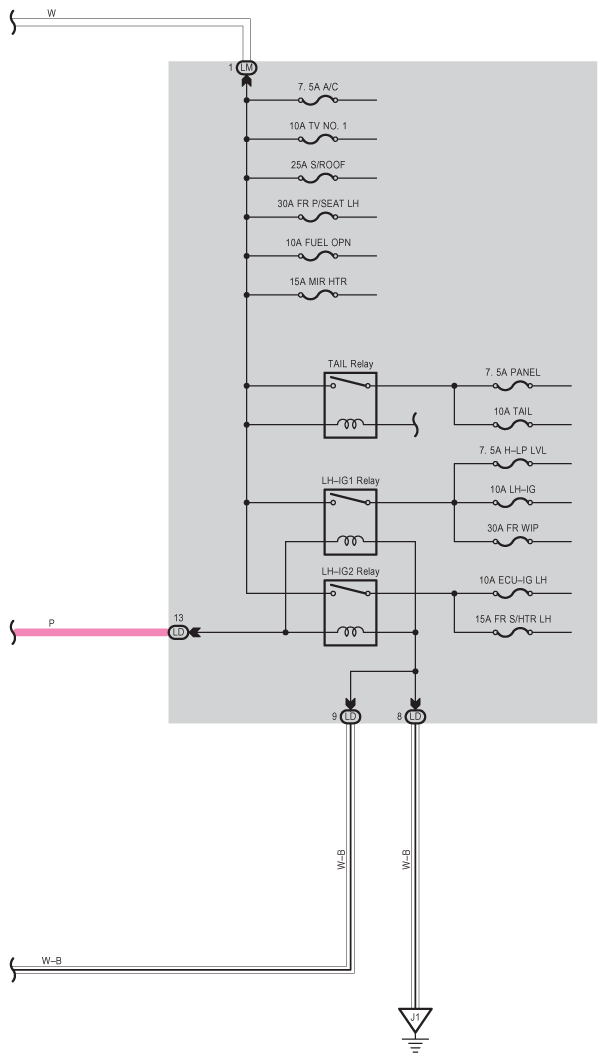

Fig 5: Power Source - Wiring Diagram (5 Of 5)
