Fuel System (Service Information)
›
Cold Start Injector
›
Components
›
Illustration
Cold Start Injector: Components: Illustration

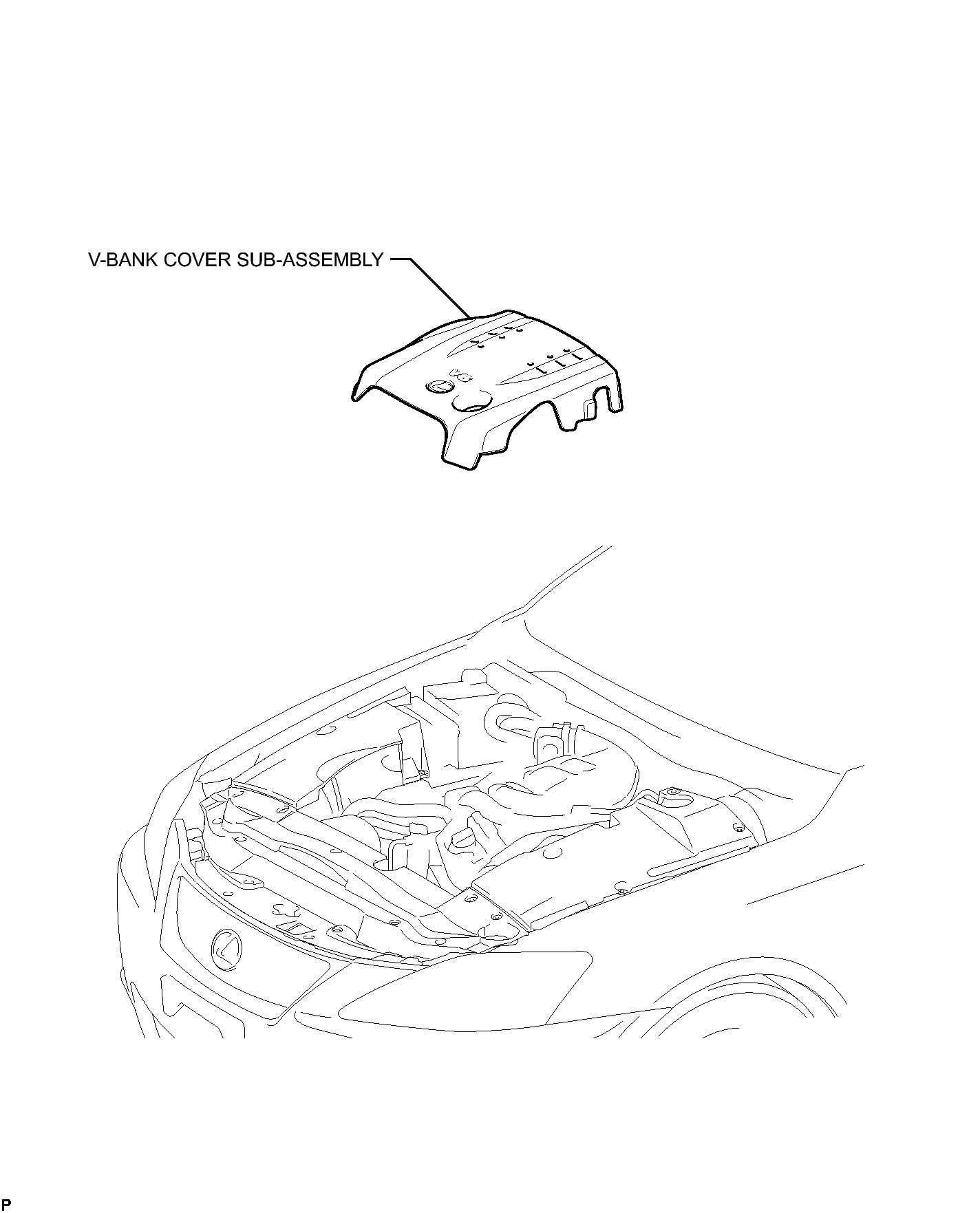

Fig 1: Identifying Cold Start Injector Replacement Components (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

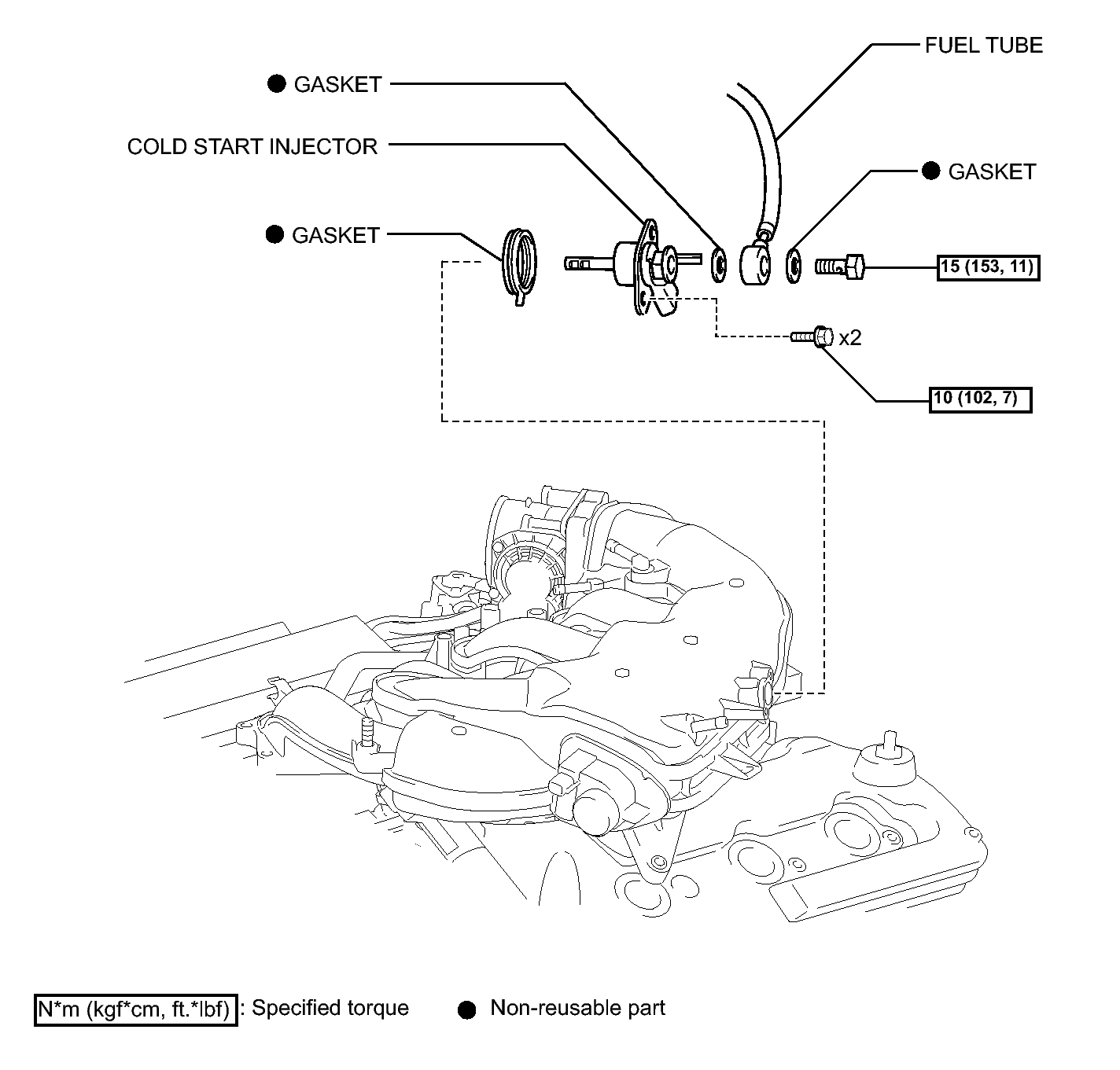

Fig 1: Identifying Cold Start Injector Replacement Components With Torque Specifications (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
