Fuel Sender Gauge Assembly: Components: Illustration

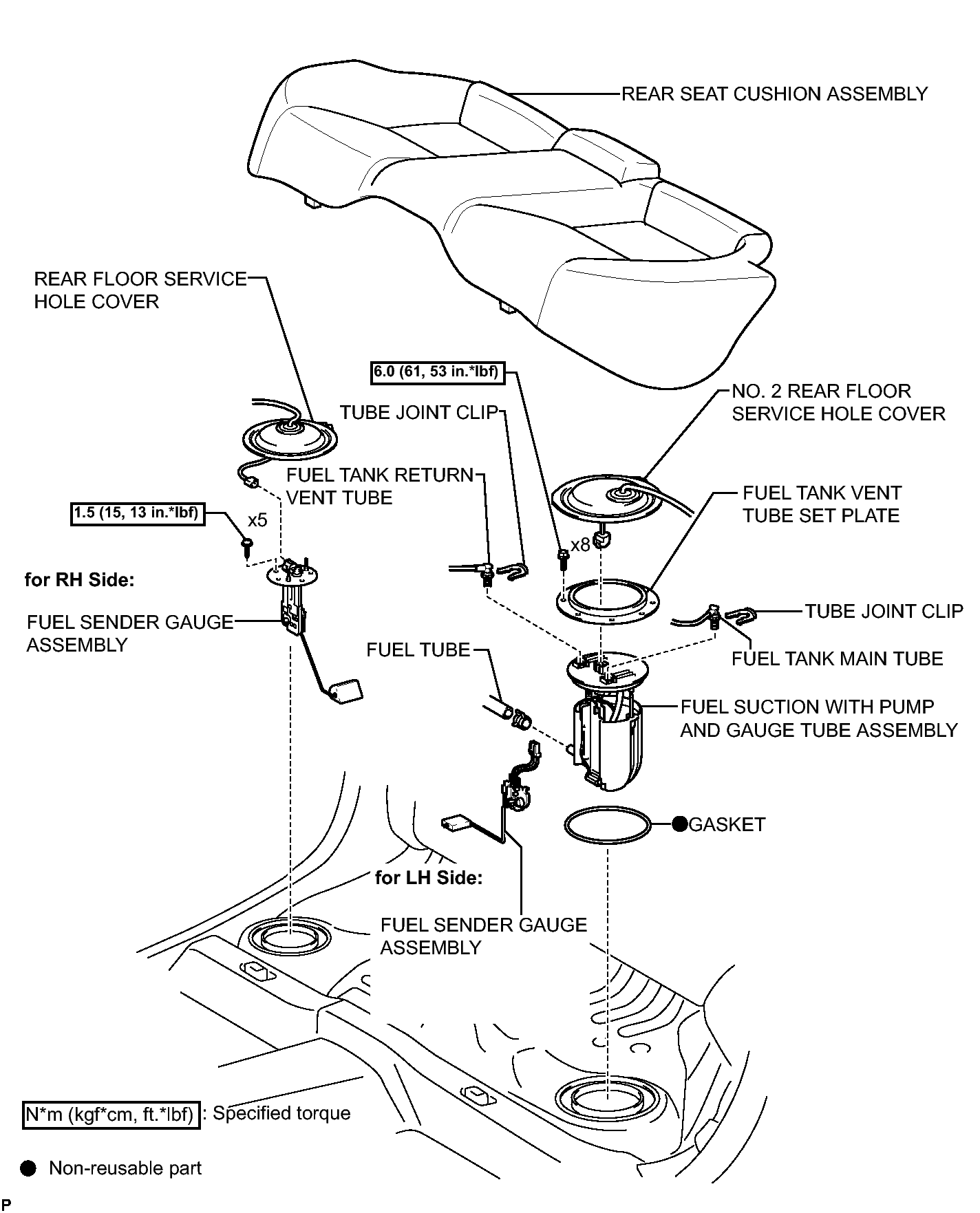

Fig 1: Identifying Fuel Sender Gauge Assembly Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
