Four Wheel Drive Control System (Diagnostics - Introduction)
›
Four Wheel Drive Control System
›
Parts Location
›
Illustration
Parts Location: Illustration

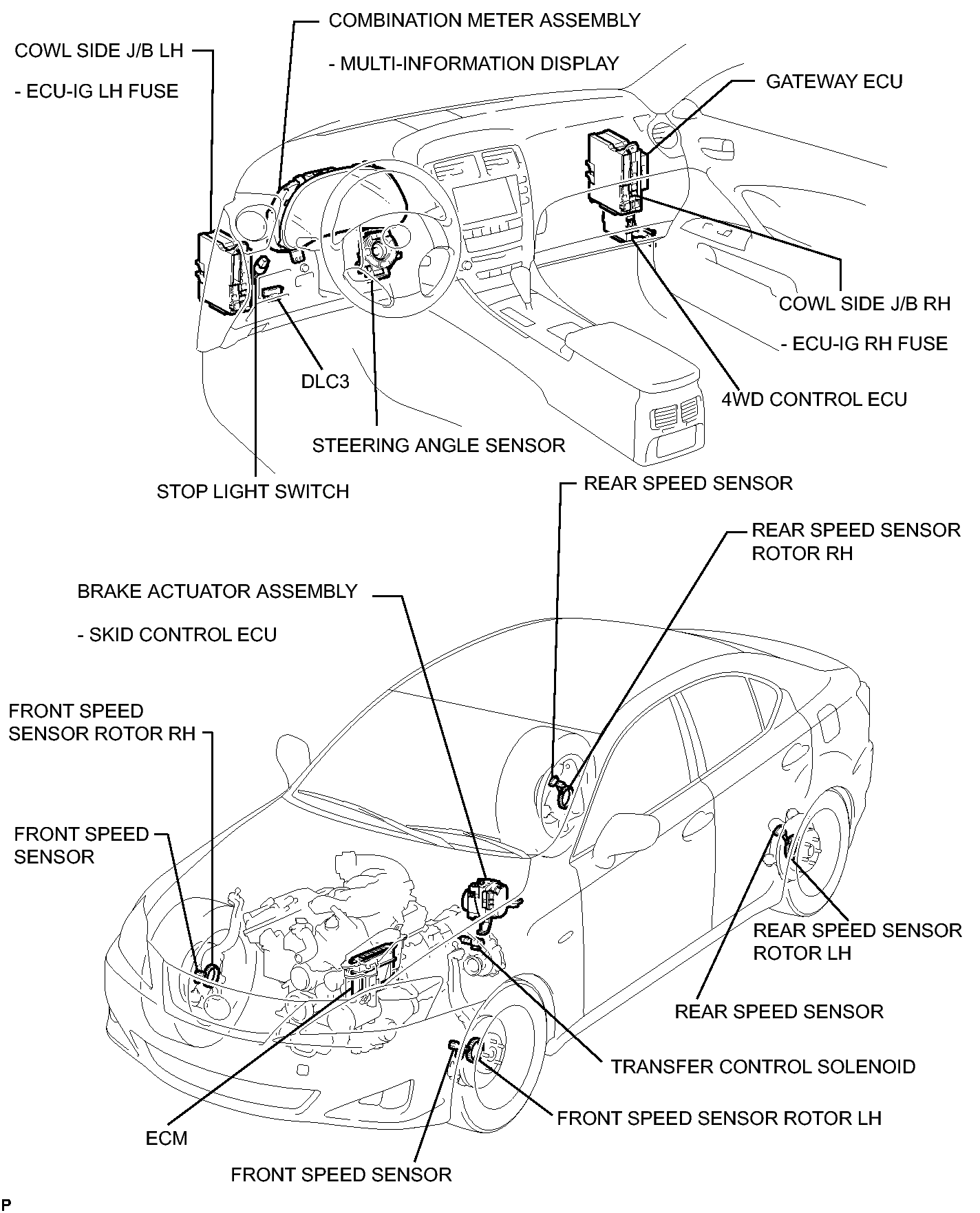

Fig 1: Identifying Four Wheel Drive Control System Components Location
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
