System Diagram

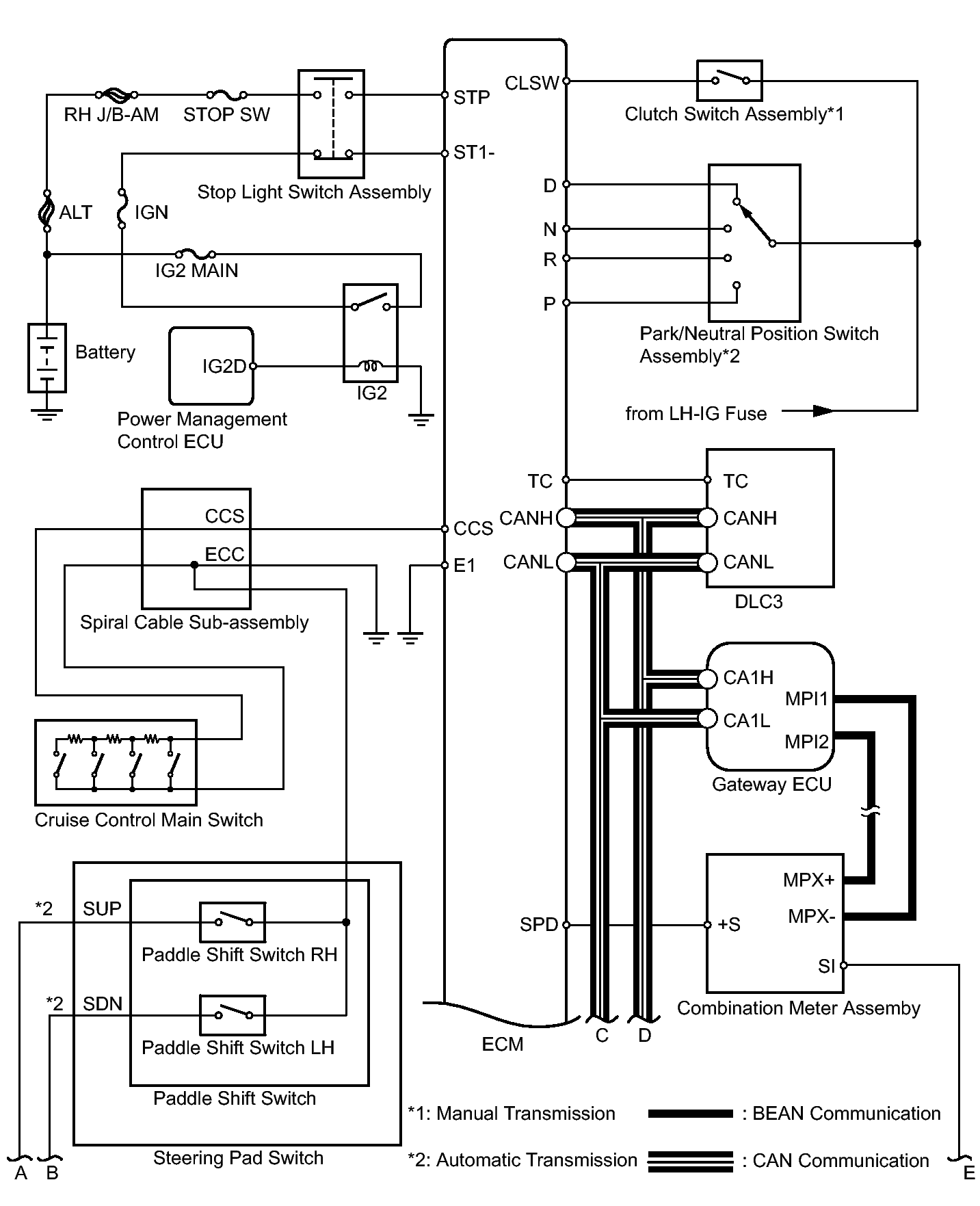

Fig 1: Identifying Cruise Control System Wiring Diagram (1 Of 2)
GTY350030Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

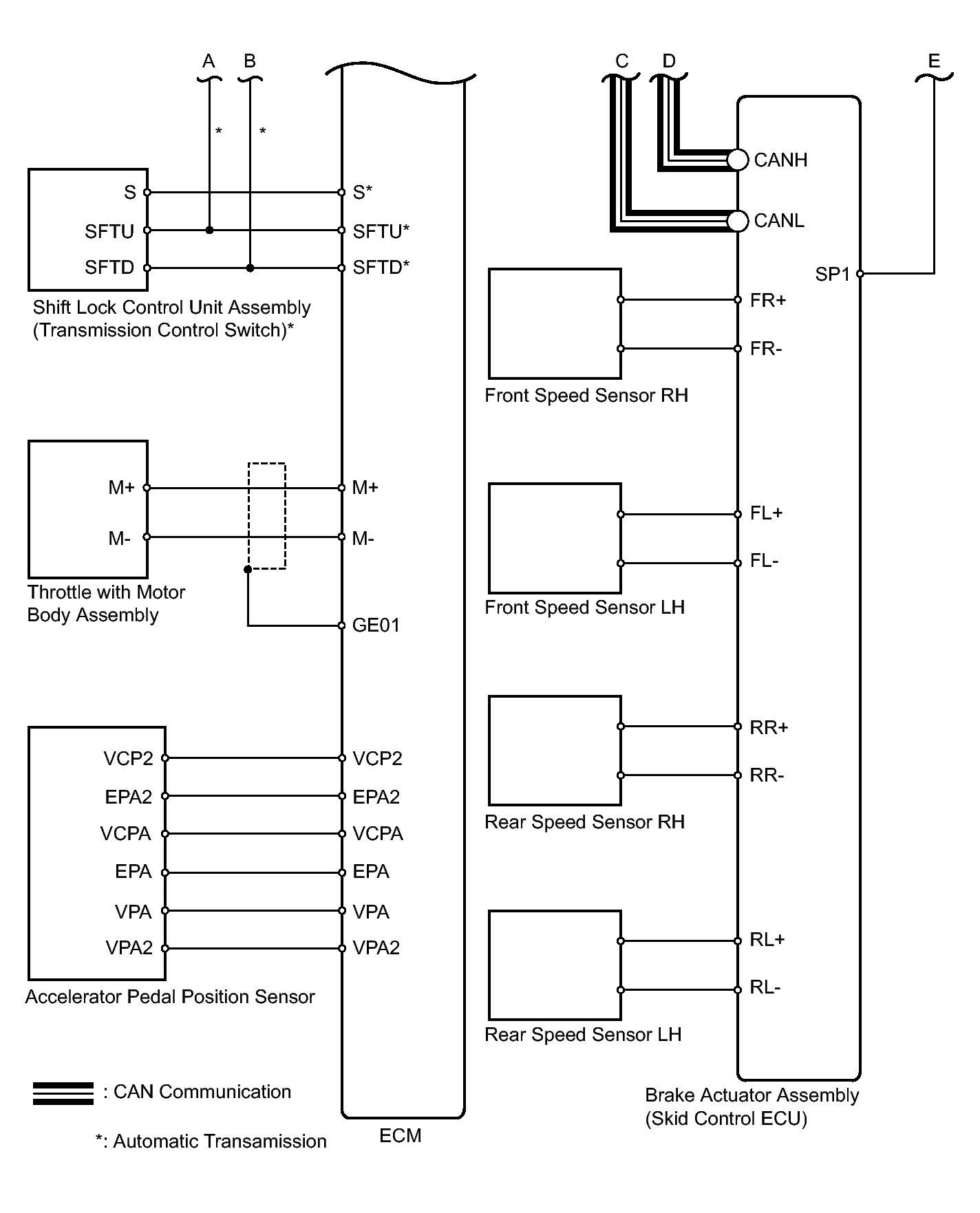

Fig 2: Identifying Cruise Control System Wiring Diagram (2 Of 2)
GTY256886Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION TABLE

Sender Receiver Signal Line
ECM Gateway ECU
  • CRUISE main indicator operation signal
  • Diagnostic signal
 CAN
Gateway ECU Combination Meter ECU
  • CRUISE main indicator operation signal
  • Diagnostic signal
 BEAN
(Instrument Panel Bus)
