Smart Access System With Push-Button Start (For Entry Function) (Diagnostics & Symptom Tests)
›
SMART ACCESS SYSTEM WITH PUSH-BUTTON START (for Entry Function)
›
Symptom Tests
›
Driver Side Door Entry Unlock Function does not Operate
›
Wiring Diagram
Driver Side Door Entry Unlock Function does not Operate: Wiring Diagram

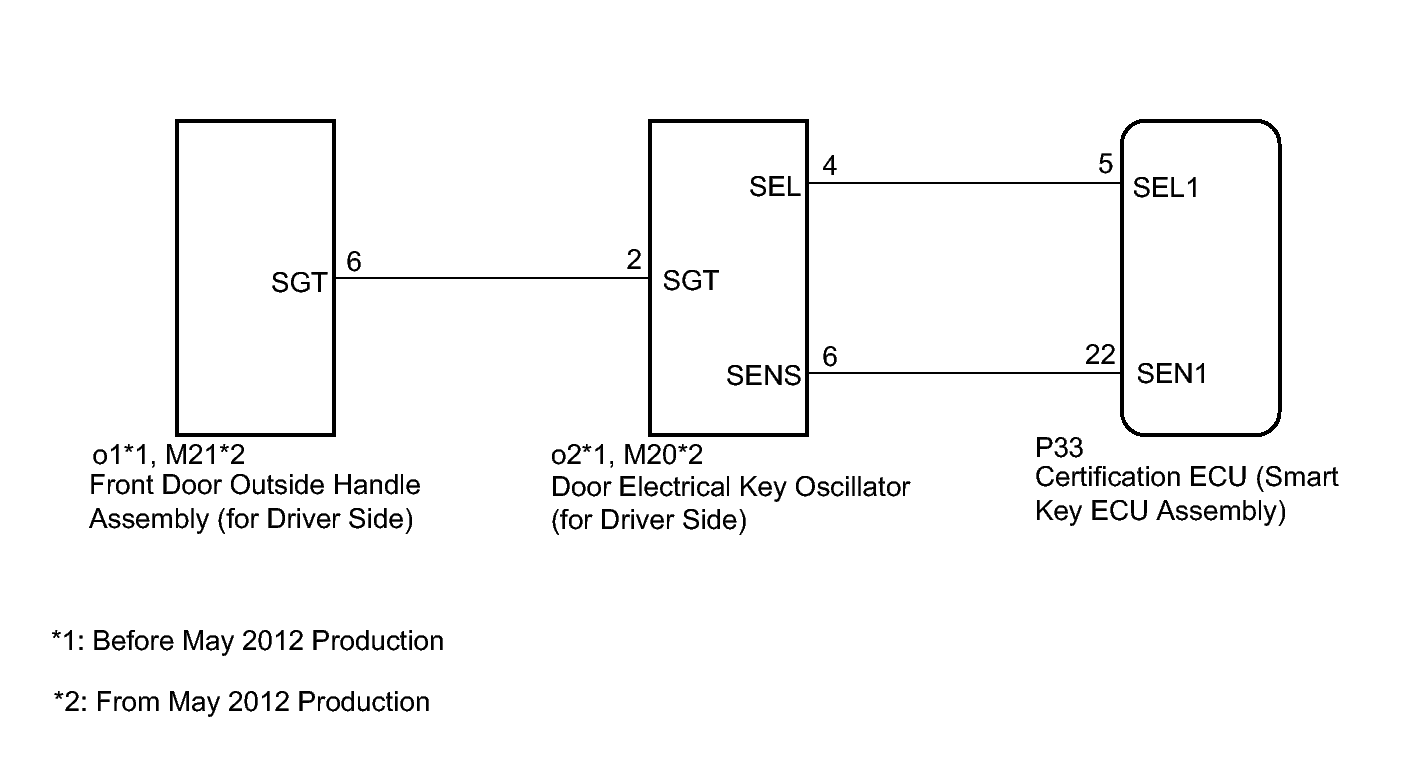

Fig 1: Driver Side Door Entry Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
