Fuel Pump Resistor: Components: Illustration

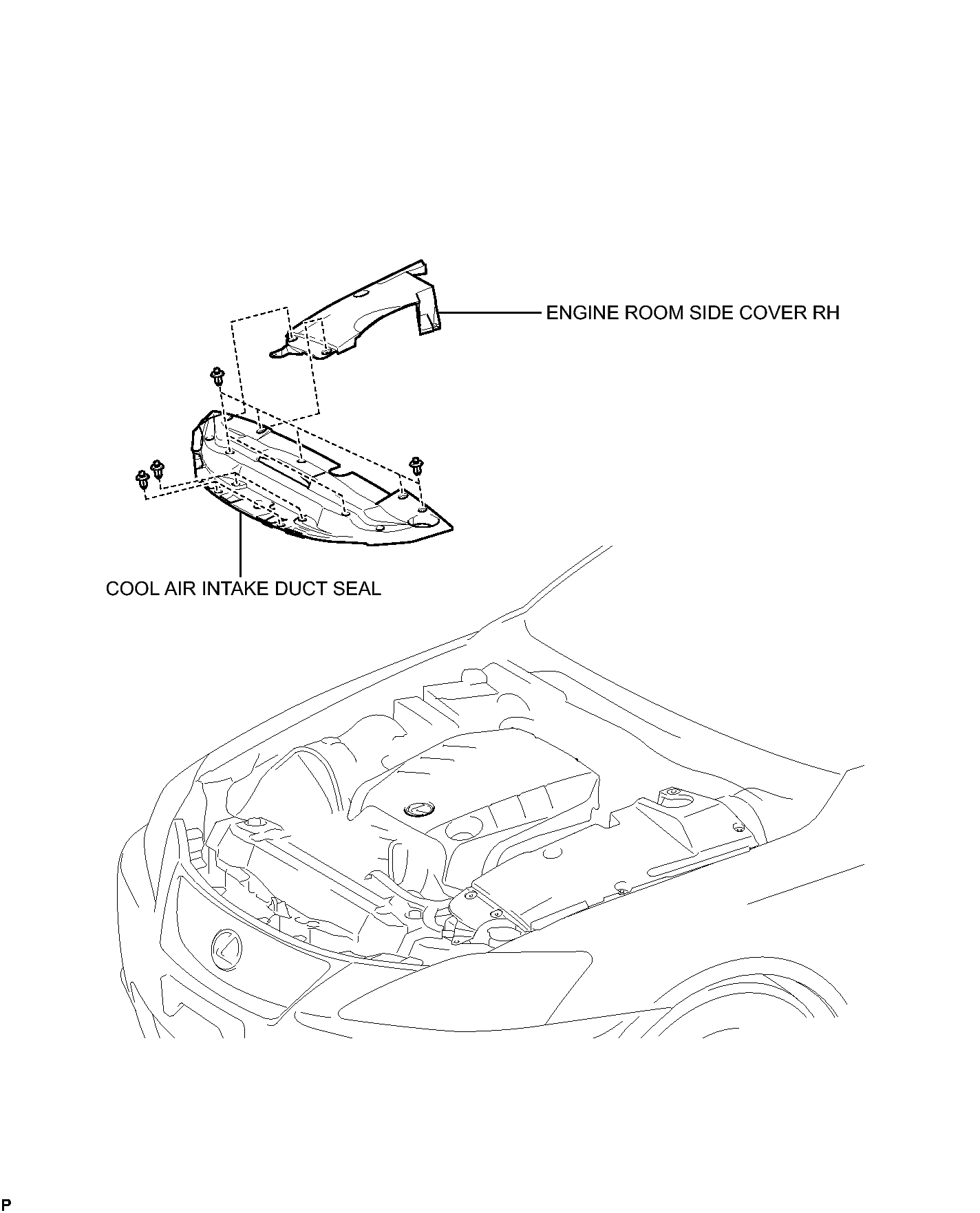

Fig 1: Identifying Fuel Pump Resistor Replacement Components (1 Of 2)
GTY146289Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

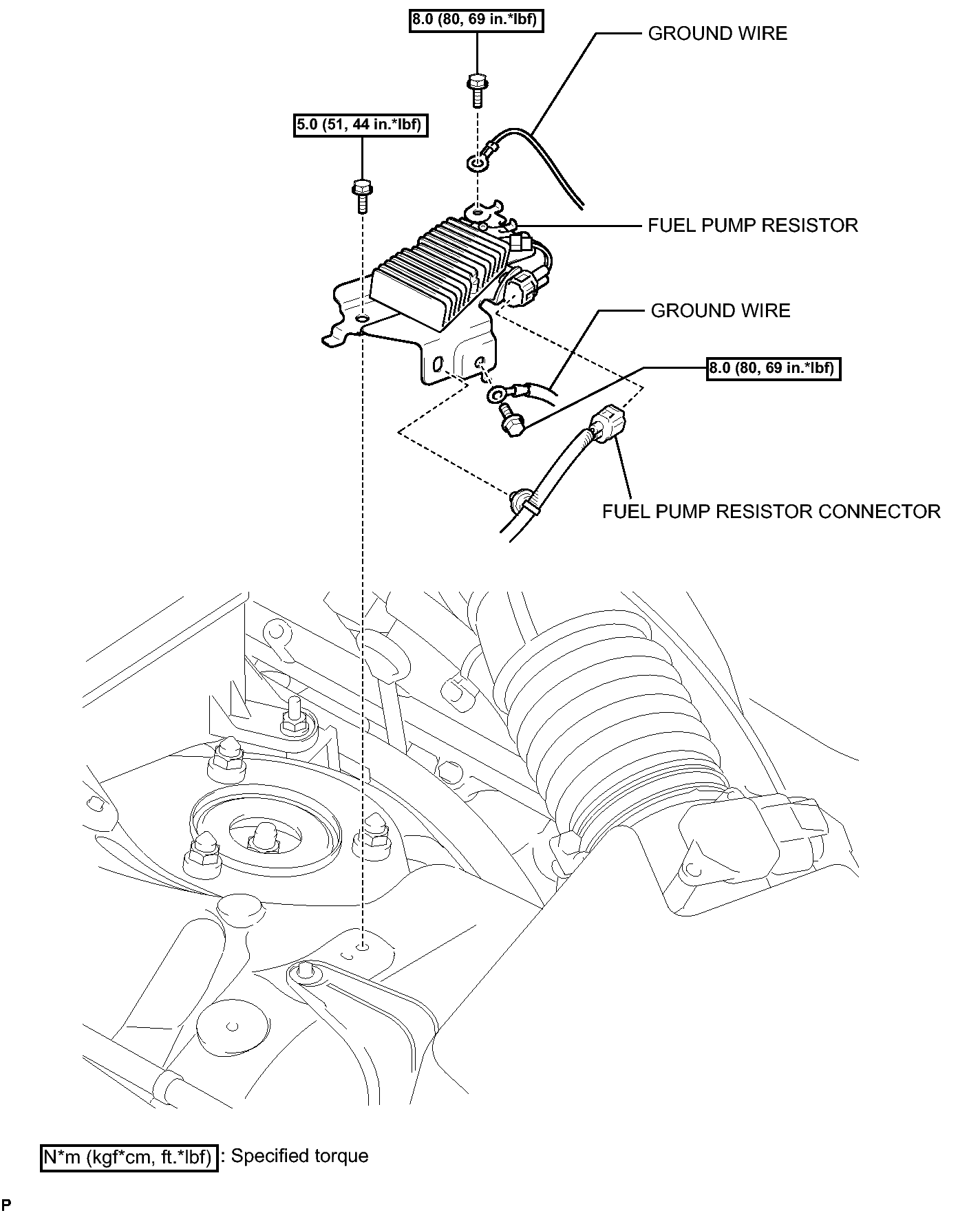

Fig 1: Identifying Fuel Pump Resistor Replacement Components With Torque Specifications (2 Of 2)
GTY146372Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
