Parts Location: Illustration

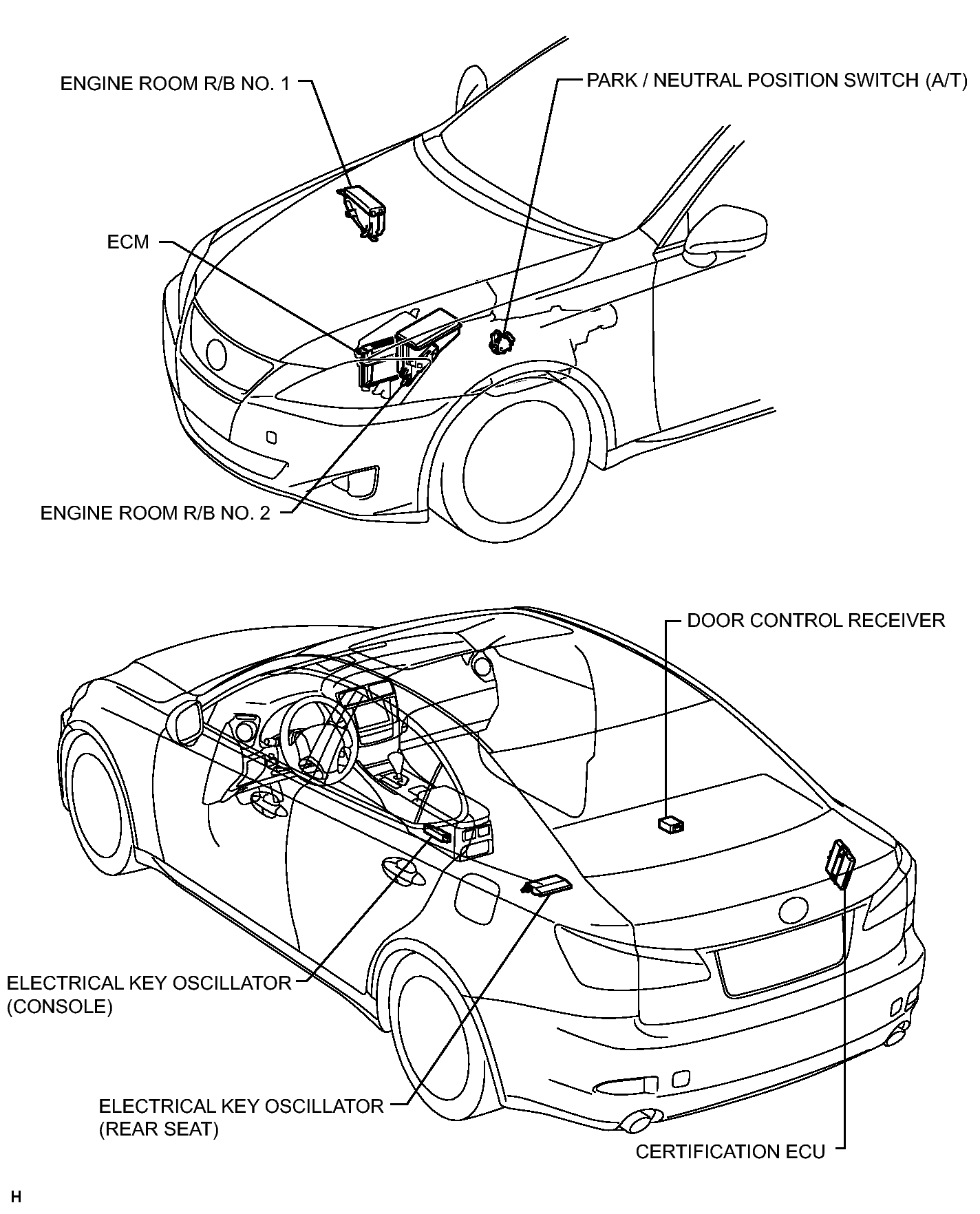

Fig 1: Identifying Smart Access System With Push-Button Start Components Location (1 Of 2)
GTY119601Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

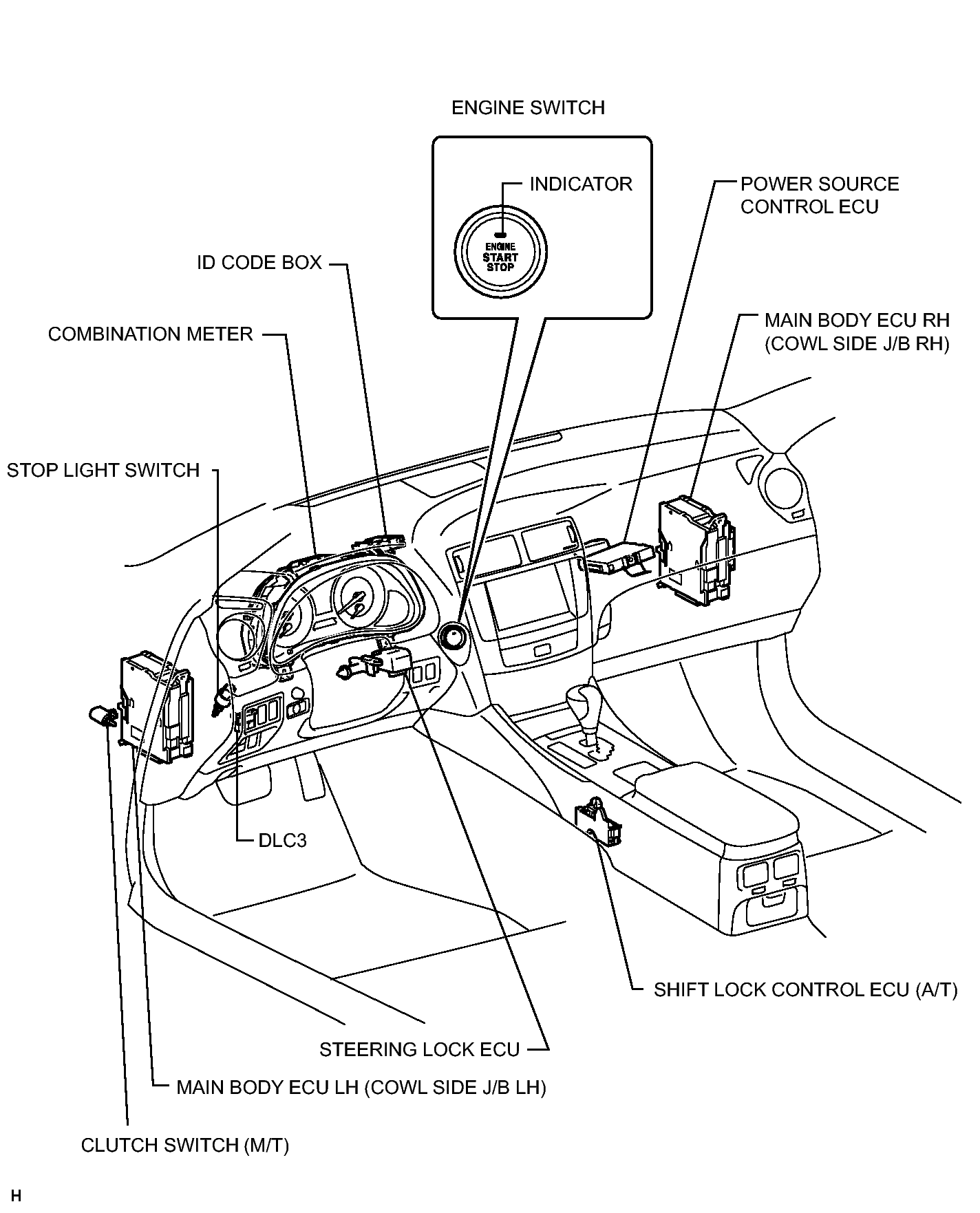

Fig 1: Identifying Smart Access System With Push-Button Start Components Location (2 Of 2)
GTY119602Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
