Ignition (4GR-FSE): Notes

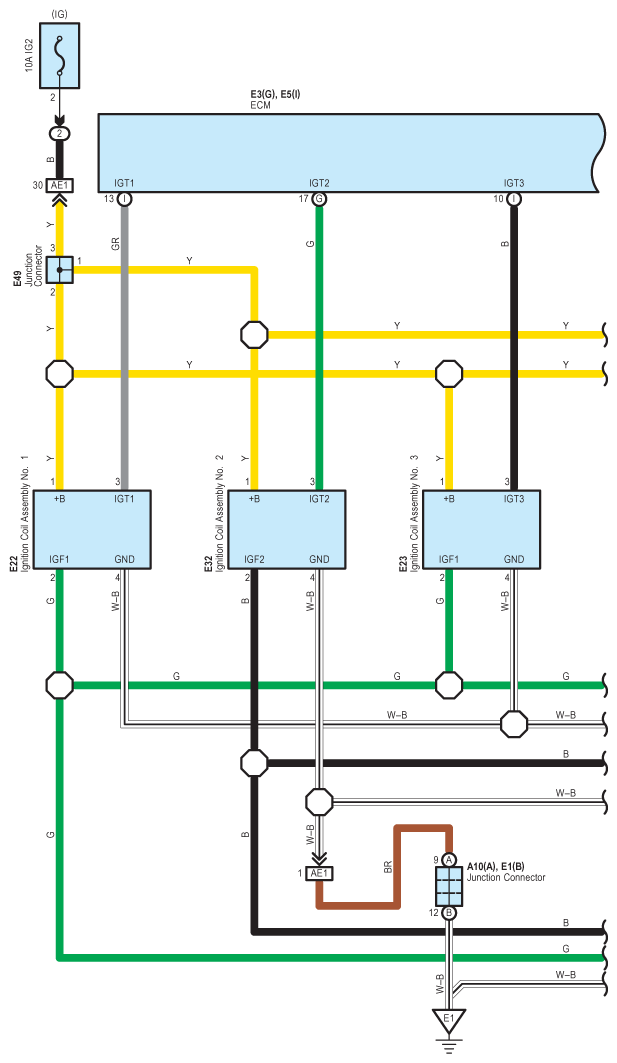

Fig 1: Ignition (4GR-FSE) - Wiring Diagram (1 Of 2)
G08938581Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

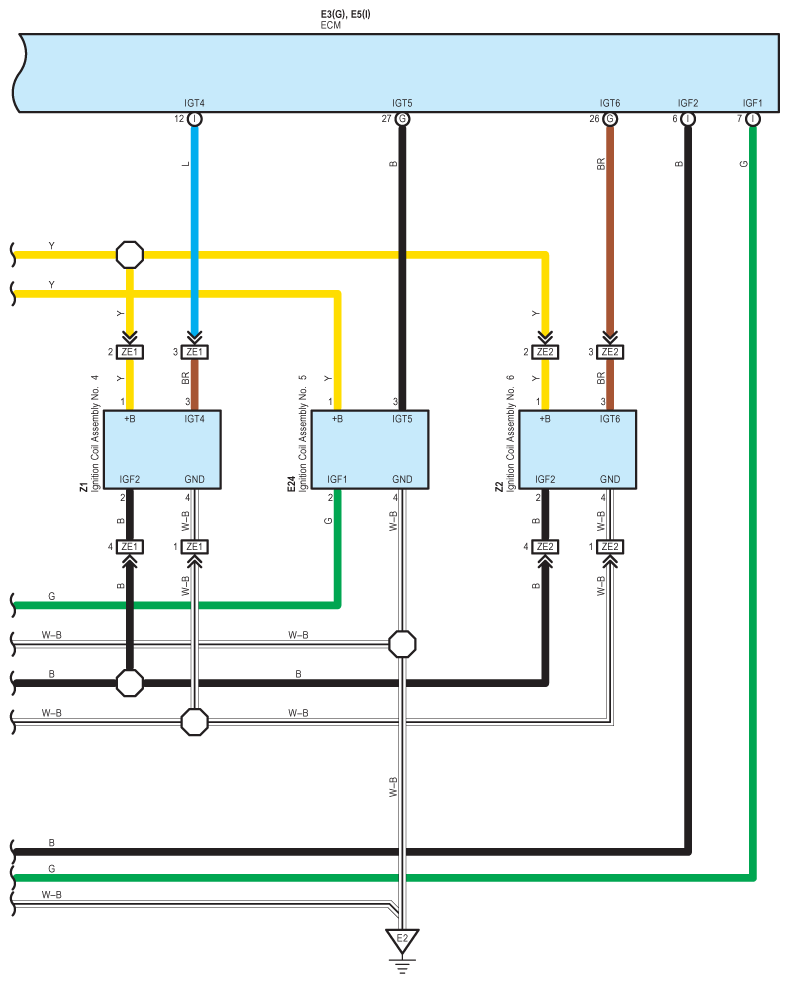

Fig 2: Ignition (4GR-FSE) - Wiring Diagram (2 Of 2)
G08938582Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
