Knock Sensor: Components: Illustration

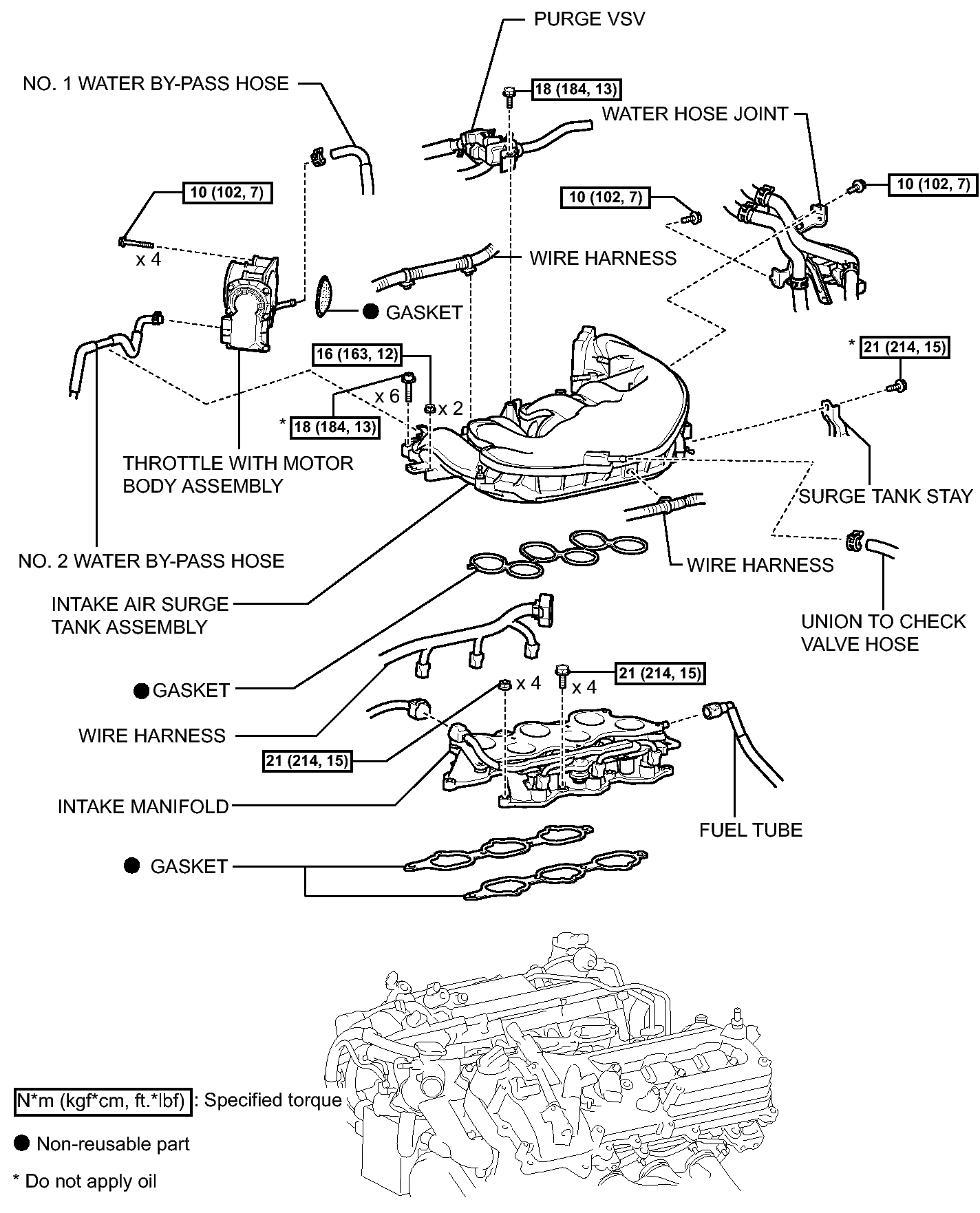

Fig 1: Engine Coolant Temperature Sensor Replacement Components With Torque Specifications (1 Of 2)
GTY255910Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Knock Sensor Replacement Components With Torque Specifications (2 Of 4)
GTY262059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Knock Sensor Replacement Components With Torque Specifications (3 Of 4)
GTY255296Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

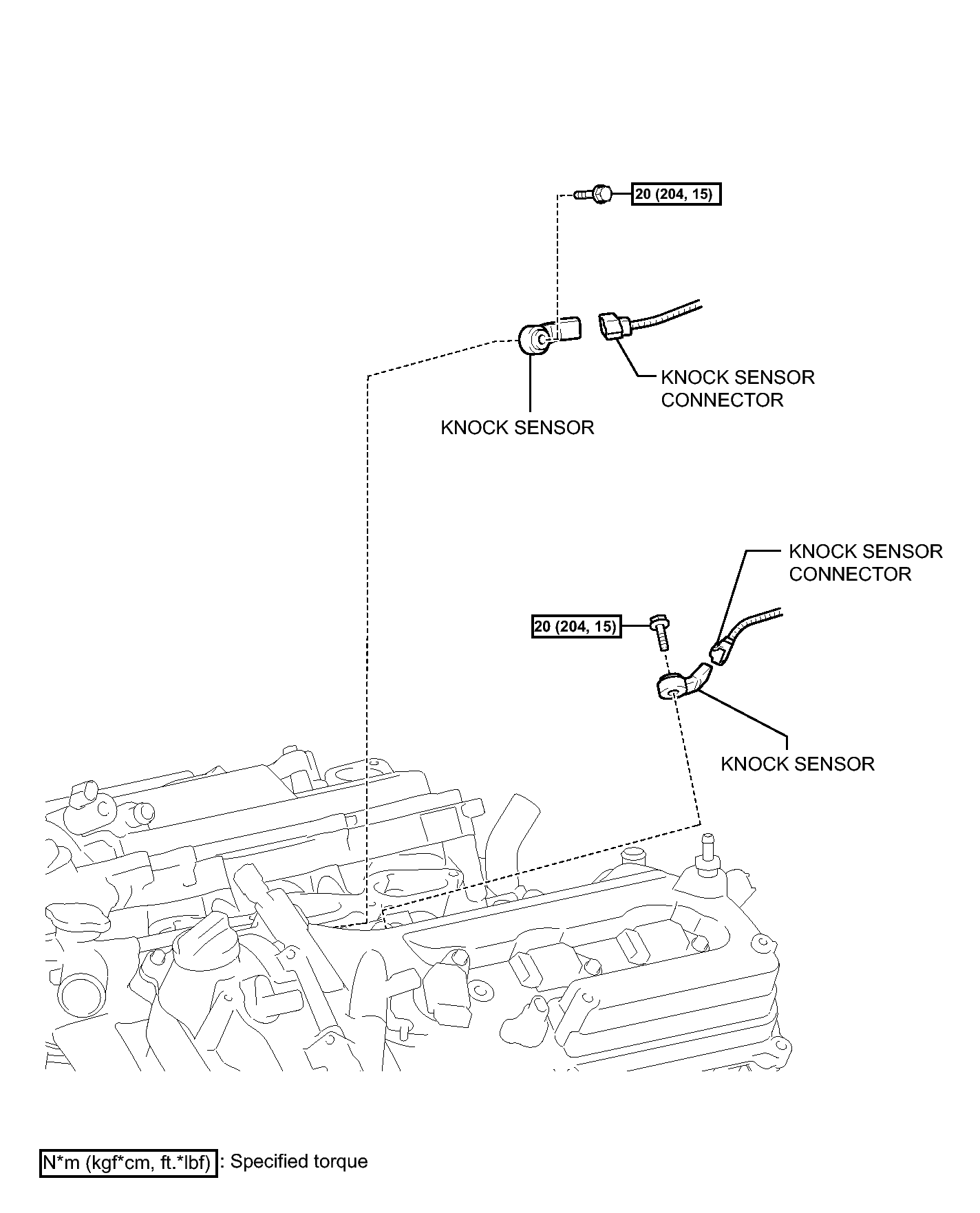

Fig 1: Identifying Knock Sensor Replacement Components With Torque Specifications (4 Of 4)
GTY254230Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
