Seat Memory Switch: Components: Illustration

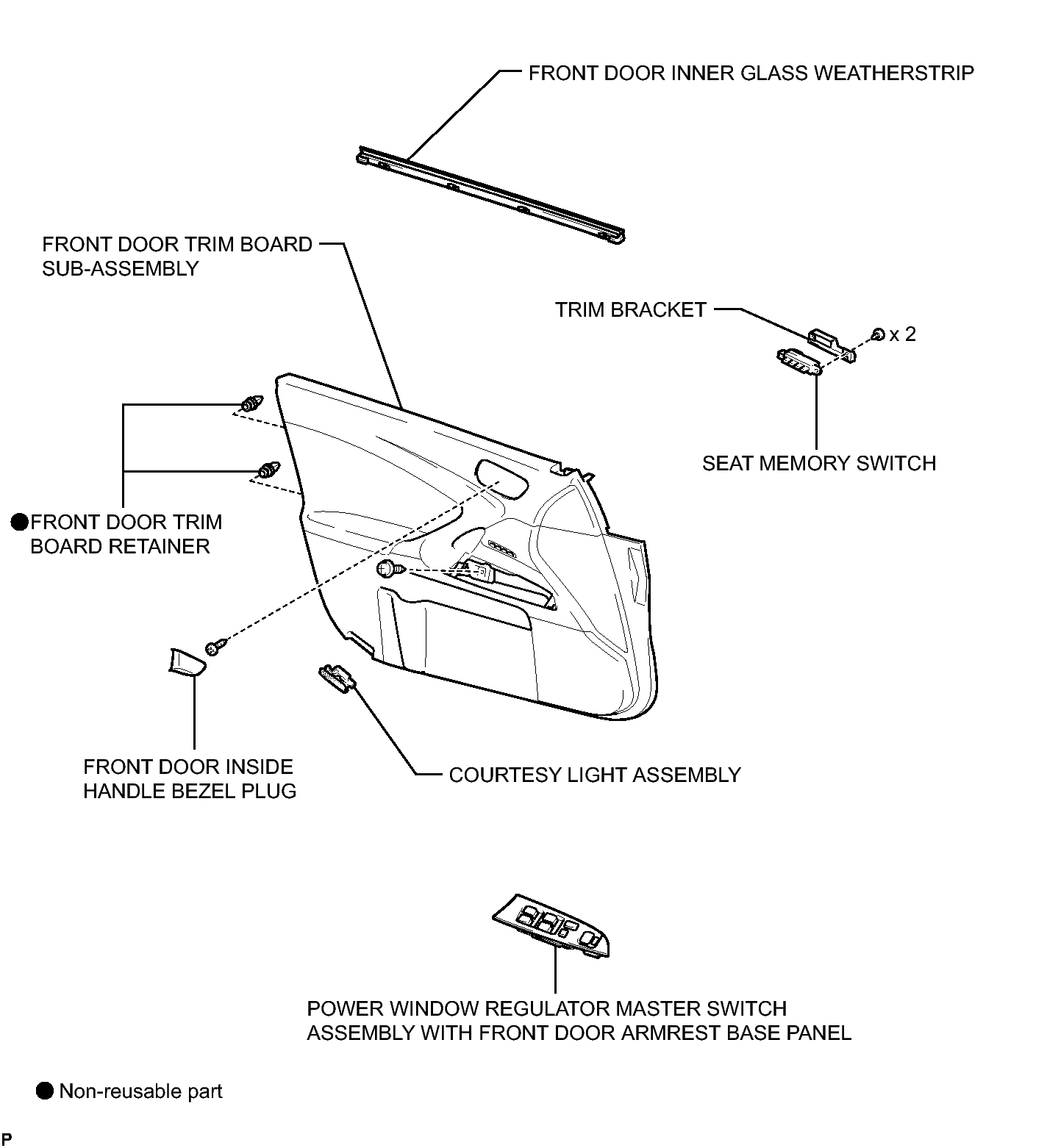

Fig 1: Identifying Seat Memory Switch Replacement Components
GTY122409Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
