Driver Side Power Window does not Operate with Power Window Master Switch: Wiring Diagram

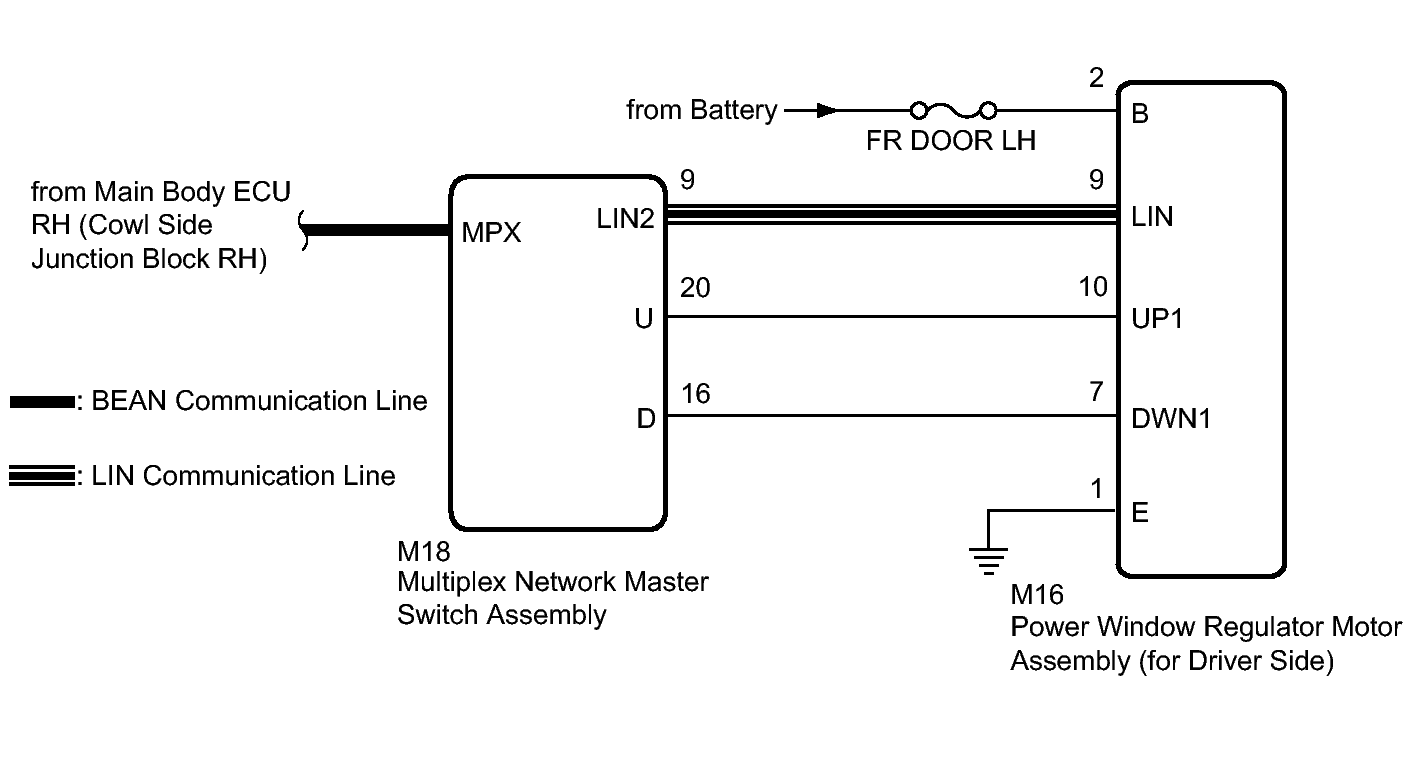

Fig 1: Driver Side Power Window Regulator Motor & Multiplex Network Master Switch -- Wiring Diagram
GTY128576Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
