Rear Power Window RH does not Operate with Rear Power Window Switch RH: Wiring Diagram

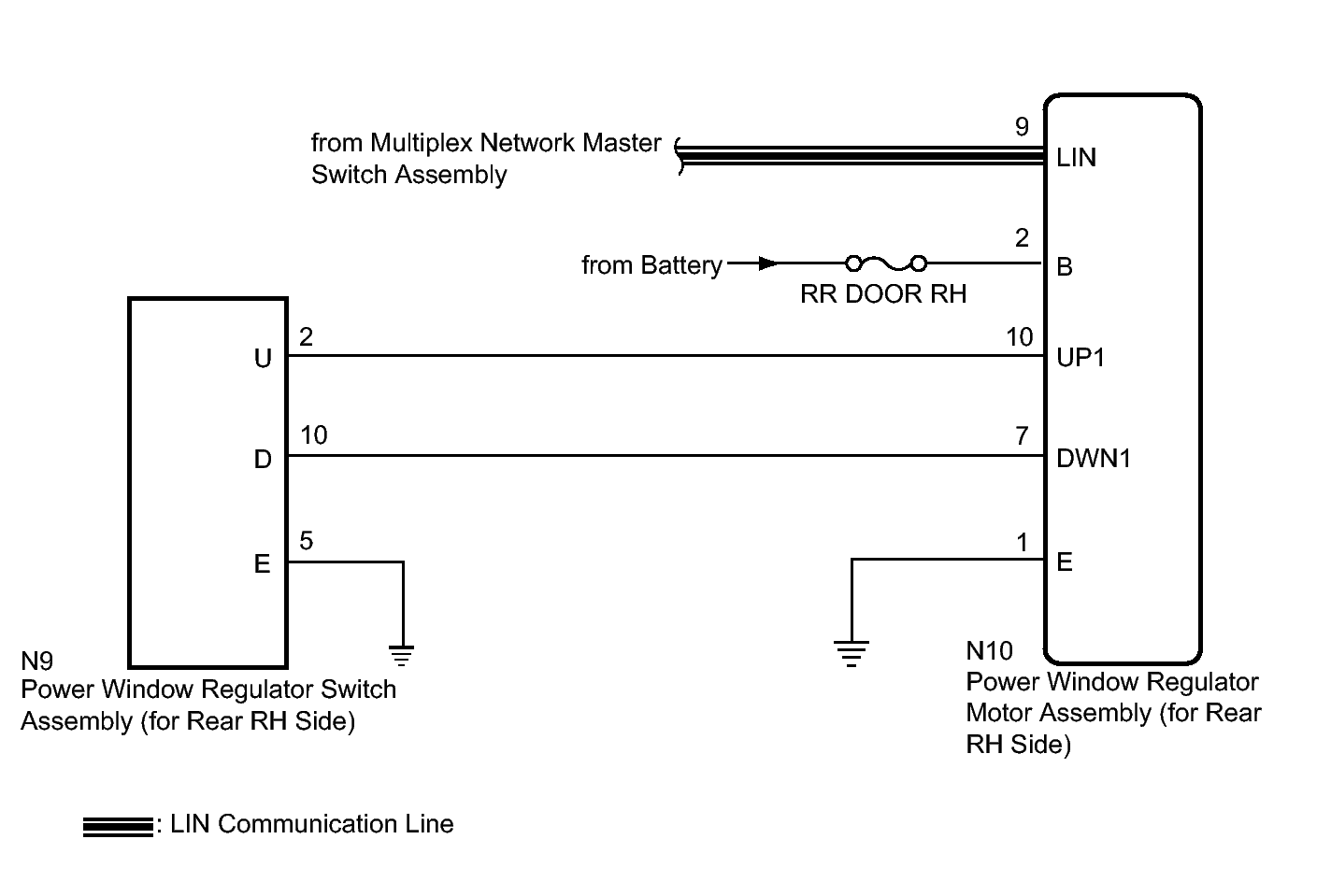

Fig 1: View Of Rear RH Side Power Window Regulator Motor And Rear RH Side Power Window Regulator Switch Wiring Diagram
GTY134280Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
