Electric Tension Reducer: Notes

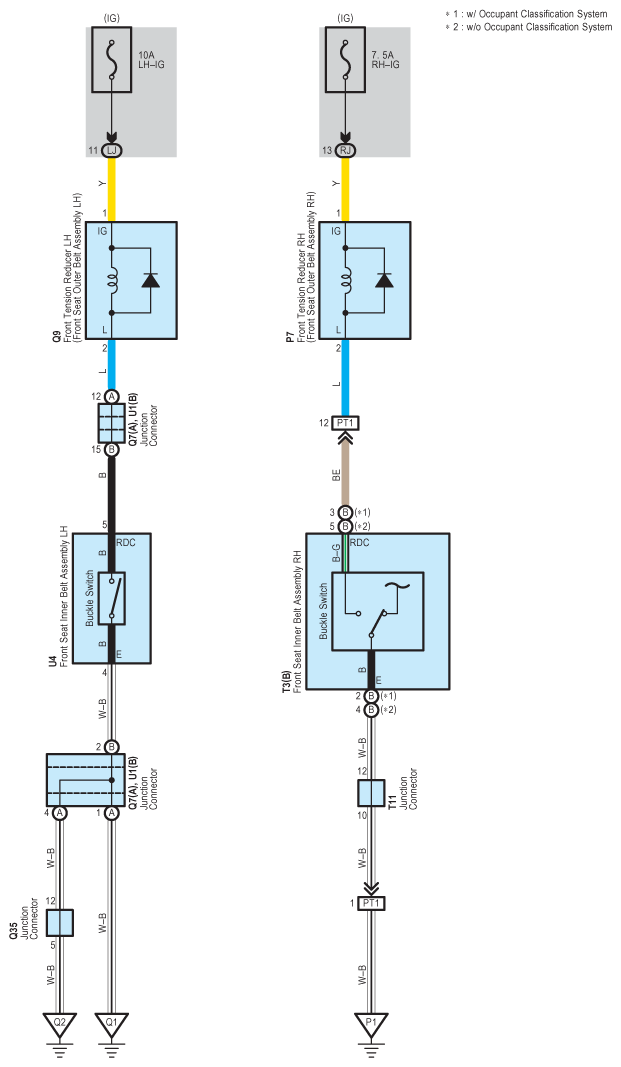

Fig 1: Electric Tension Reducer - Wiring Diagram

G08939811

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
