Engine Lubrication System (Service Information)
›
Engine Oil Cooler
›
Components
›
Illustration
Engine Oil Cooler: Components: Illustration

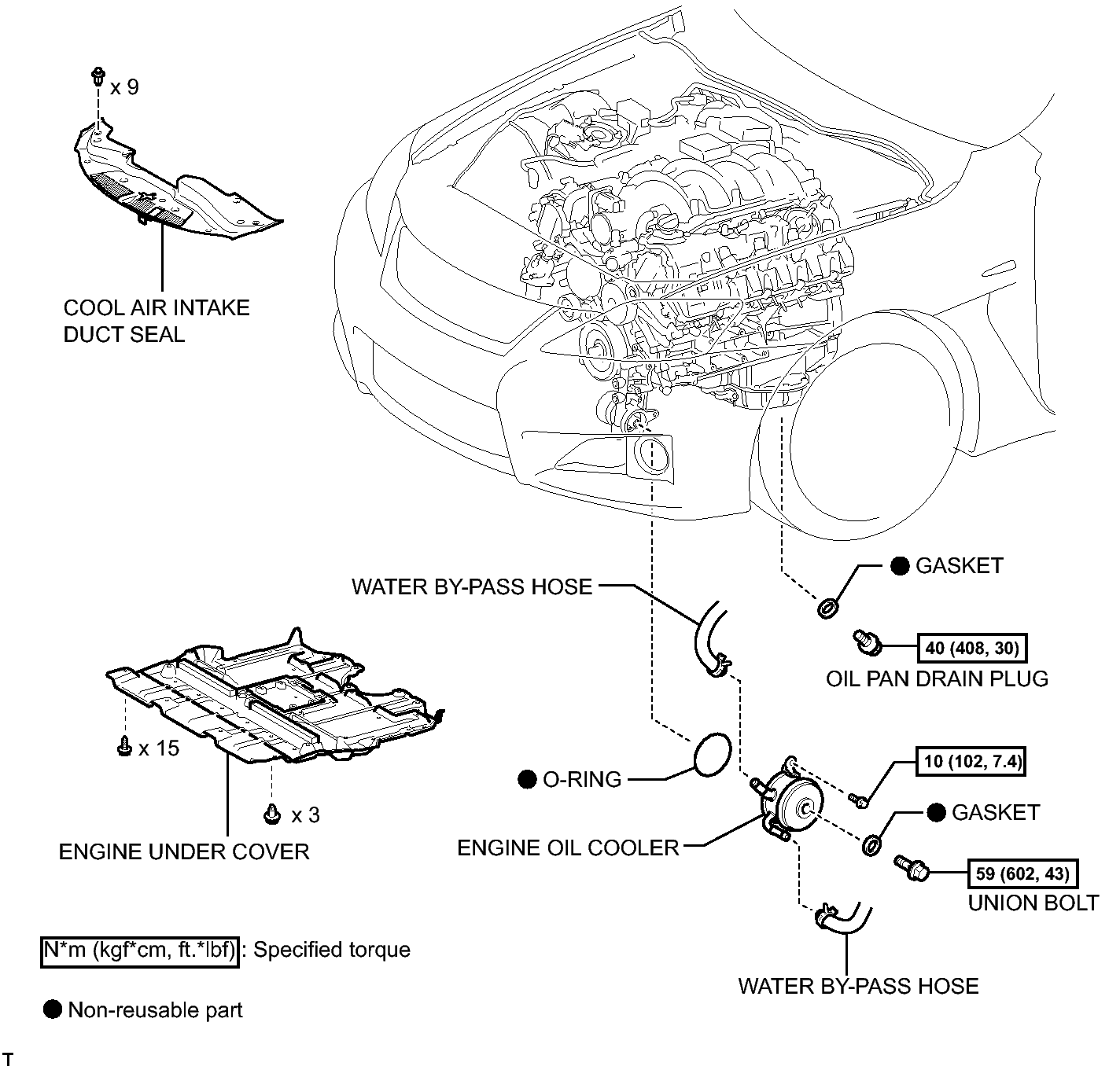

Fig 1: Identifying Engine Oil Cooler Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
