FUEL PRESSURE PULSATION DAMPER (for Direct Injection): Components: Illustration

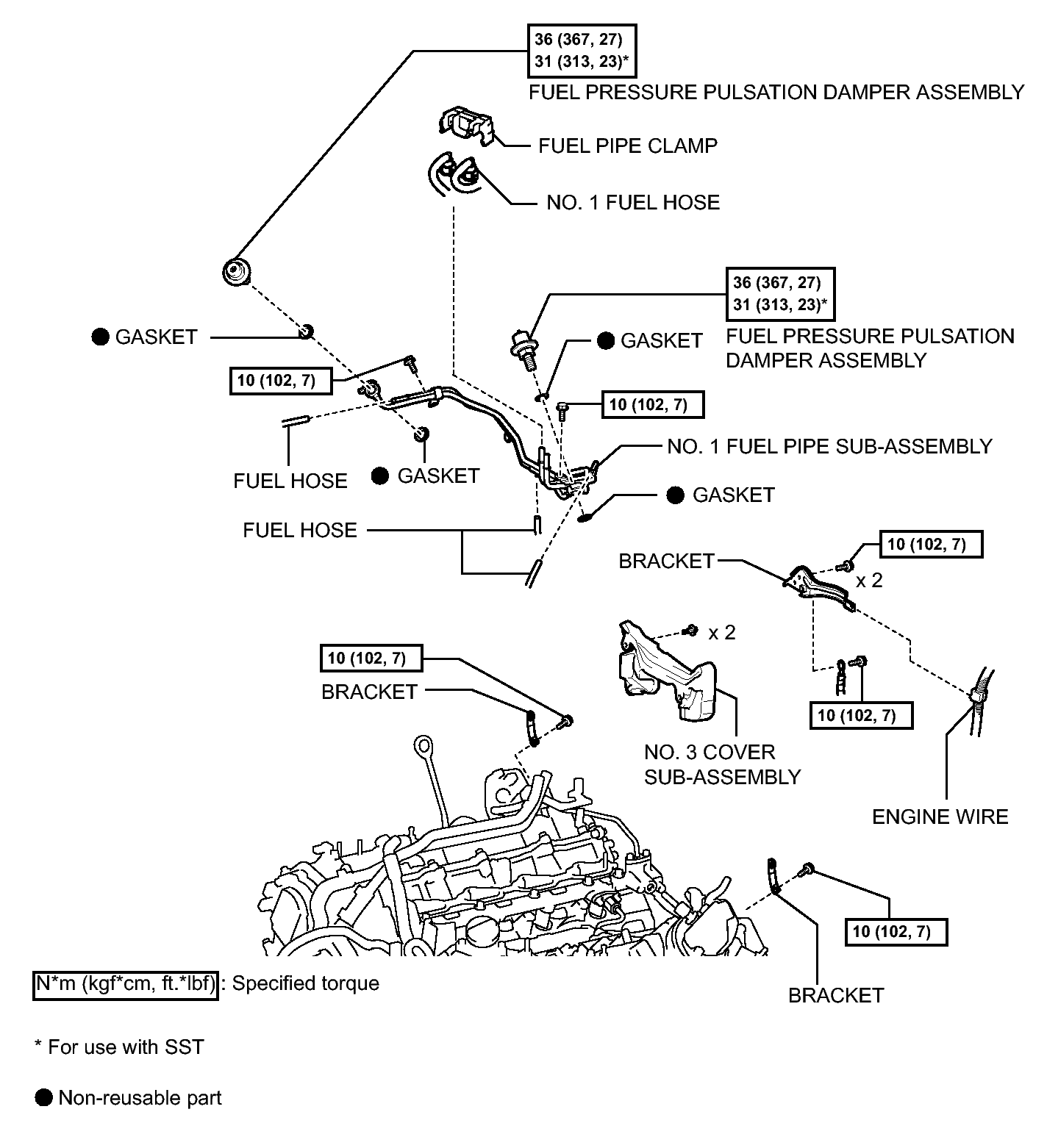

Fig 1: Identifying Fuel Pressure Pulsation Damper (For Direct Injection) Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Fuel Pressure Pulsation Damper (For Direct Injection) Replacement Components With Torque Specifications (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
