Home › Lexus › 2012 › IS F › Repair and Diagnosis › Transmission › Automatic Trans › Automatic Transmission (Service Information) › Pattern Select Switch › Components › Illustration

Pattern Select Switch: Components: Illustration

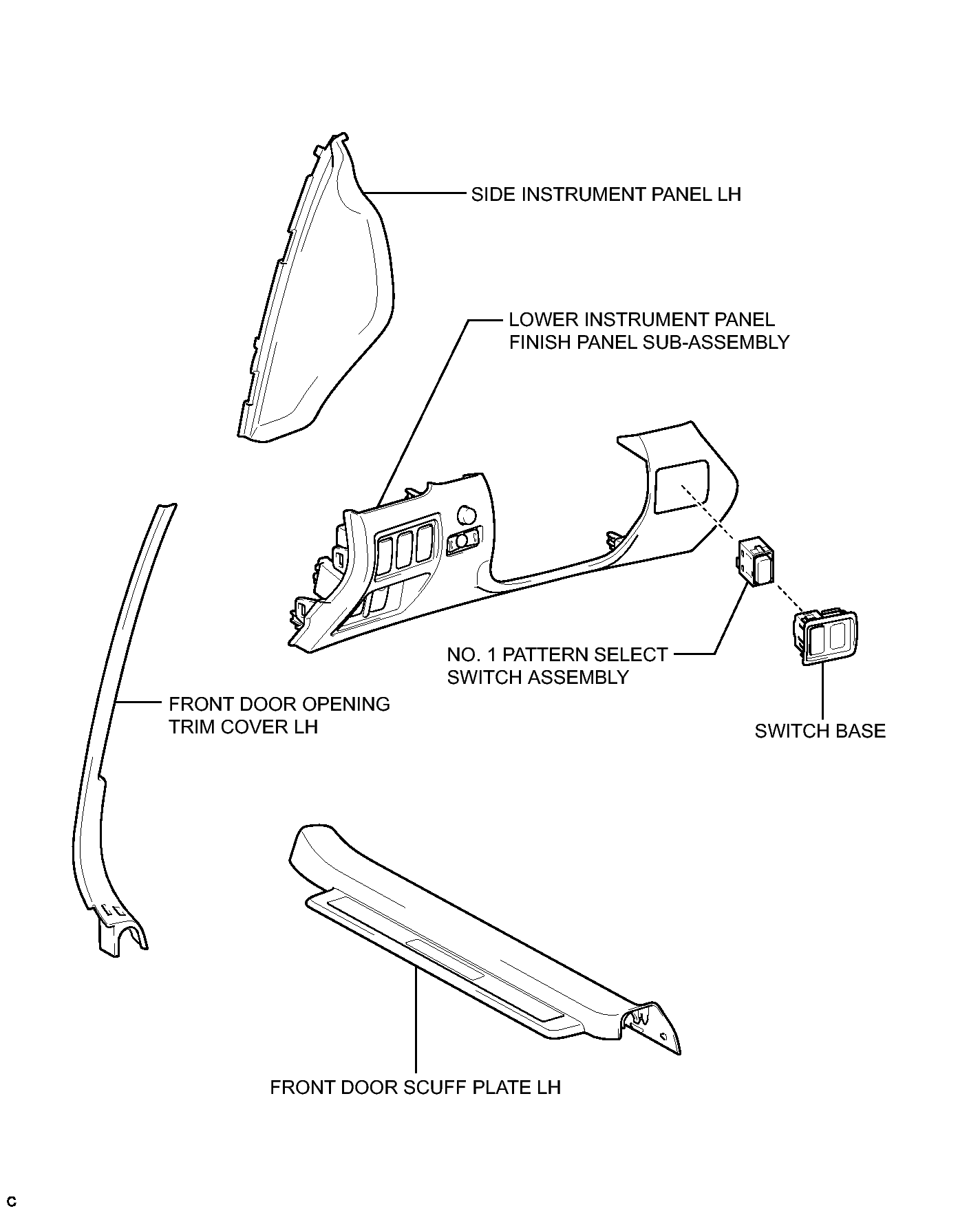

Fig 1: Identifying Pattern Select Switch Replacement Components
GTY395327Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
