DTC B2312: Power Window Switch Malfunction: Wiring Diagram

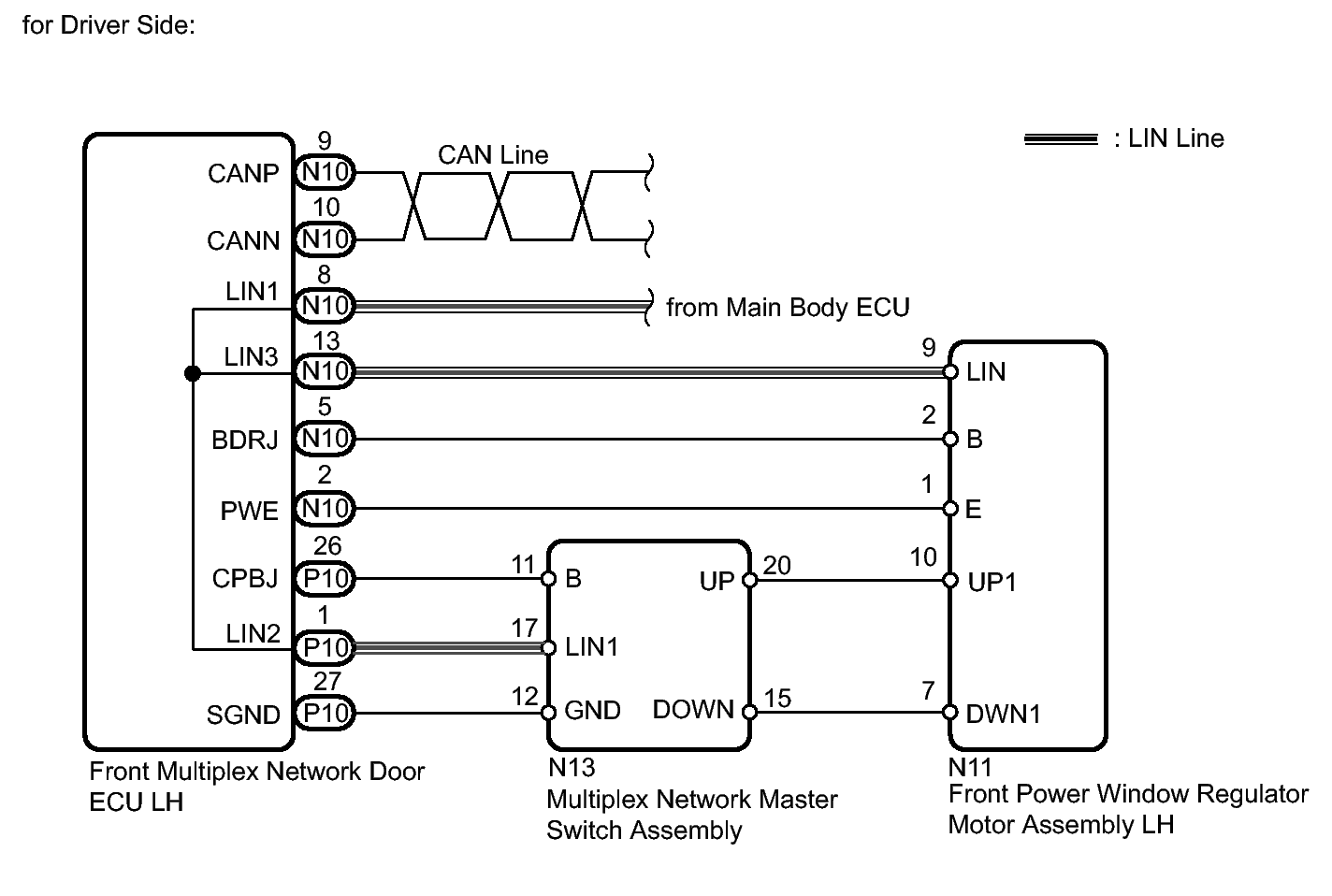

Fig 1: Power Window System - Wiring Diagram (Driver Side)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

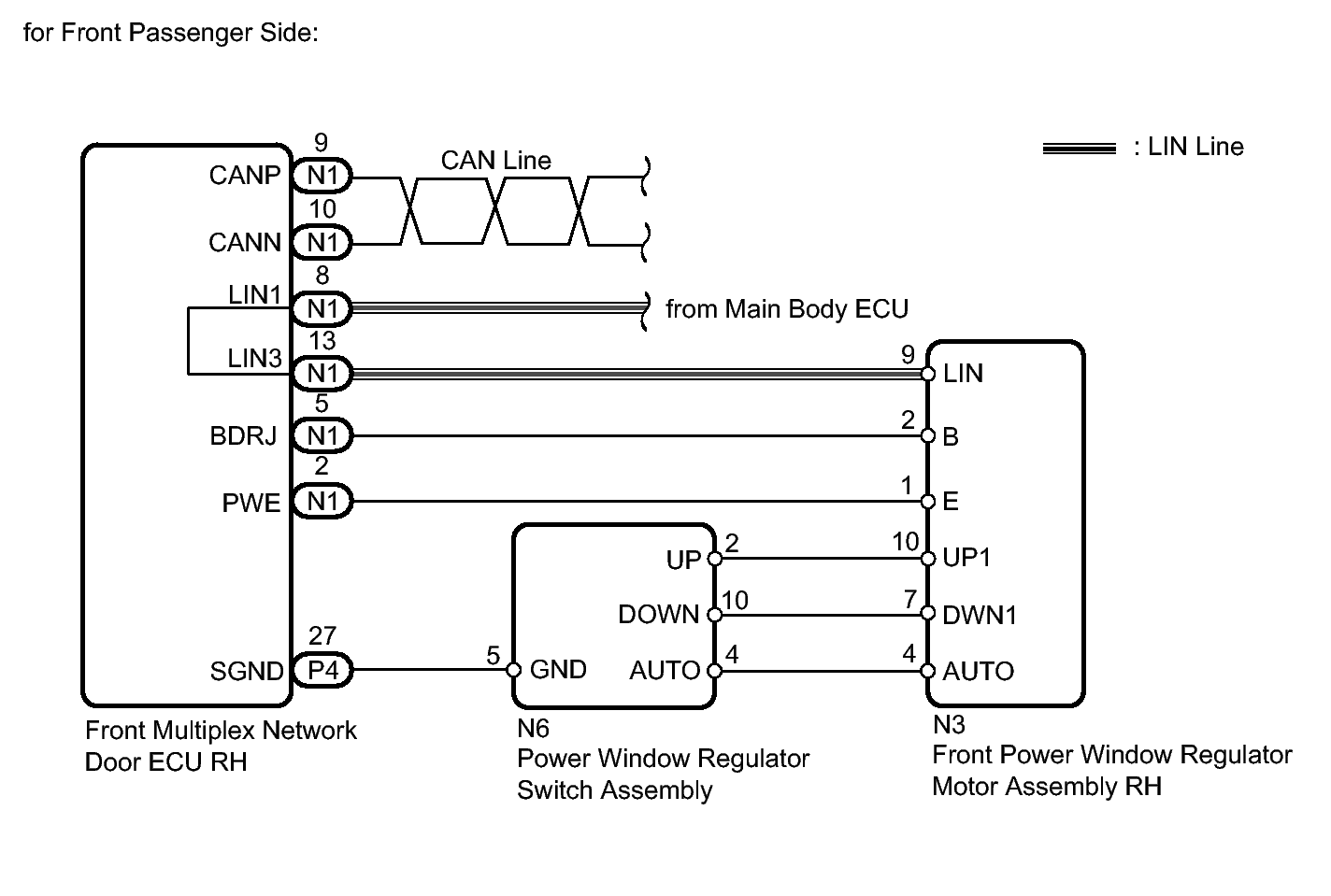

Fig 2: Power Window System - Wiring Diagram (Passenger Side)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Power Window System - Wiring Diagram (Rear LH)

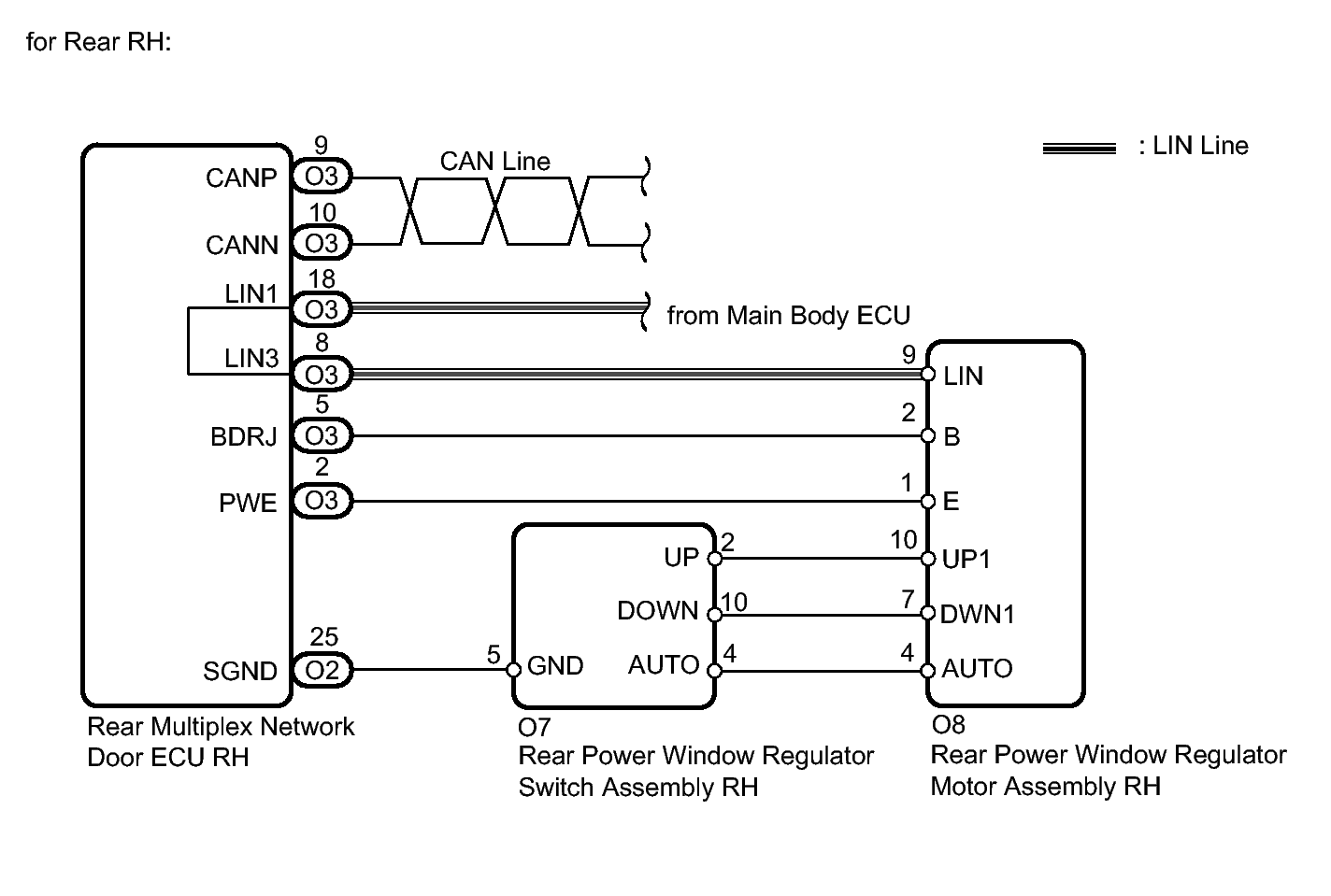

Fig 4: Power Window System - Wiring Diagram (Raer RH)
