Skid Control Buzzer: Components: Illustration

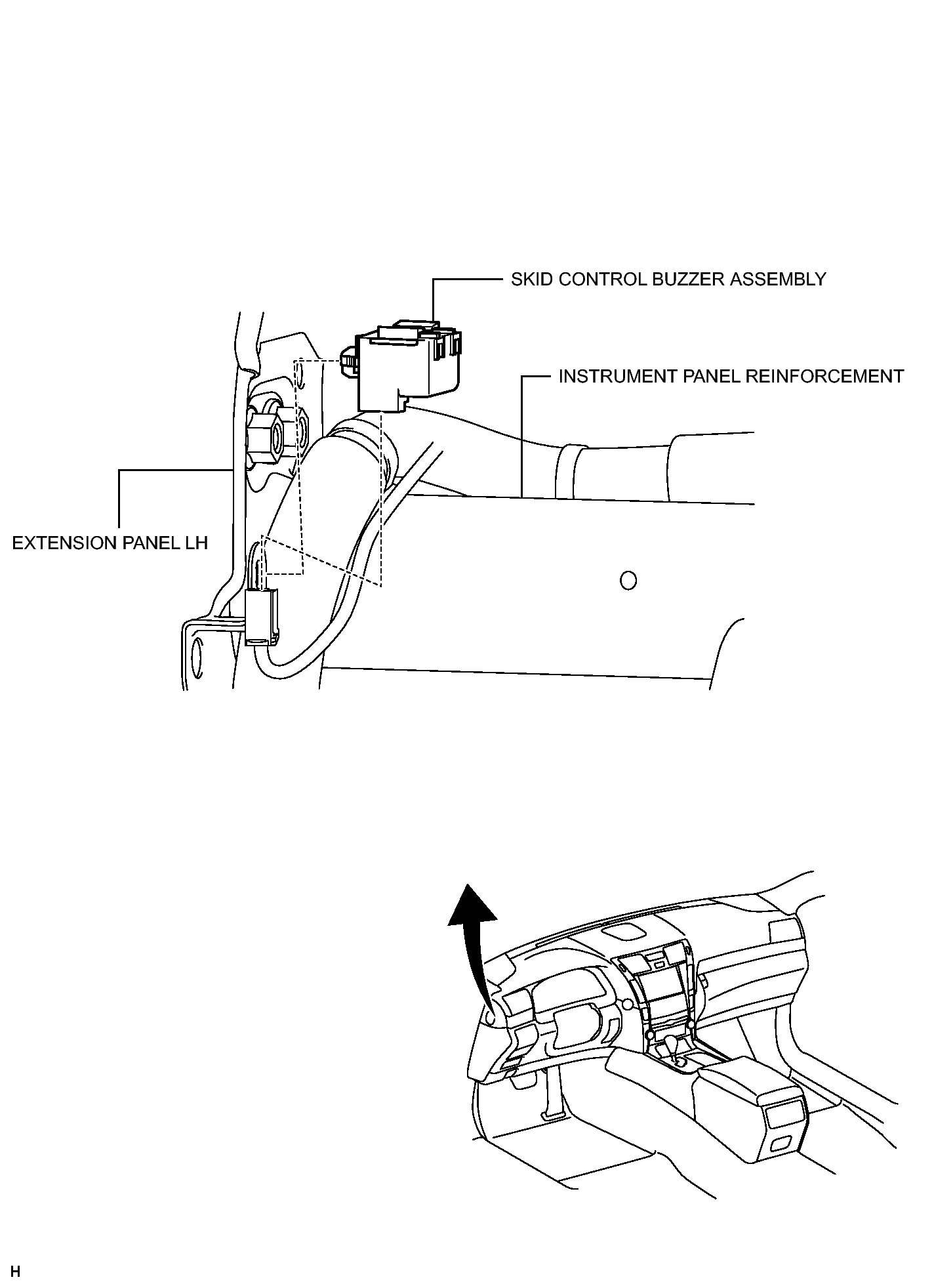

Fig 1: Identifying Skid Control Buzzer Replacement Components (1 Of 2) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

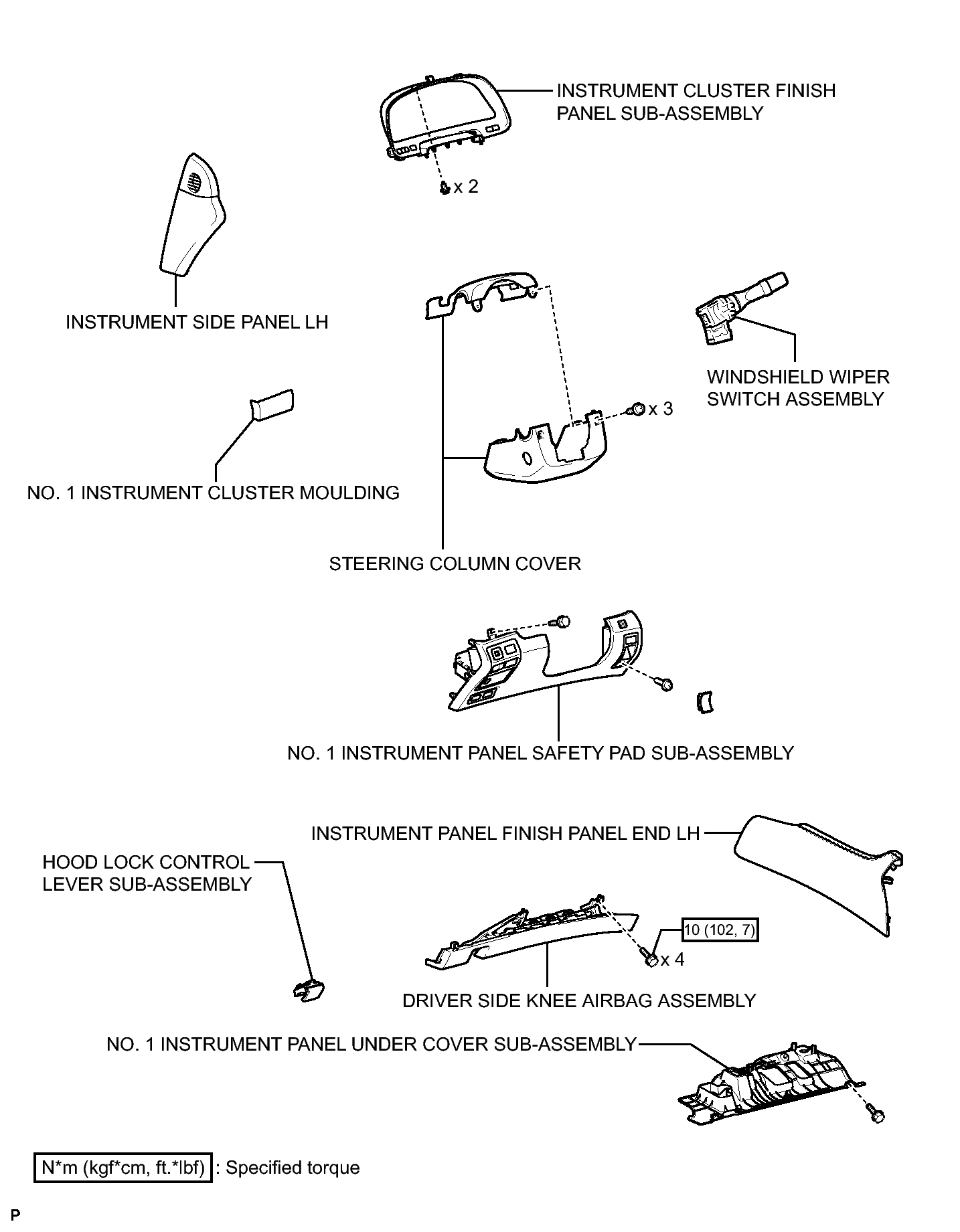

Fig 1: Identifying Skid Control Buzzer Replacement Components (3 Of 3)
