Lexus
›
2012
›
LS 460 AWD
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
Door Closer
›
Notes
Door Closer: Notes

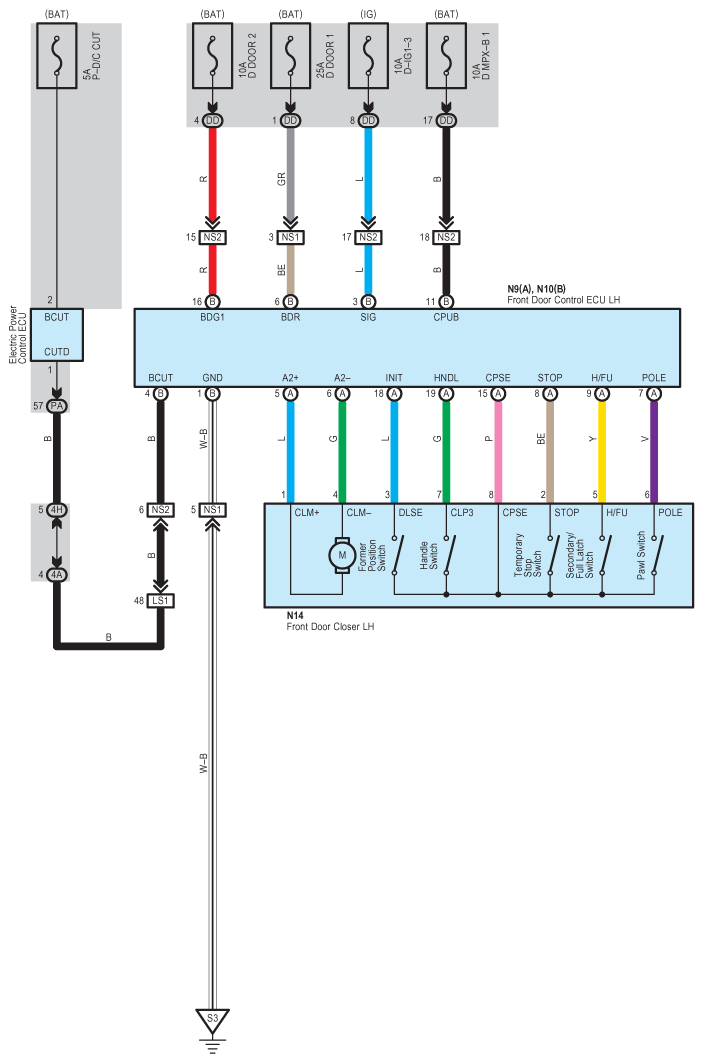

Fig 1: Door Closer - Wiring Diagram (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

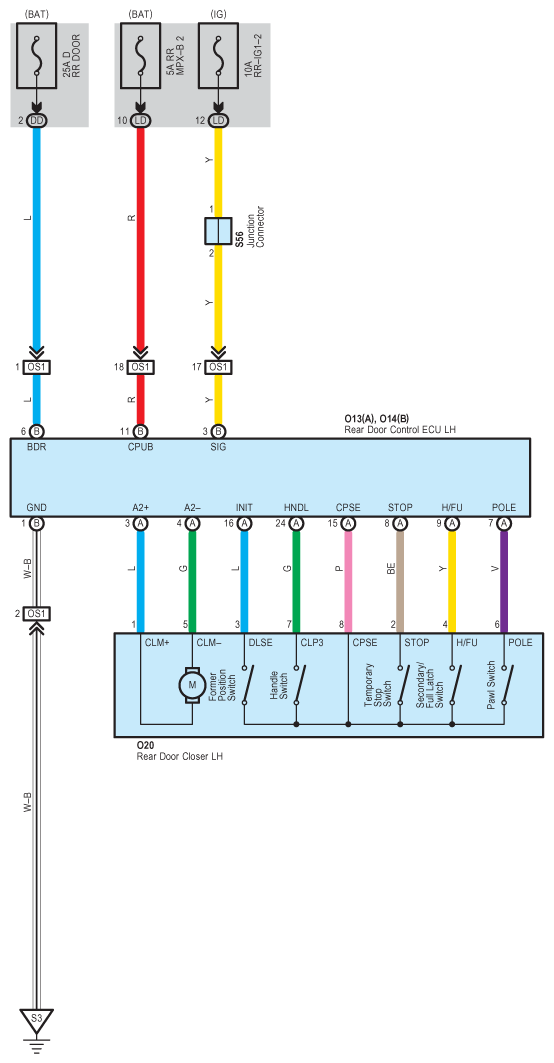

Fig 2: Door Closer - Wiring Diagram (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

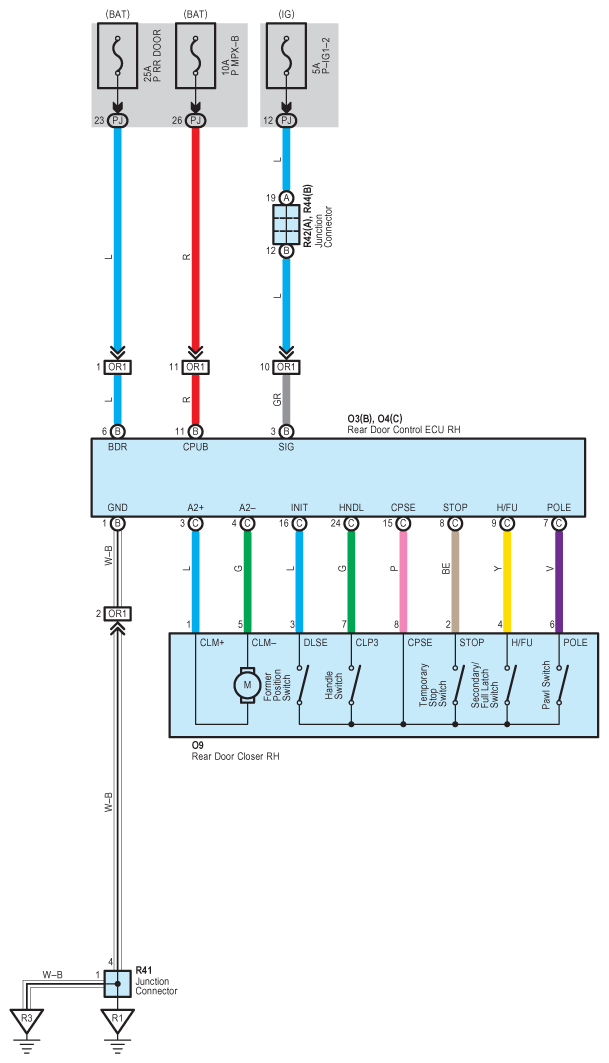

Fig 3: Door Closer - Wiring Diagram (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

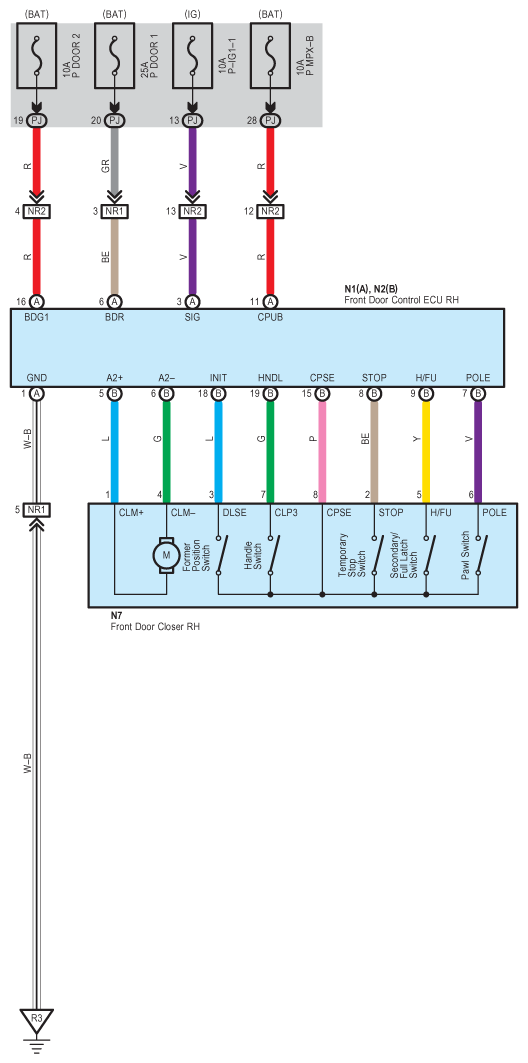

Fig 4: Door Closer - Wiring Diagram (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
