Fuel Pump Resistor: Components: Illustration

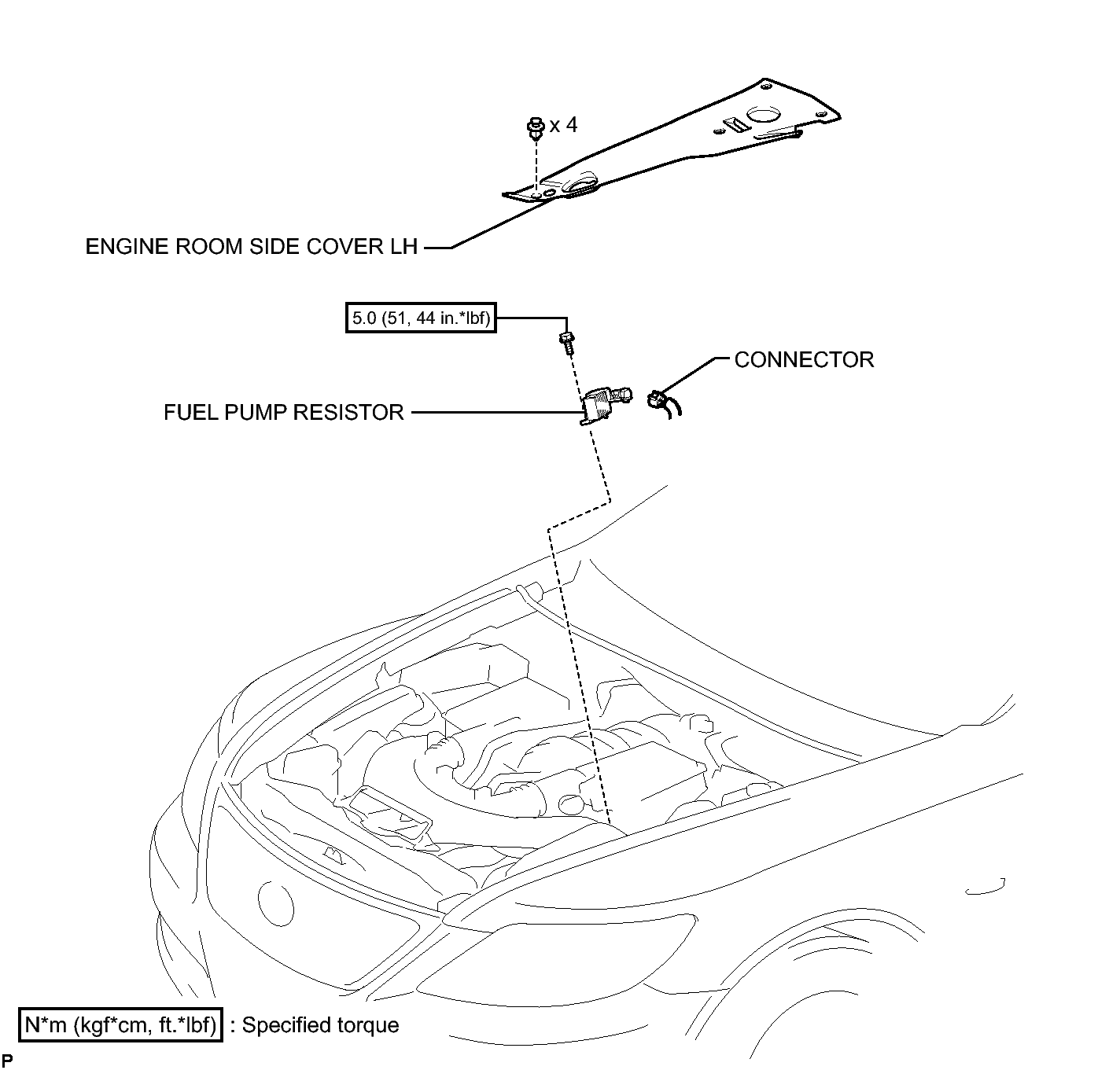

Fig 1: Identifying Fuel Pump Resistor Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
