Smart Access System With Push-Button Start (Diagnostic Codes & Symptom Tests)
›
Smart Access System With Push-Button Start
›
Symptom Tests
›
Power Source Mode does not Change
›
Wiring Diagram
Power Source Mode does not Change: Wiring Diagram

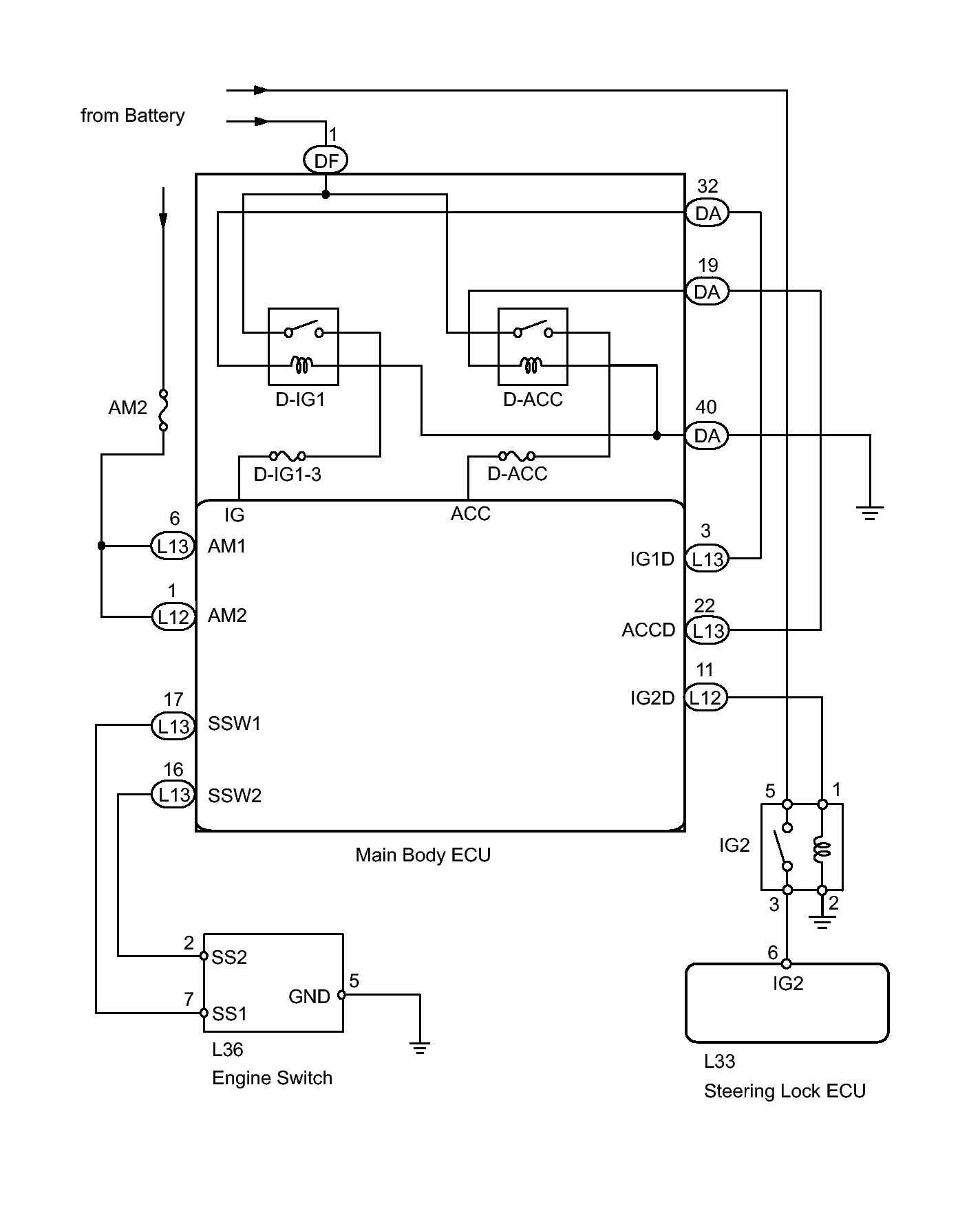

Fig 1: Power Source Mode - Wiring Diagram
