Parts Location: Illustration

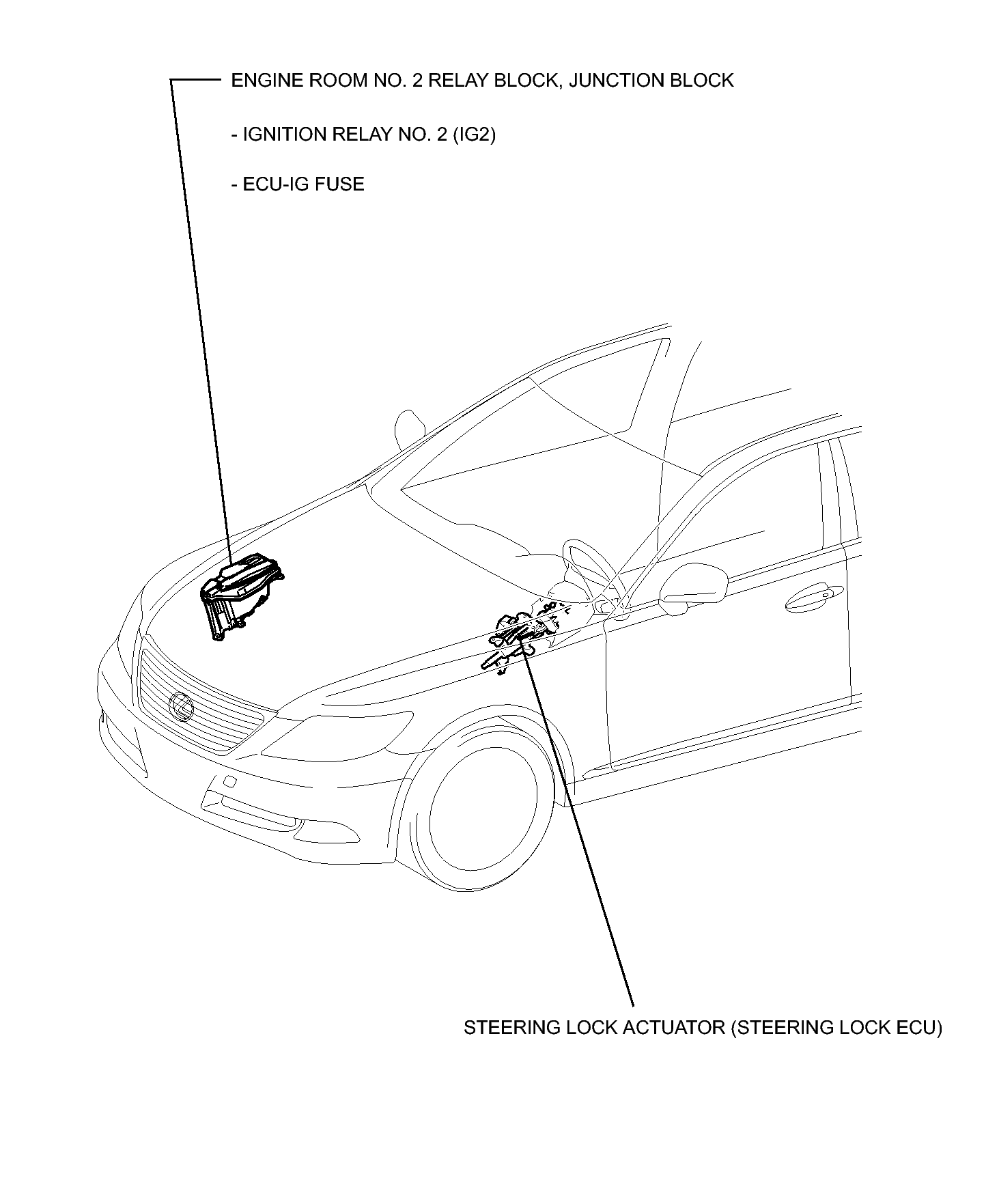

Fig 1: Identifying Steering Lock System Components Location (1 Of 2)
GTY352167Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

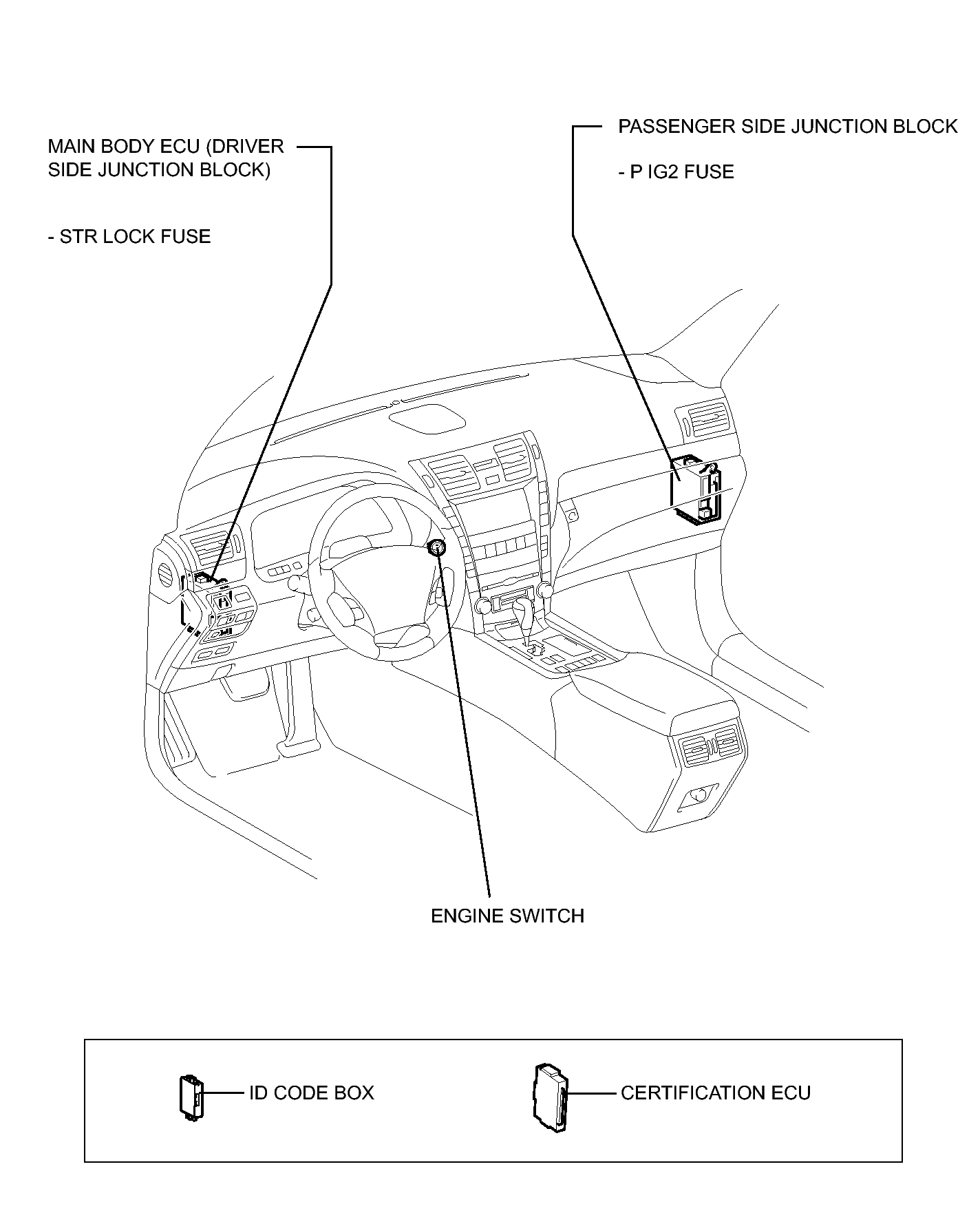

Fig 1: Identifying Steering Lock System Components Location (2 Of 2)
GTY266532Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
