Automatic Transmission Assembly: Components: Illustration

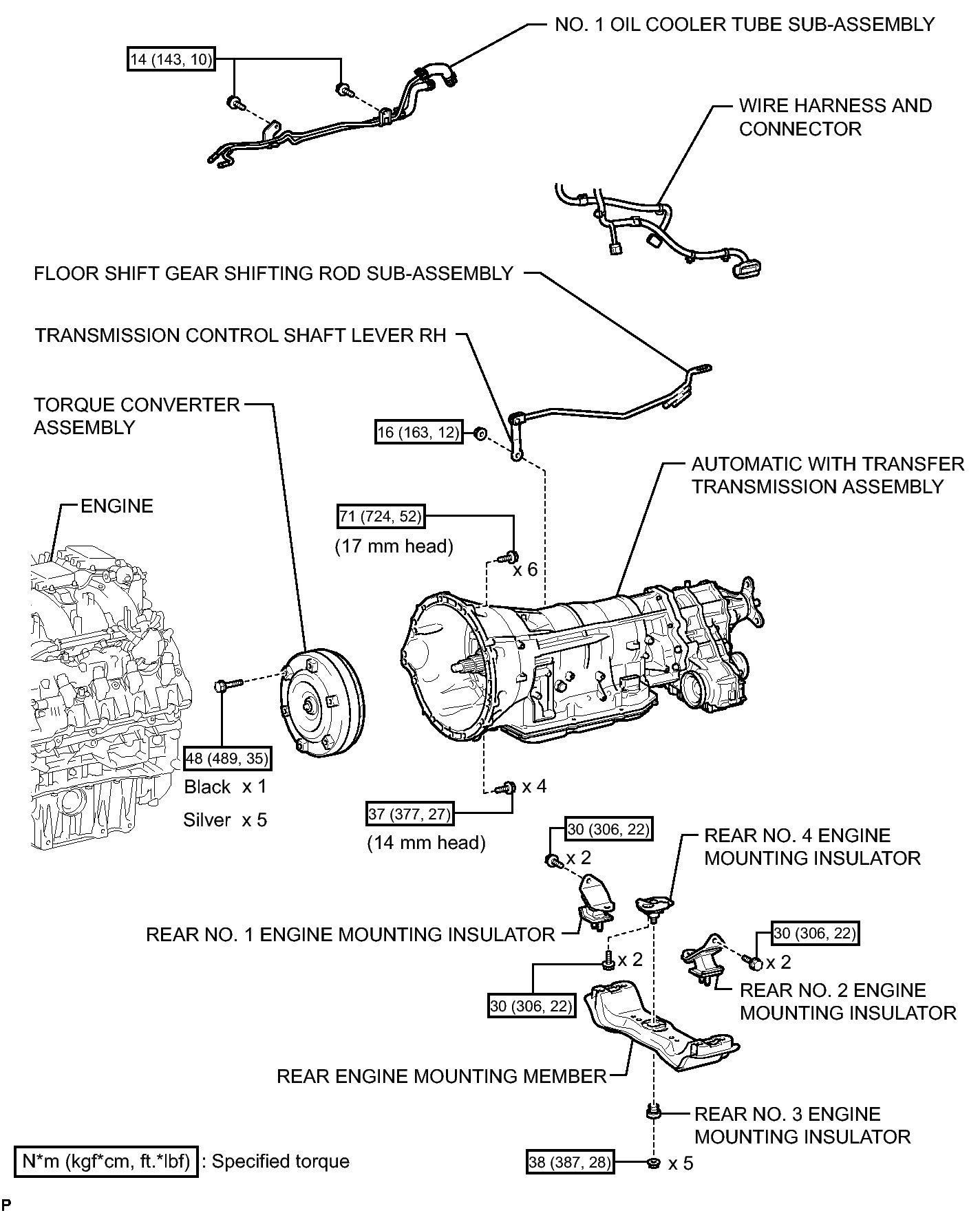

Fig 1: Identifying Automatic Transmission Assembly Replacement Components With Torque Specifications (1 Of 2)
GTY261580Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

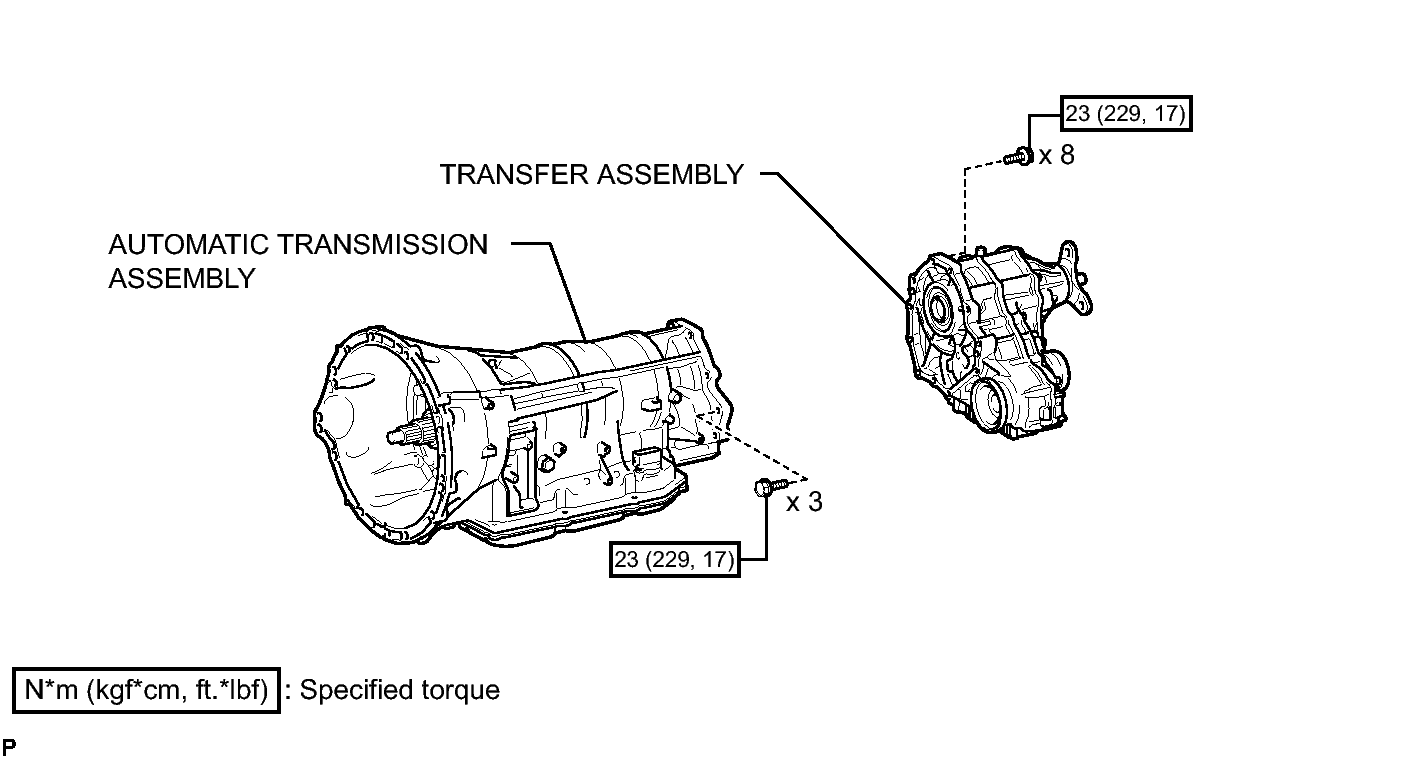

Fig 1: Identifying Automatic Transmission Assembly Replacement Components With Torque Specifications (2 Of 2)
GTY263368Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
