System Diagram

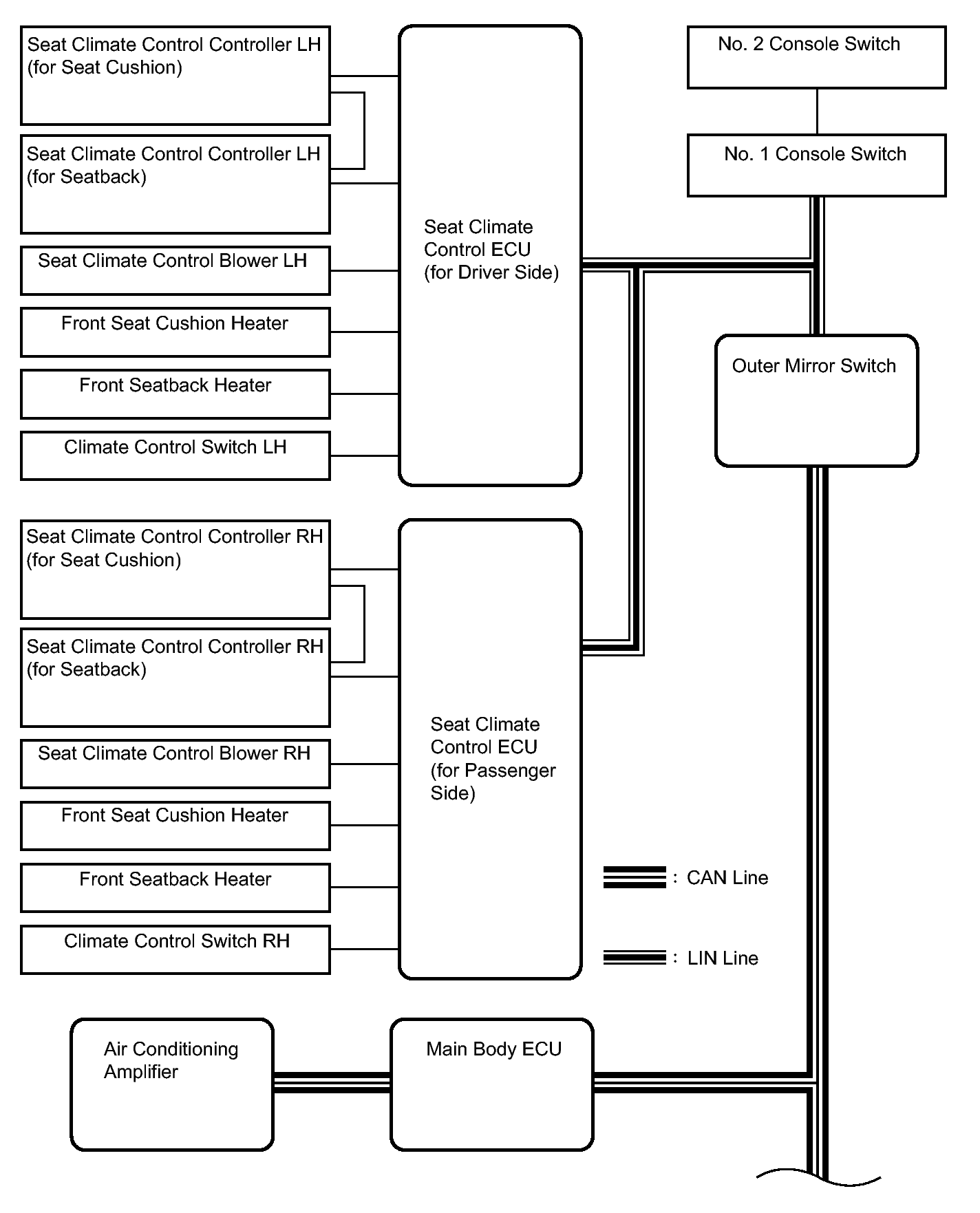

Fig 1: Identifying Climate Control Seat System Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

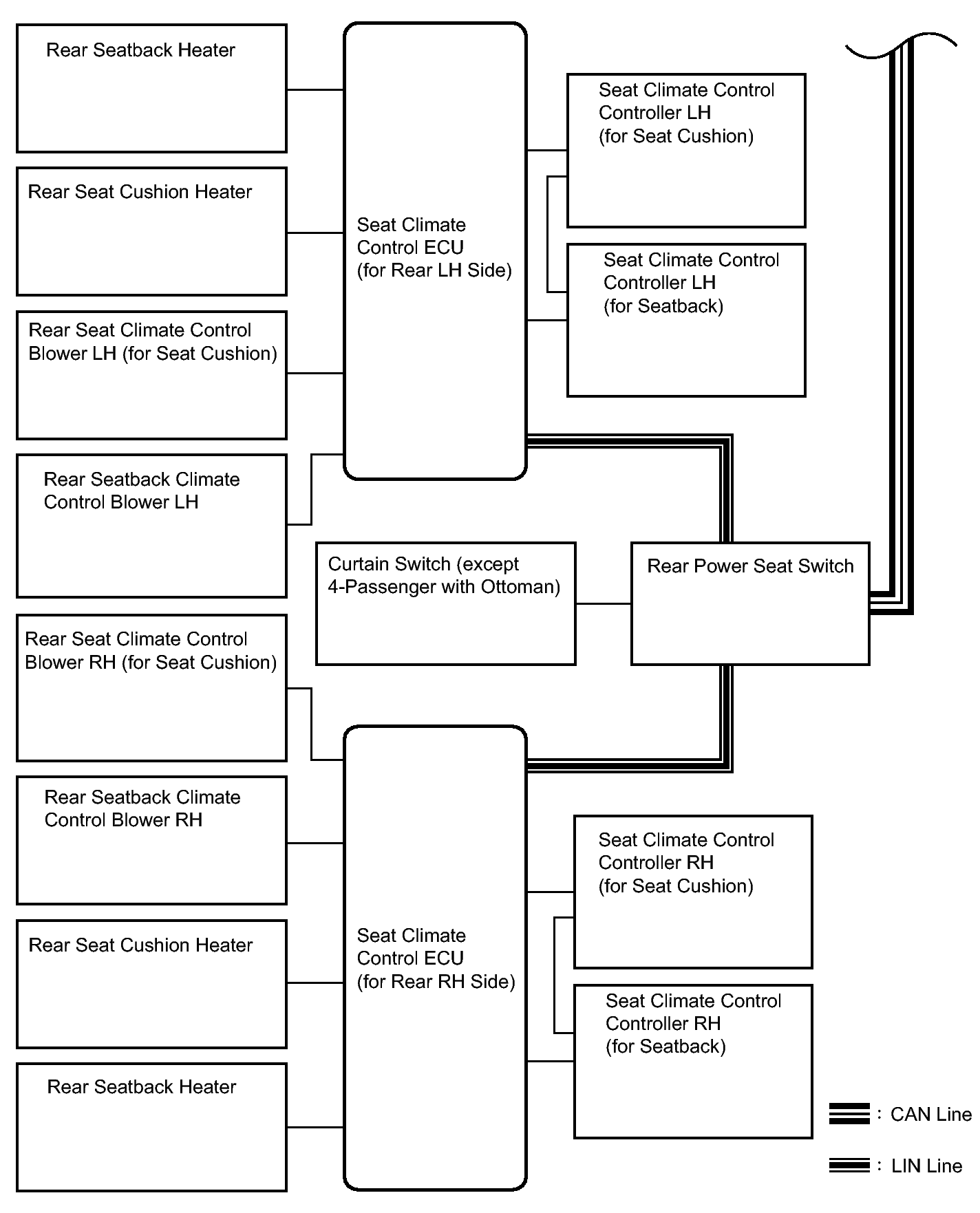

Fig 2: Identifying Climate Control Seat System Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

COMMUNICATION TABLE

Sender	Receiver	Signal	Line
Climate control ECU	A/C amplifier	A/C signal	LIN, CAN
