Headlight Assembly: Components: Illustration

WARNING: This page is about a different car, the 2012 Lexus LS 460. However, it is still accessible from the selected car via links, so may be relevant.

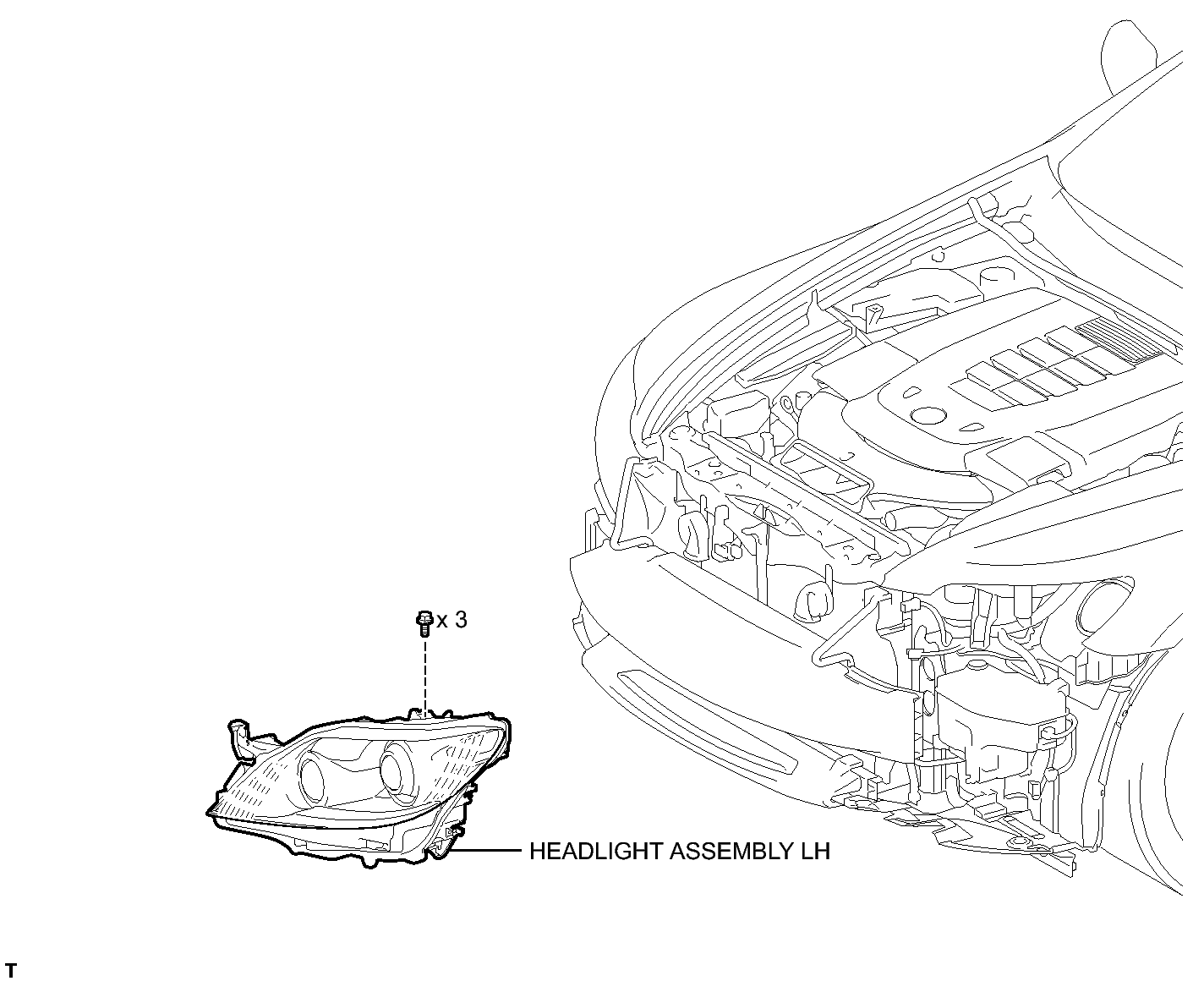

Fig 1: Identifying Headlight Assembly Replacement Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

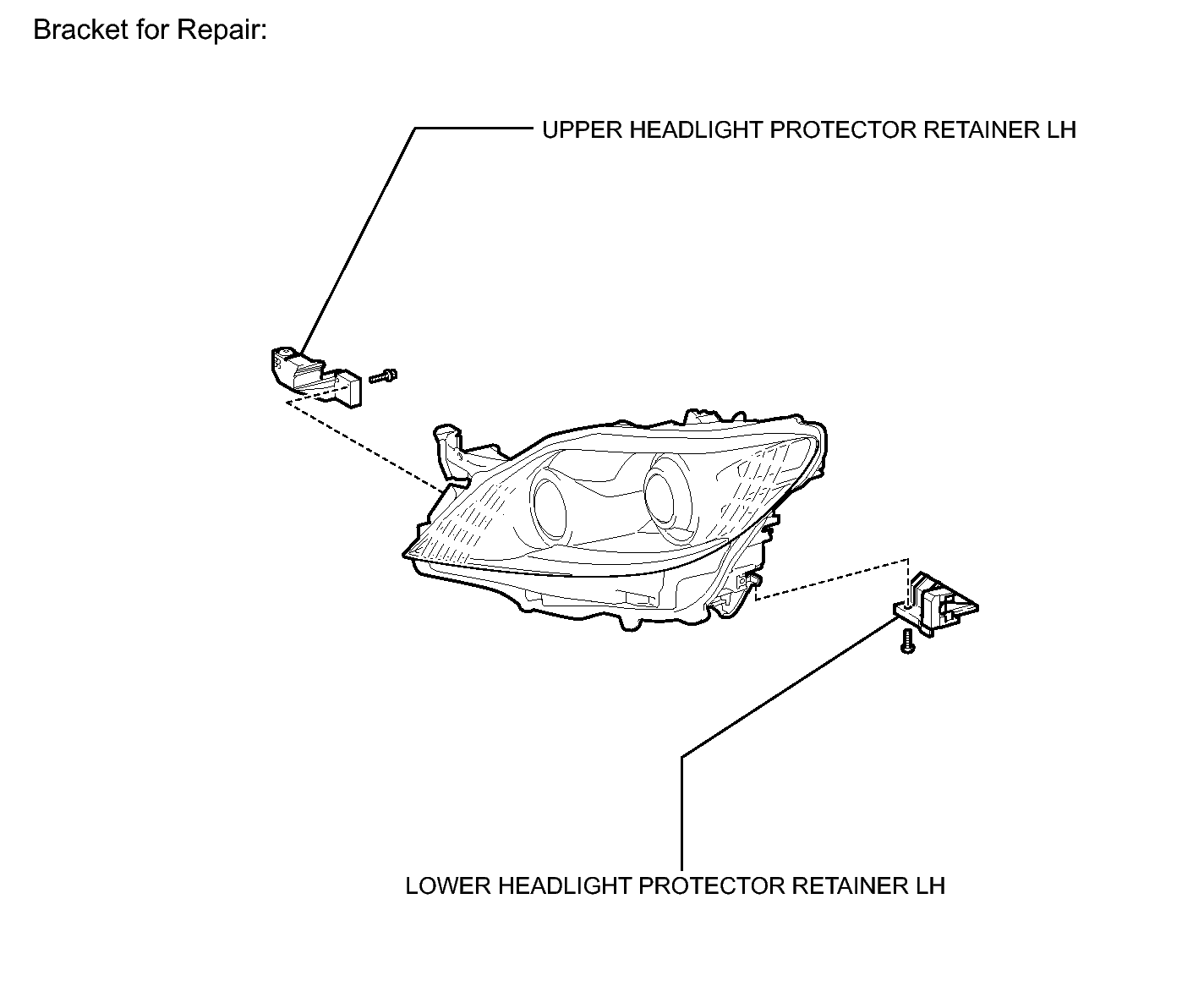

Fig 1: Identifying Headlight Assembly Replacement Components (2 Of 3)

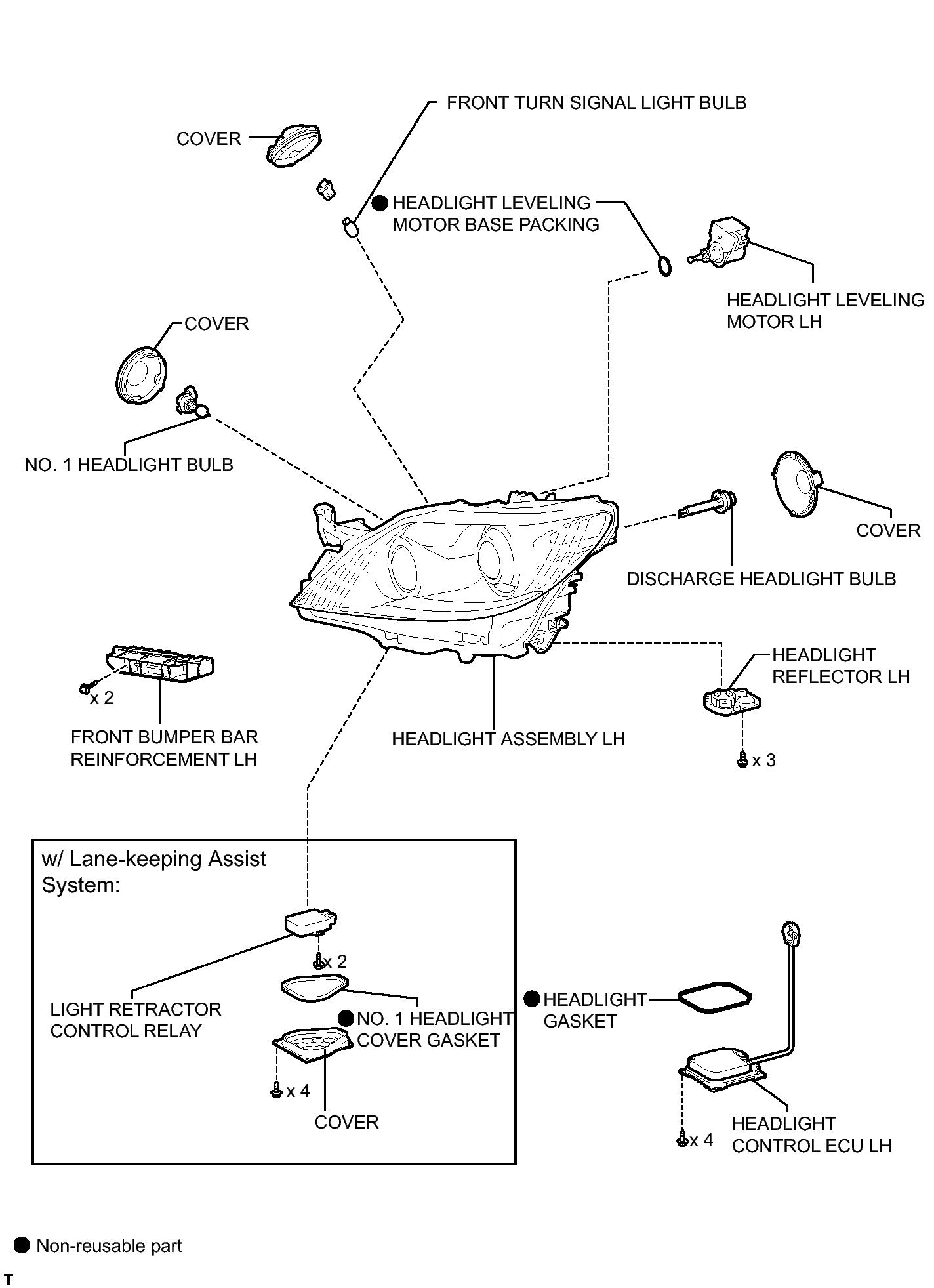

Fig 1: Identifying Headlight Assembly Replacement Components (3 Of 3)
