Object Recognition Ecu: Components: Illustration

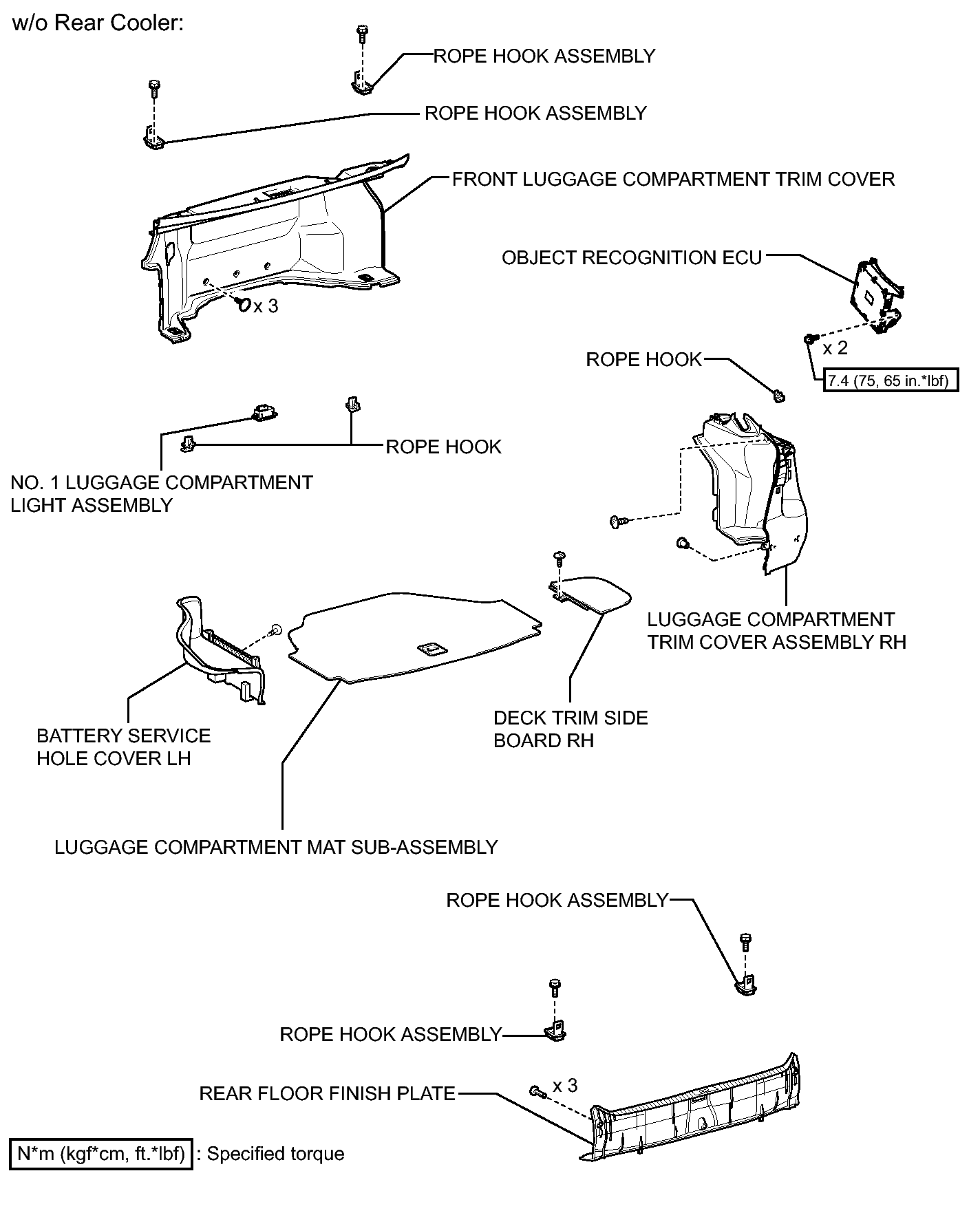

Fig 1: Identifying Object Recognition ECU Replacement Components With Torque Specifications (1 Of 3)
GTY282299Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

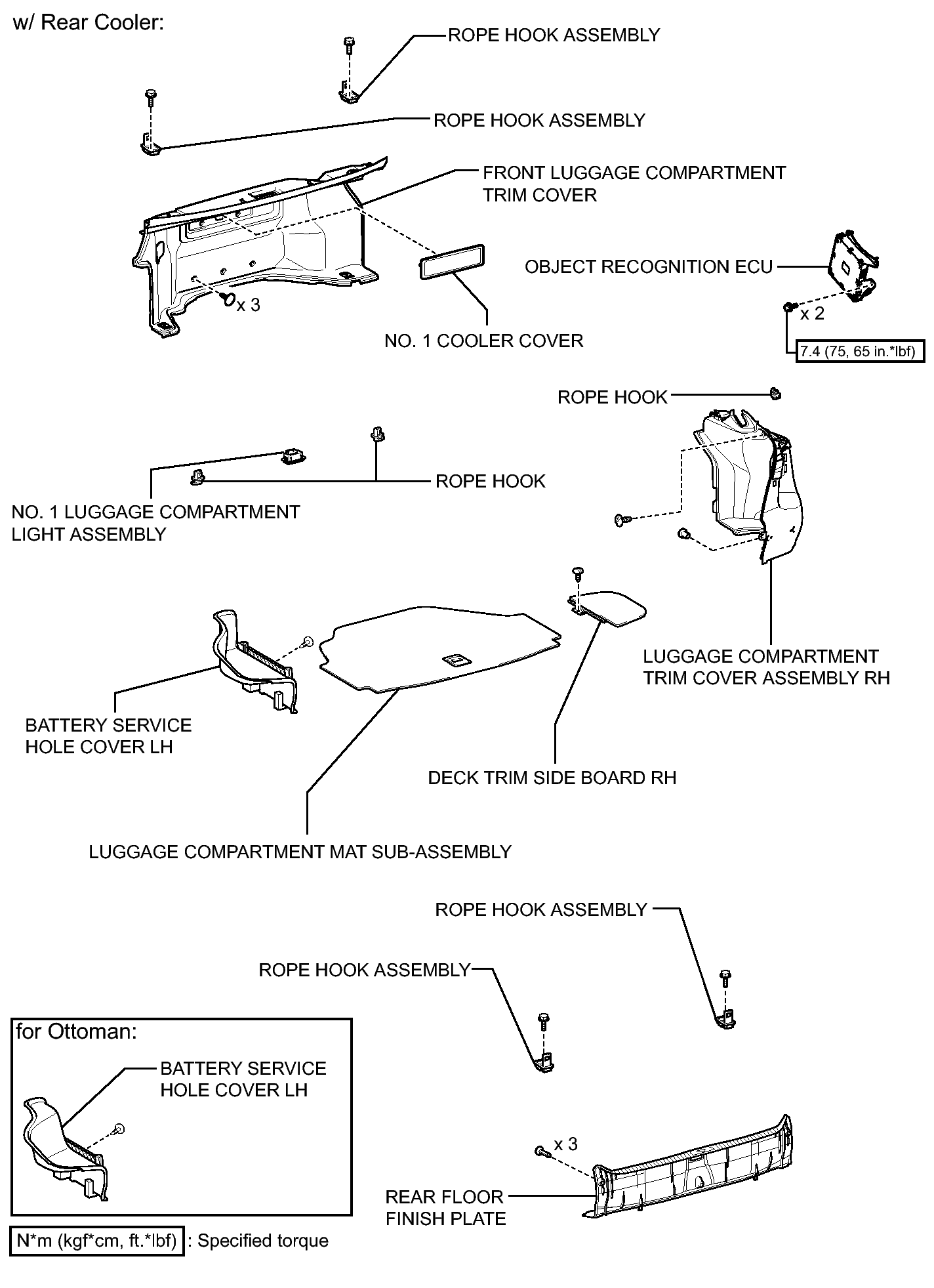

Fig 1: Identifying Object Recognition ECU Replacement Components With Torque Specifications (2 Of 3)
GTY274684Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

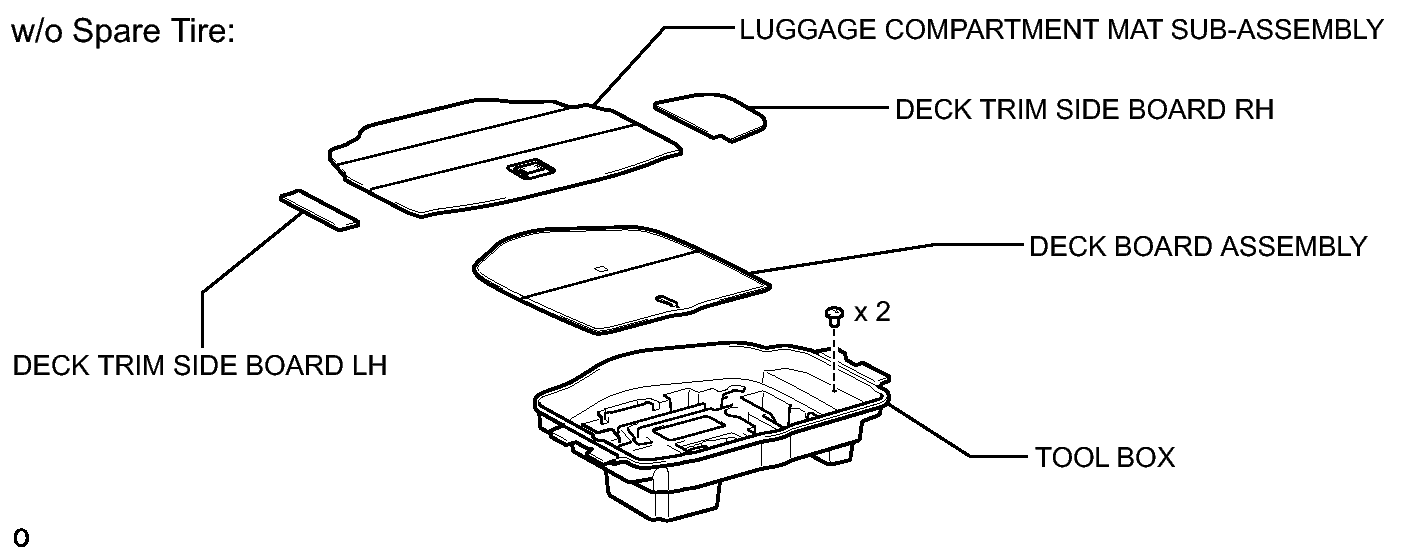

Fig 1: Identifying Object Recognition ECU Replacement Components (3 Of 3)
GTY134365Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
