Parts Location: Illustration

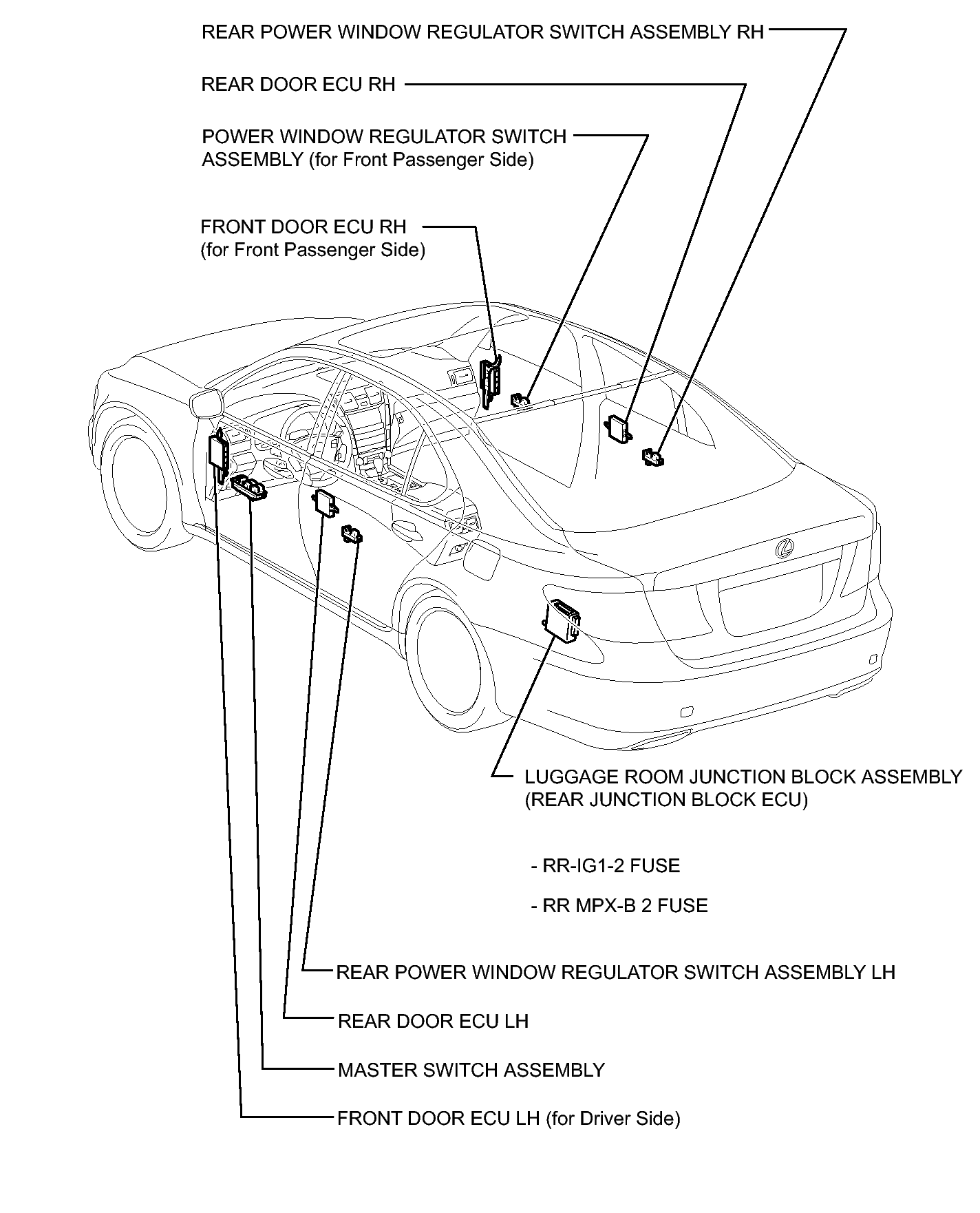

Fig 1: Identifying Power Window Control System Components Location (1 Of 4)
GTY126132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

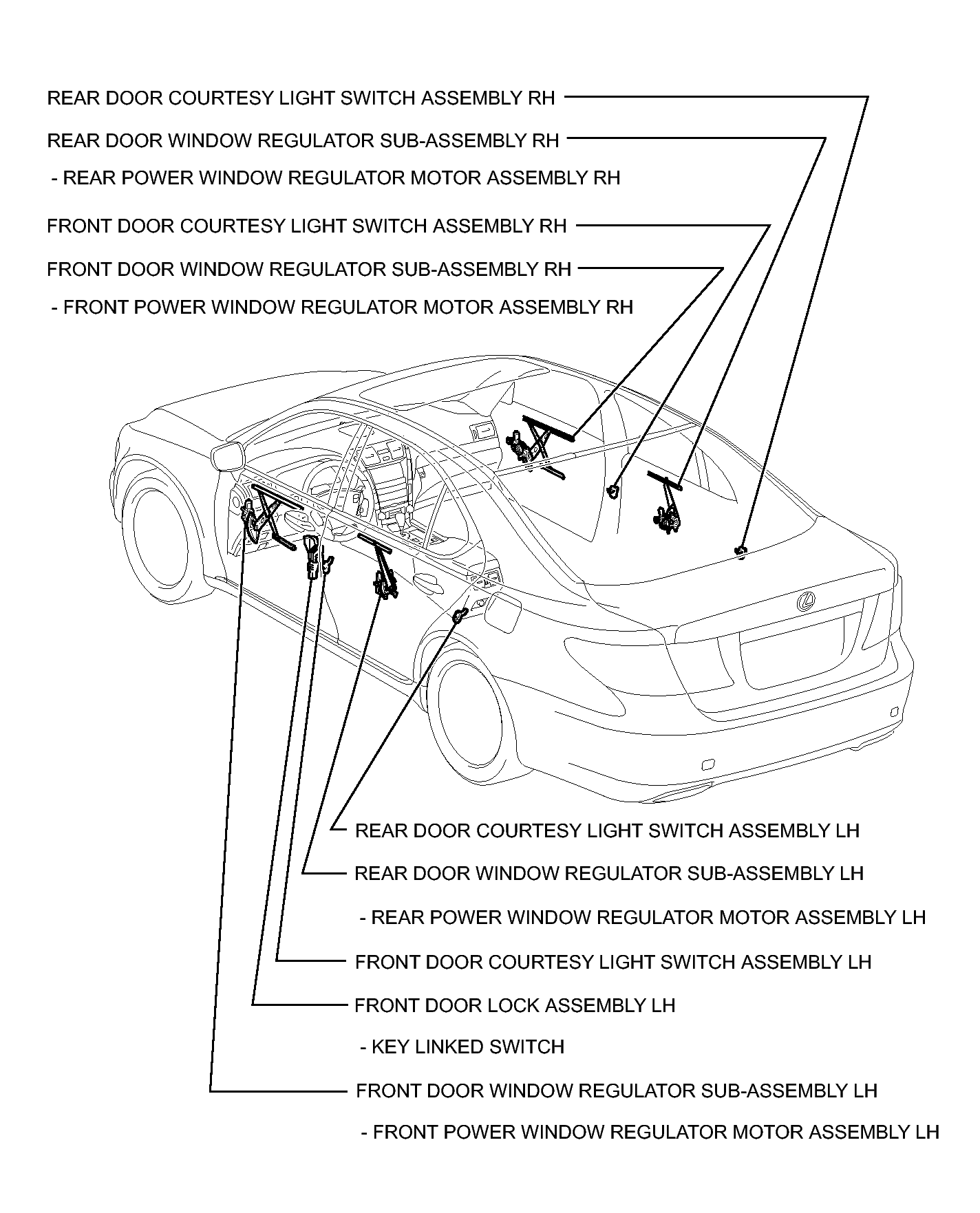

Fig 1: Identifying Power Window Control System Components Location (2 Of 4)
GTY116456Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

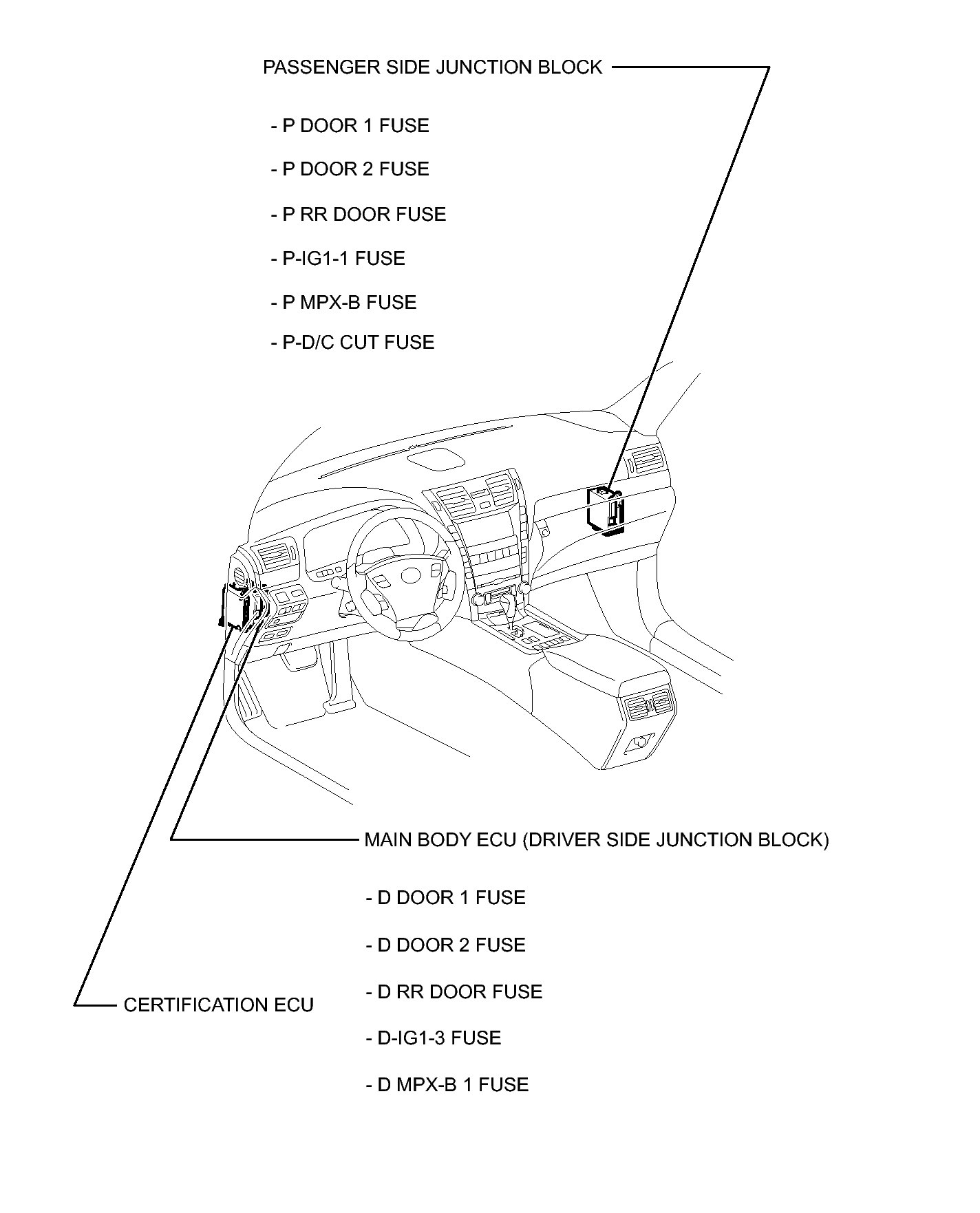

Fig 1: Identifying Power Window Control System Components Location (3 Of 4)
GTY116457Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

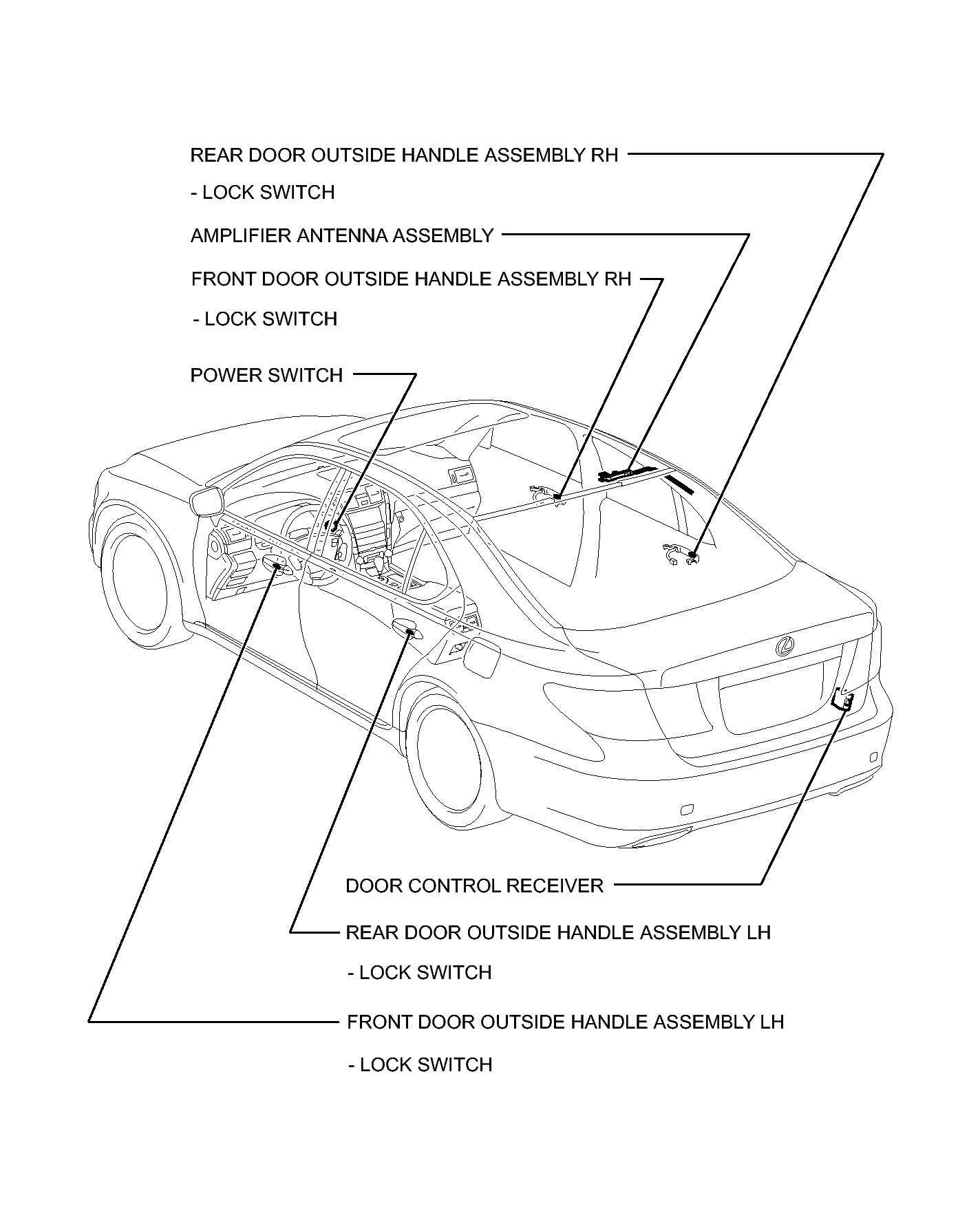

Fig 1: Identifying Power Window Control System Components Location (4 Of 4)
GTY116458Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
