Brake Control System (Service Information)
›
Brake Pedal Stroke Sensor
›
Components
›
Illustration
Brake Pedal Stroke Sensor: Components: Illustration

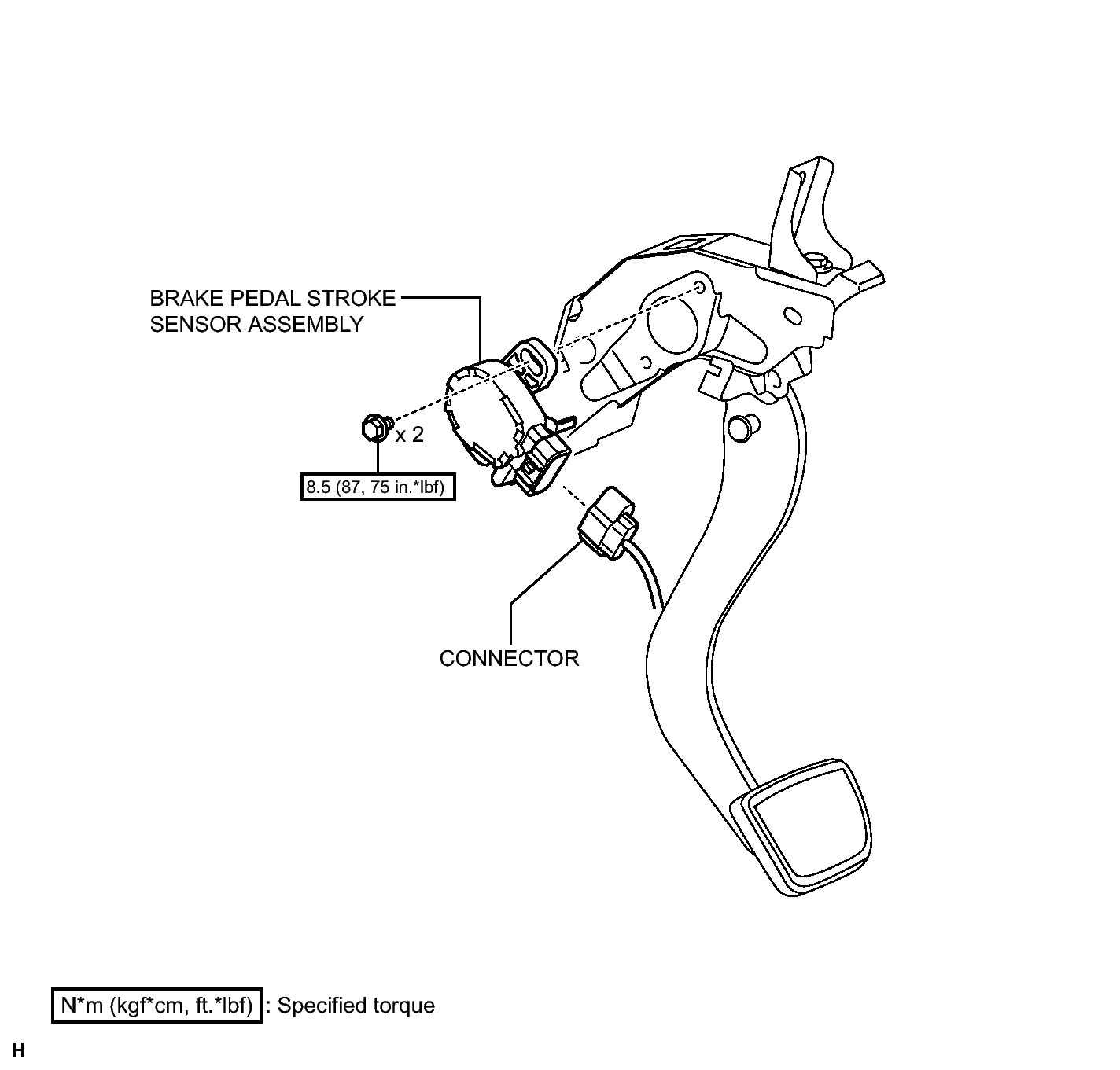

Fig 1: Identifying Brake Pedal Stroke Sensor Replacement Components (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 1: Identifying Brake Pedal Stroke SensorReplacement Components With Torque Specifications (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 1: Identifying Brake Pedal Stroke Sensor Replacement Components With Torque Specifications (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
