OEM System Circuits: EPS: Notes

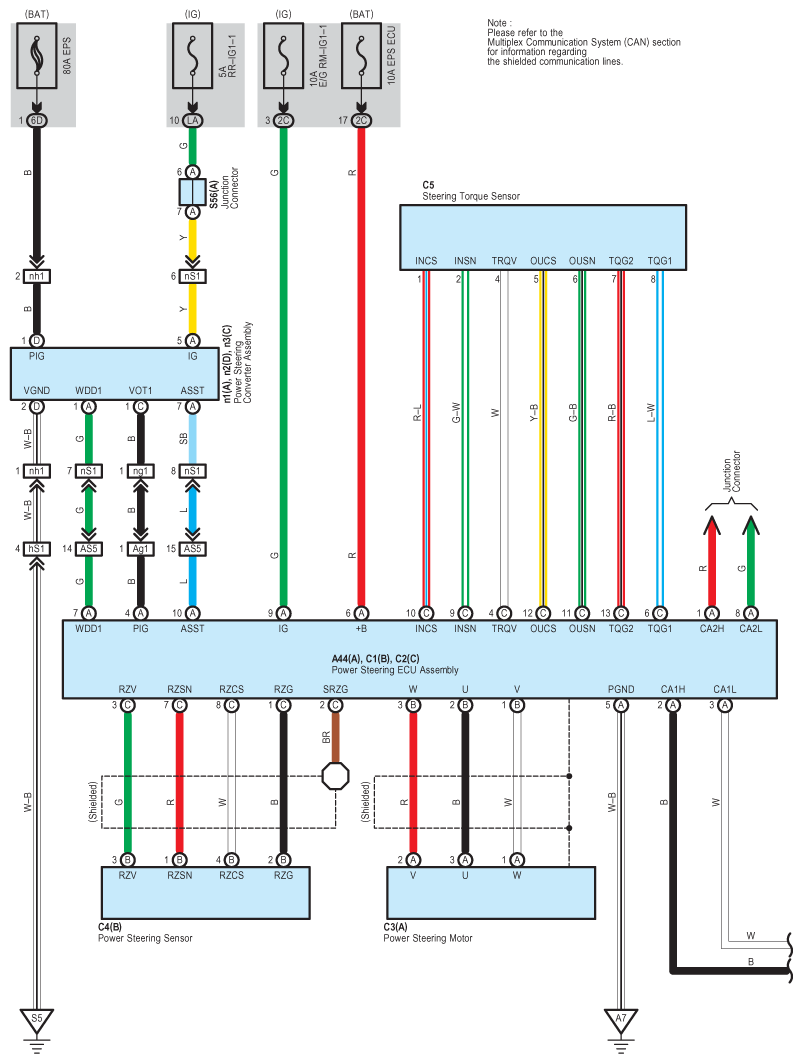

Fig 1: EPS - Wiring Diagram (1 Of 4)

G08936929

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

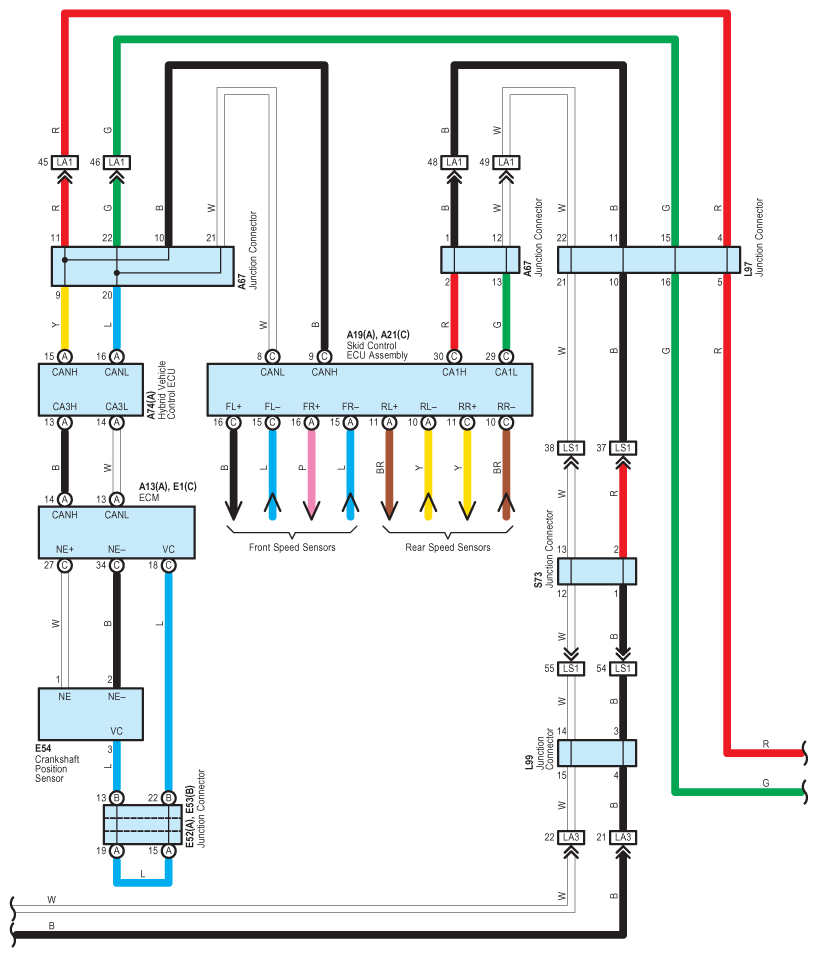

Fig 2: EPS - Wiring Diagram (2 Of 4)

G08936930

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

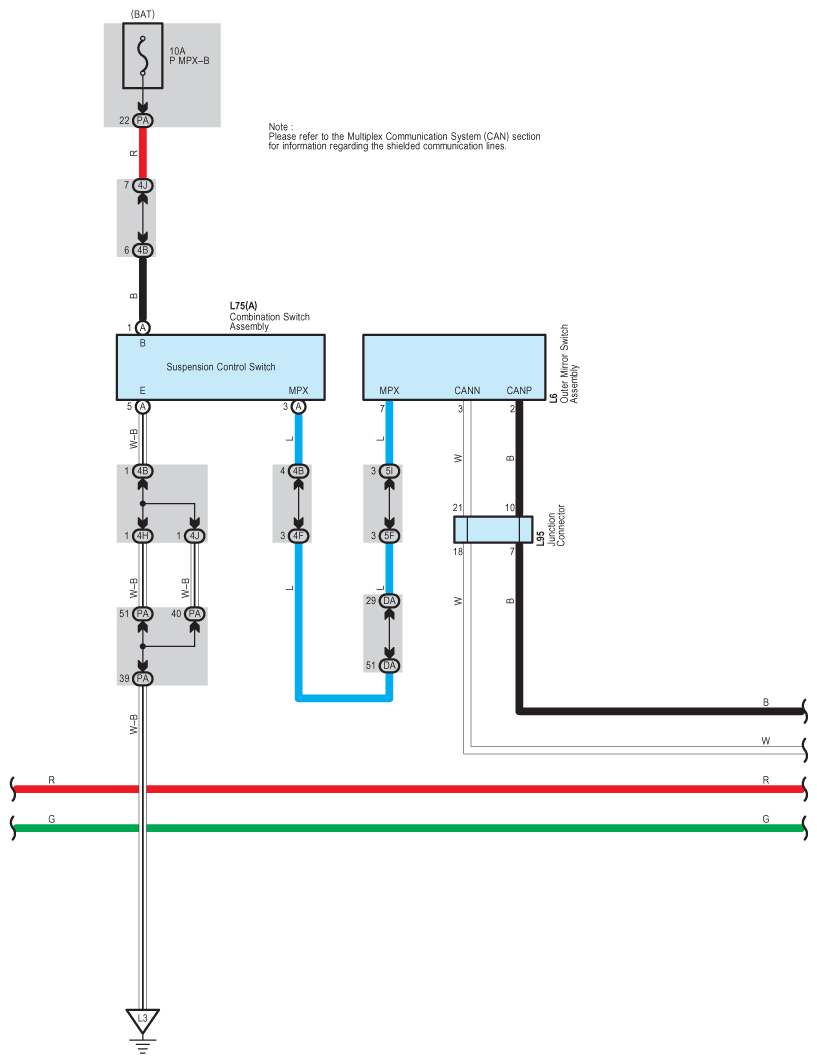

Fig 3: EPS - Wiring Diagram (3 Of 4)

G08936931

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

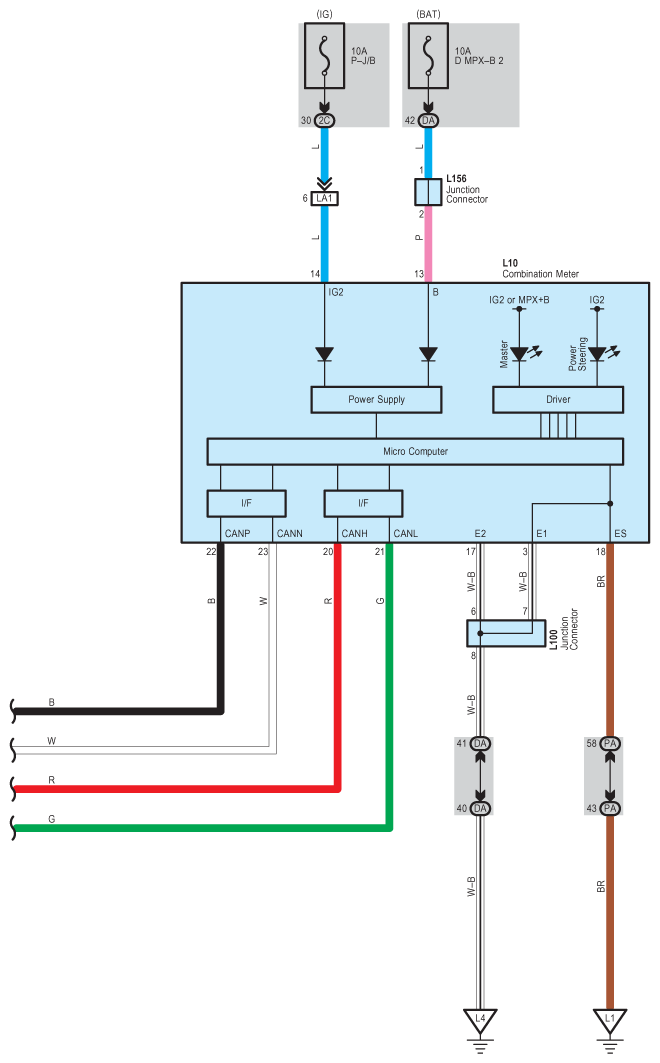

Fig 4: EPS - Wiring Diagram (4 Of 4)

G08936932

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
