Electric Parking Brake: Notes

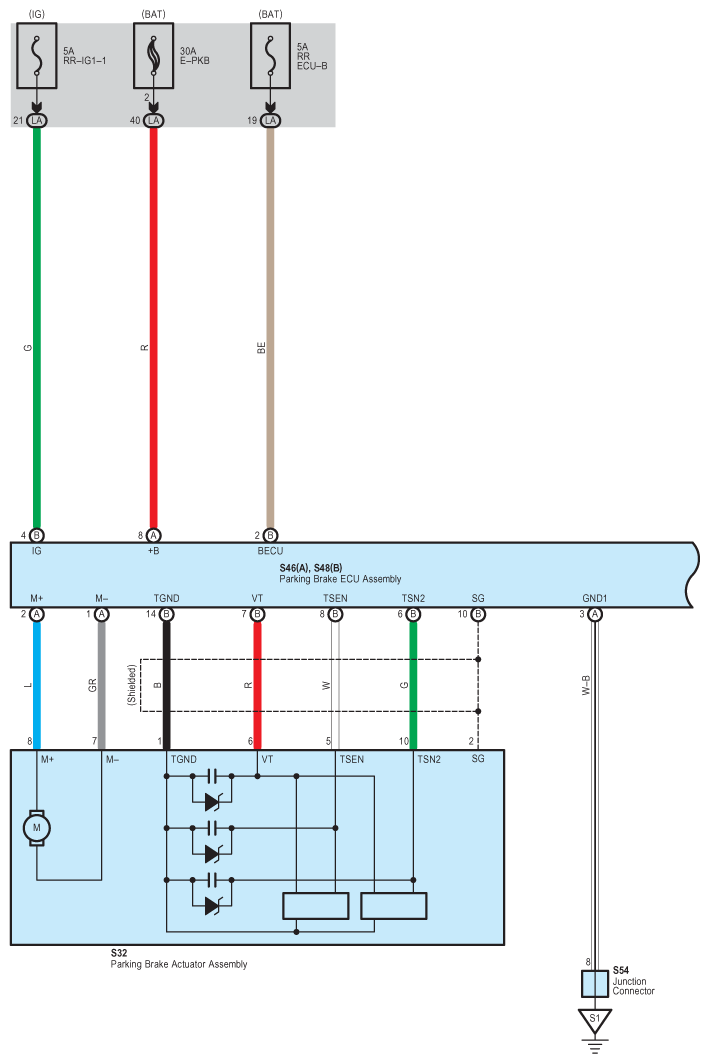

Fig 1: Electric Parking Brake - Wiring Diagram (1 Of 6)
G08936918Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

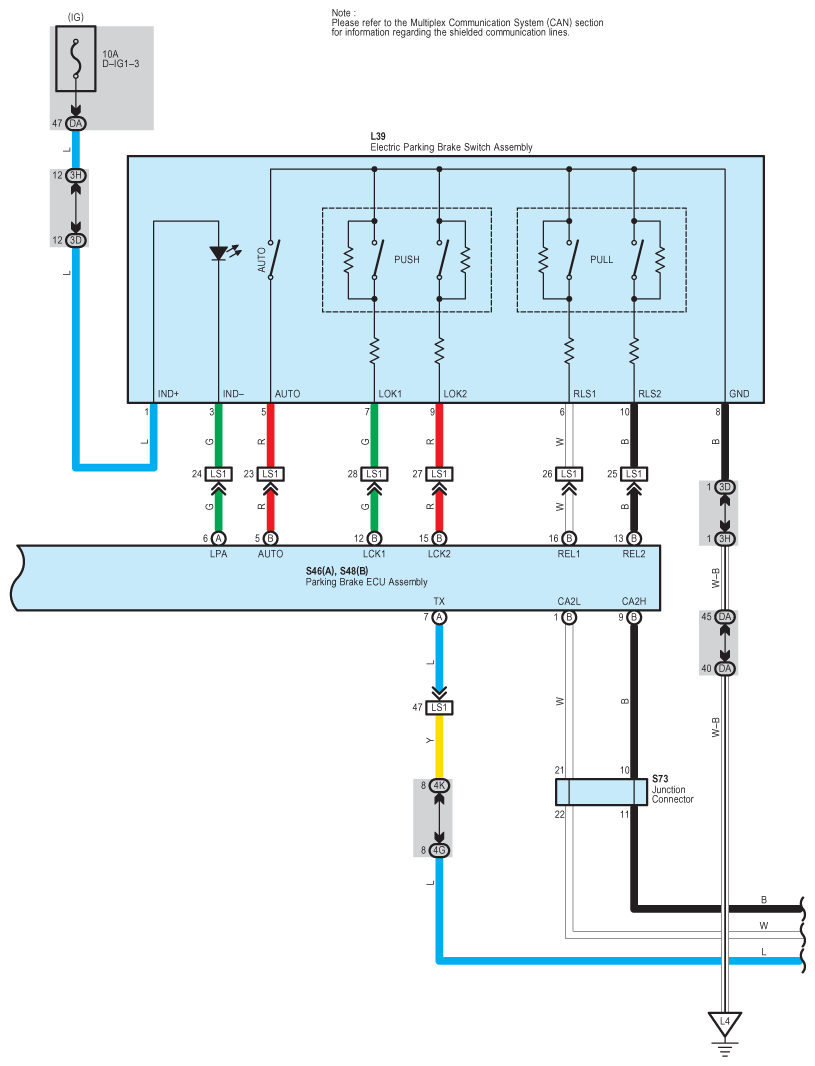

Fig 2: Electric Parking Brake - Wiring Diagram (2 Of 6)
G08936919Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

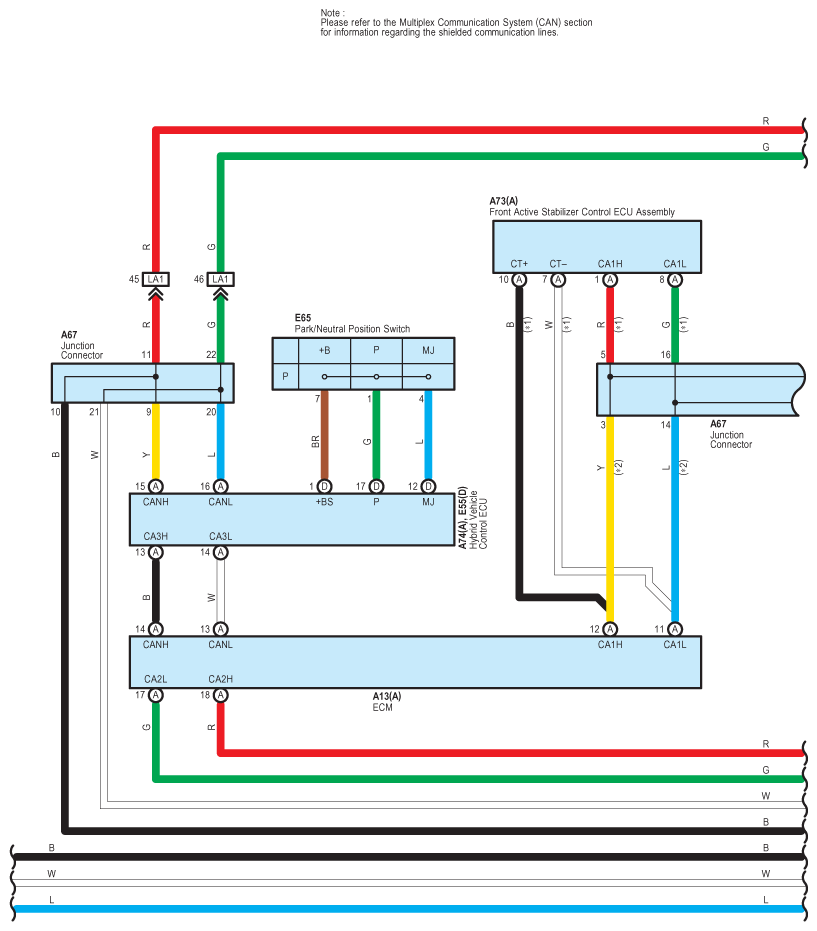

Fig 3: Electric Parking Brake - Wiring Diagram (3 Of 6)
G08936920Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

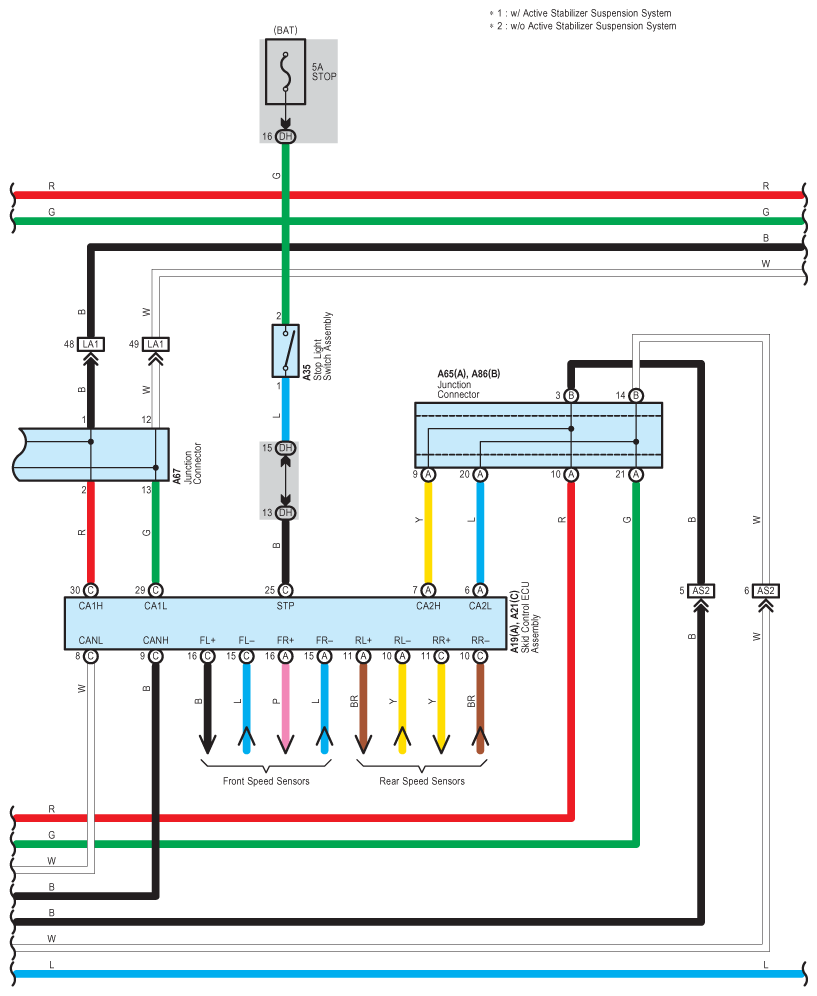

Fig 4: Electric Parking Brake - Wiring Diagram (4 Of 6)
G08936921Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

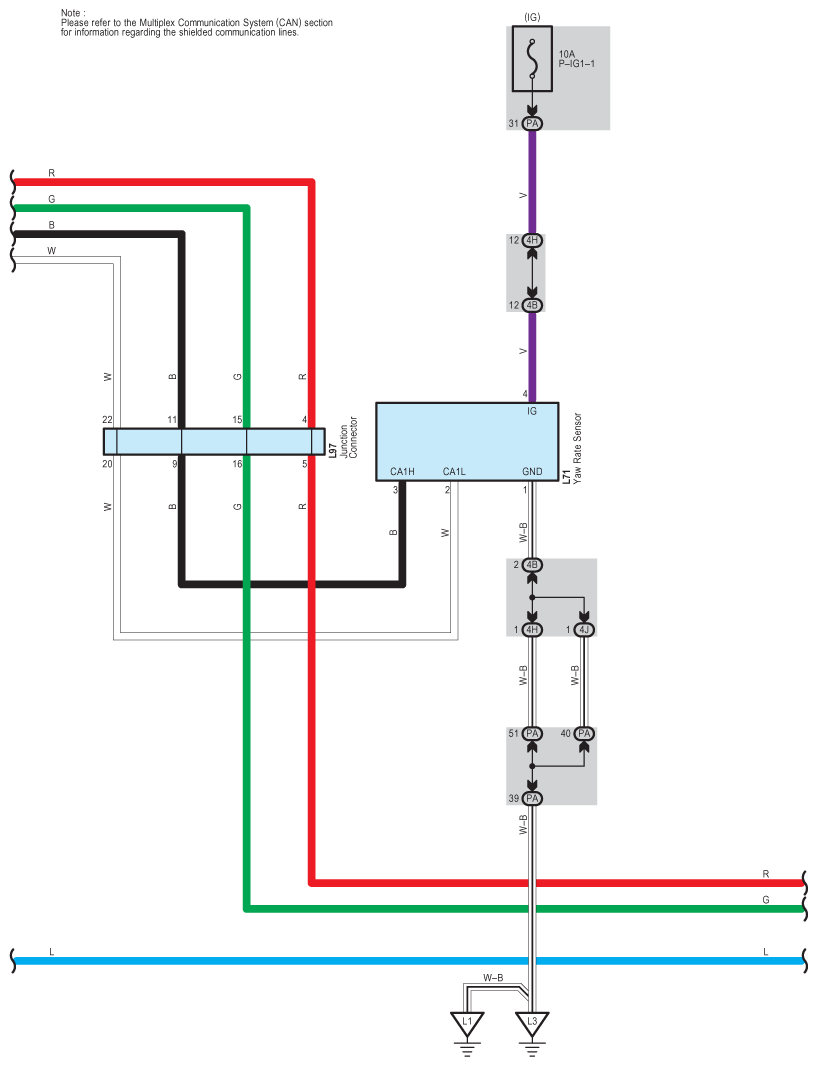

Fig 5: Electric Parking Brake - Wiring Diagram (5 Of 6)
G08936922Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

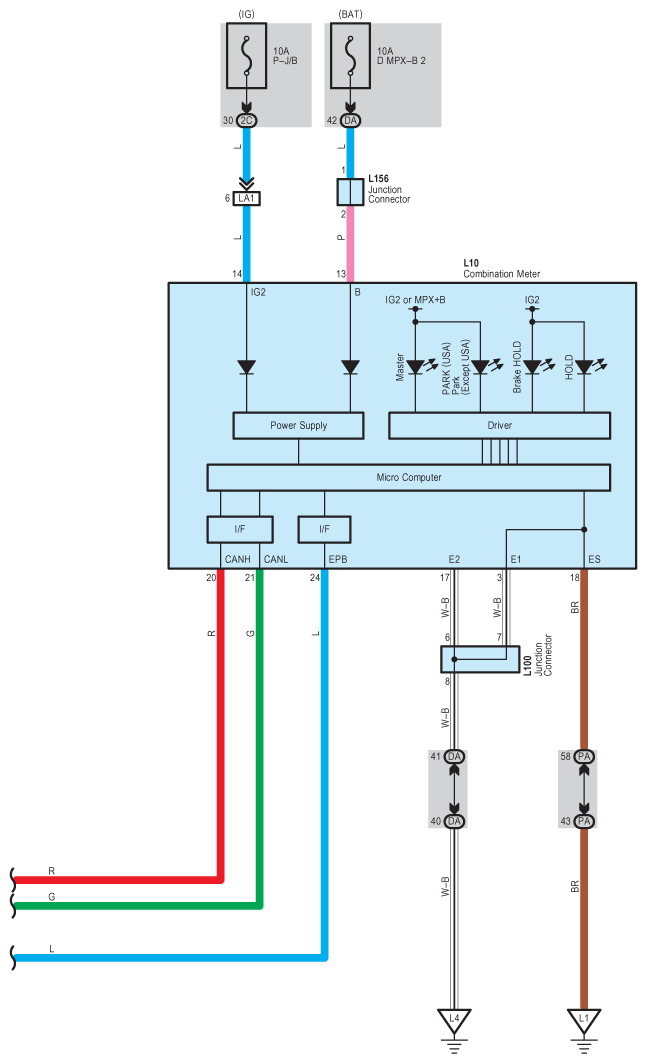

Fig 6: Electric Parking Brake - Wiring Diagram (6 Of 6)
G08936923Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
