OEM System Circuits
›
Power Shoulder Belt Anchorage
›
Notes
Power Shoulder Belt Anchorage: Notes

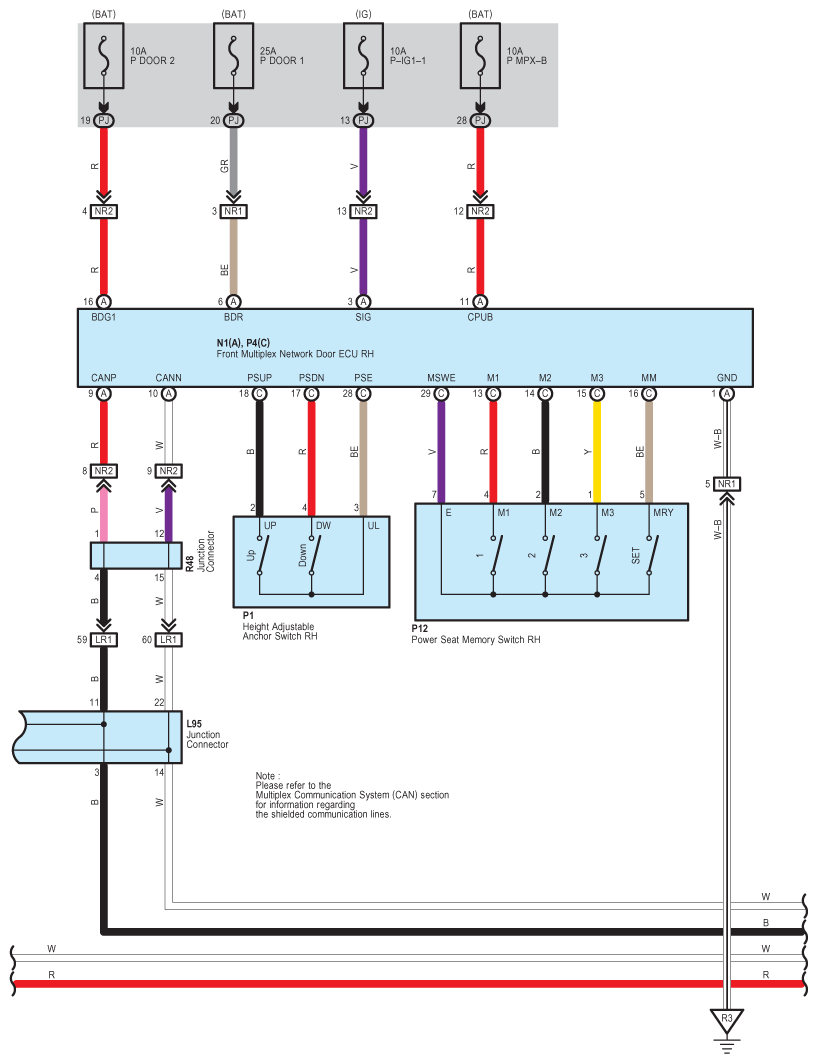

Fig 1: Power Shoulder Belt Anchorage - Wiring Diagram (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

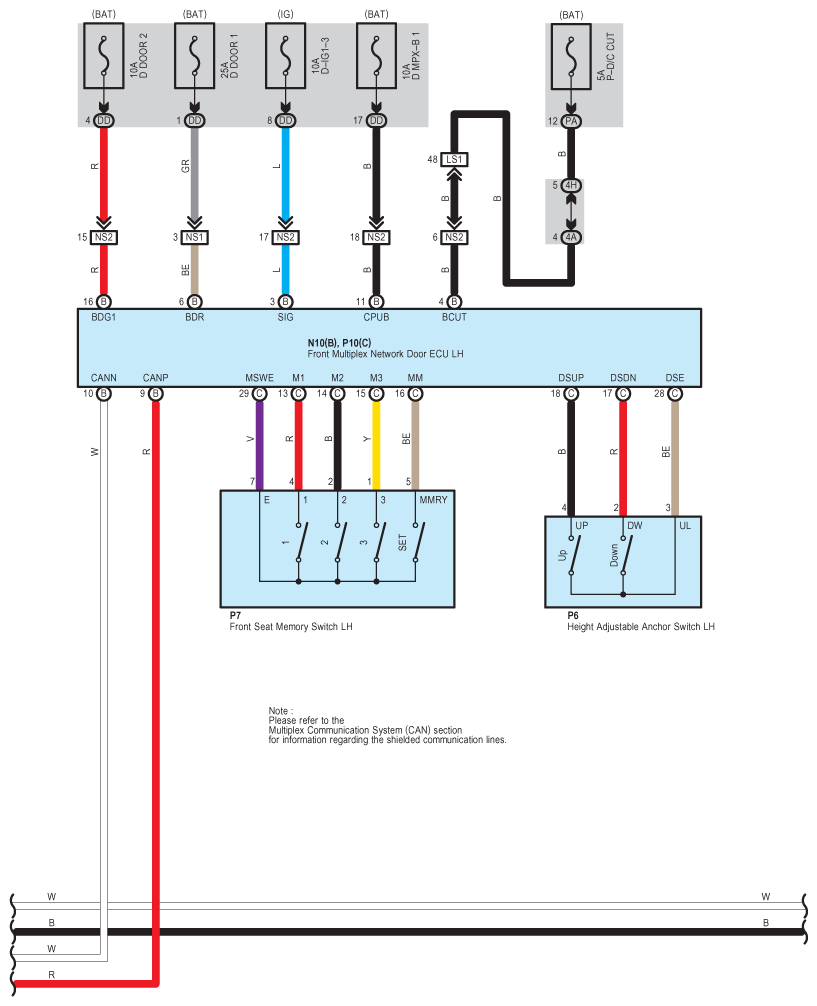

Fig 2: Power Shoulder Belt Anchorage - Wiring Diagram (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

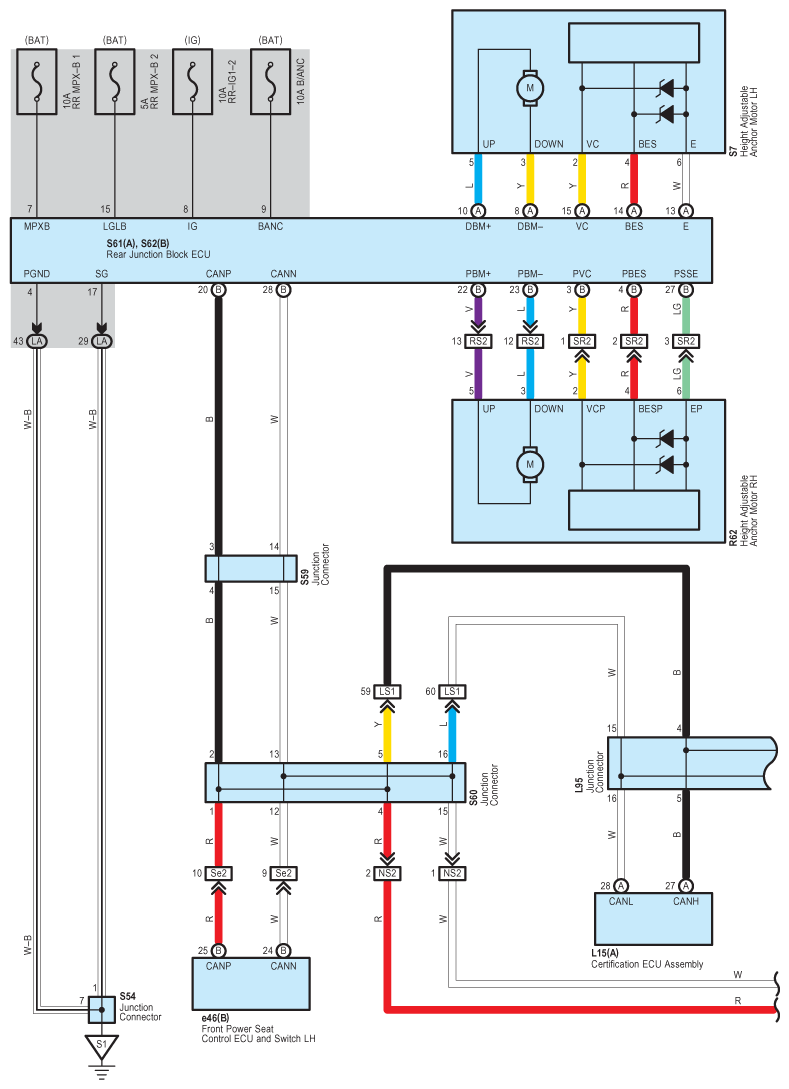

Fig 3: Power Shoulder Belt Anchorage - Wiring Diagram (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

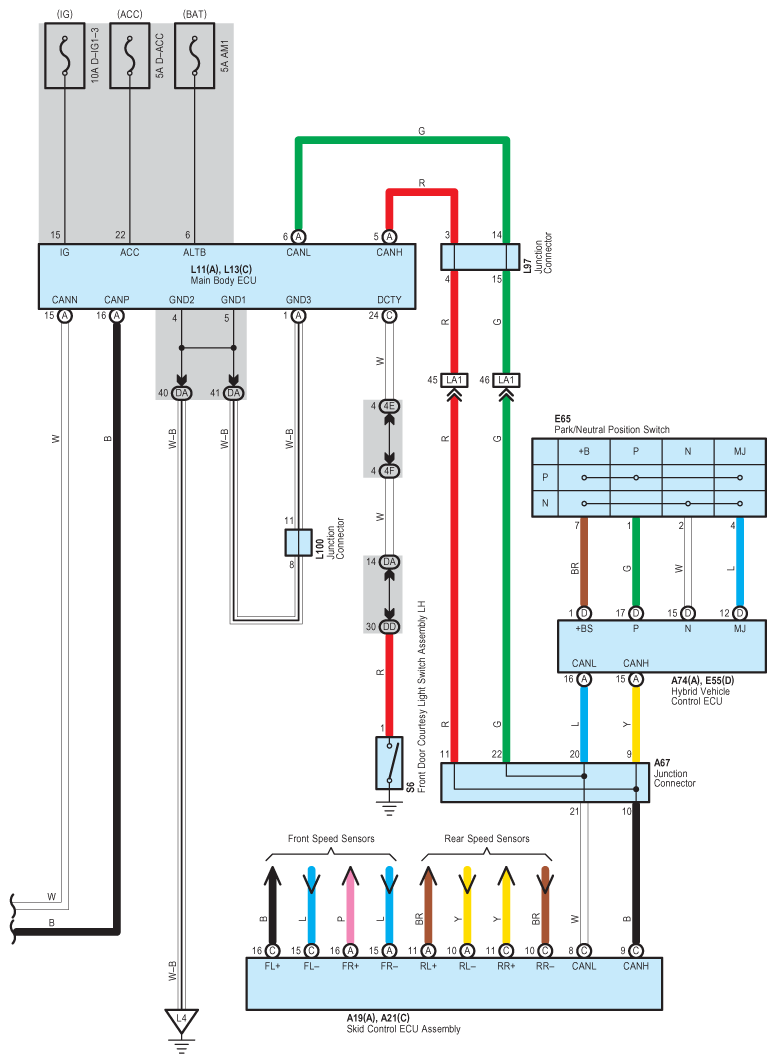

Fig 4: Power Shoulder Belt Anchorage - Wiring Diagram (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
