Section 41 (Air Conditioning System (Service Information)): Compressor: Components: Illustration

WARNING: This page is about a different car, the 2012 Lexus CT 200h. However, it is still accessible from the selected car via links, so may be relevant.

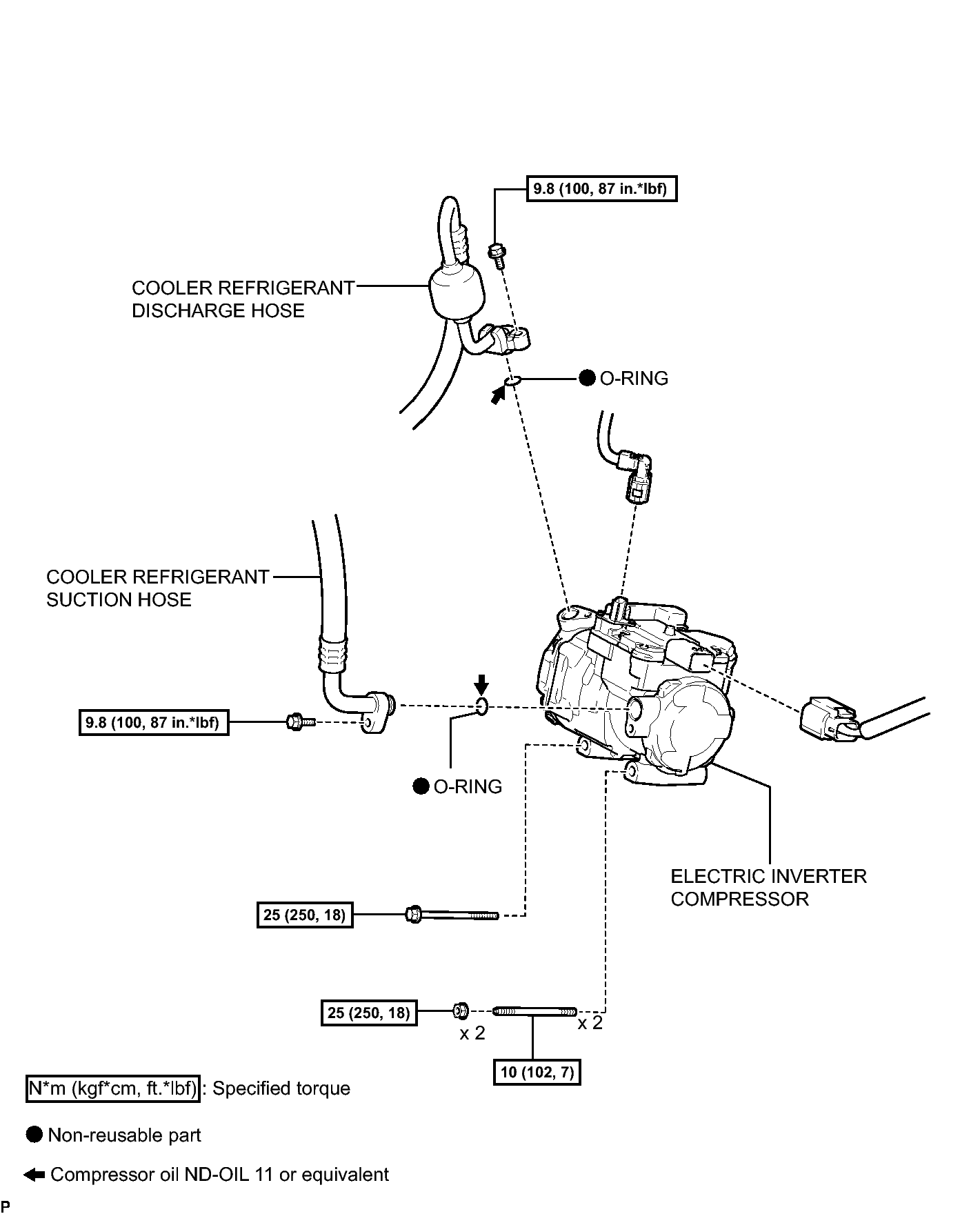

Fig 1: Identifying Compressor Replacement Components (1 of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

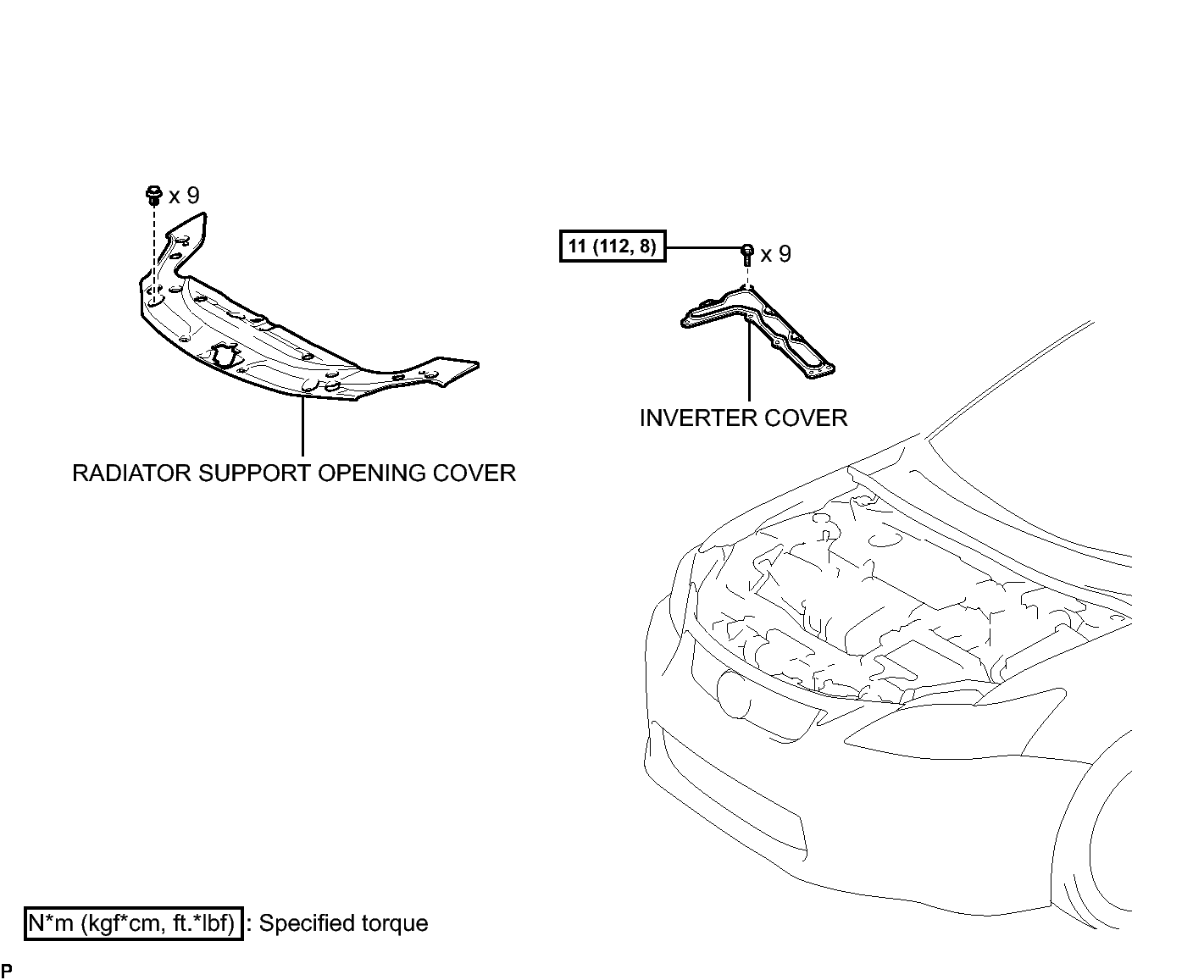

Fig 1: Identifying Compressor Replacement Components (2 of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

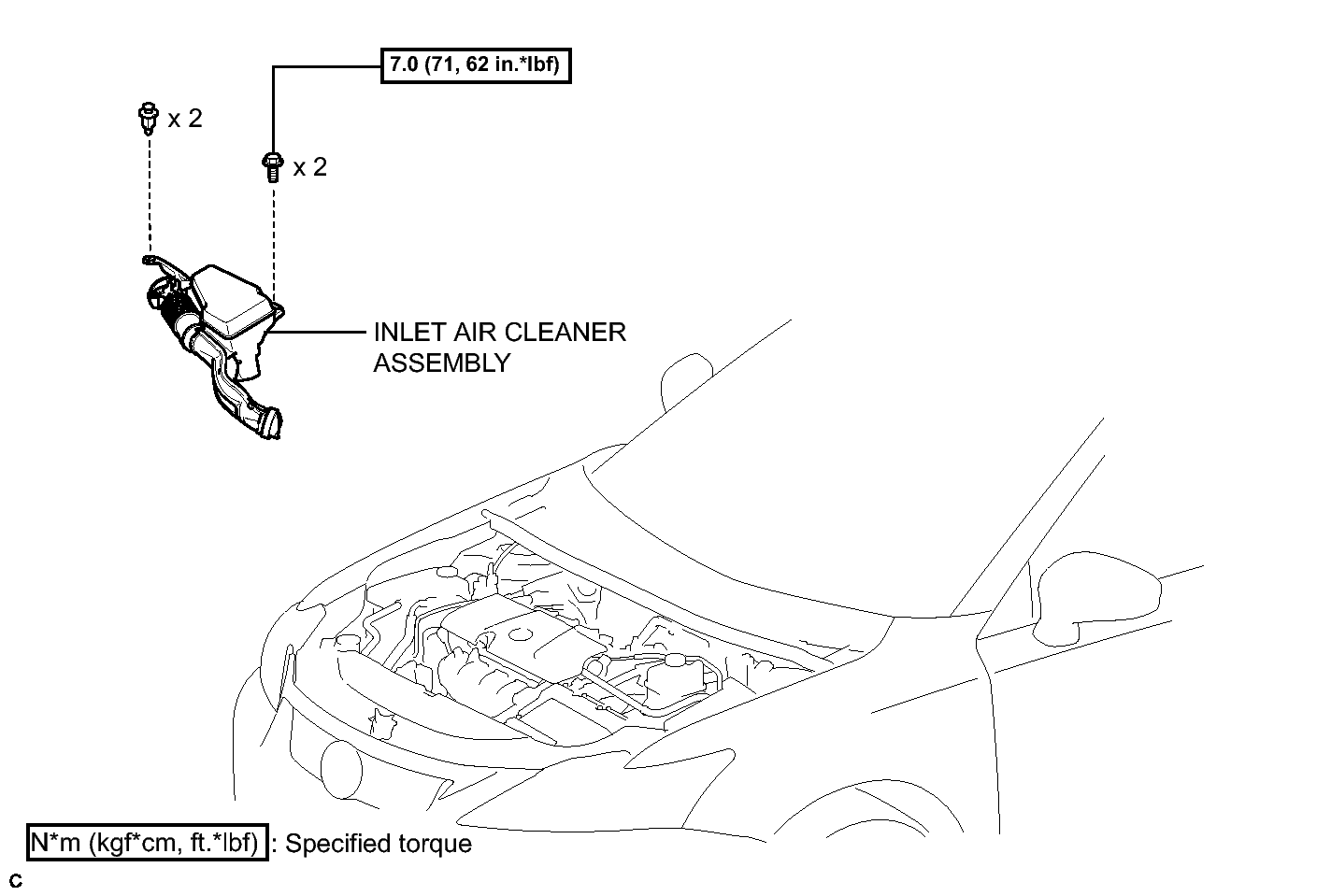

Fig 1: Identifying Compressor Replacement Components With Torque Specifications (3 of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Compressor Replacement Components With Torque Specifications (4 of 5)

Fig 1: Identifying Compressor Replacement Components With Torque Specifications (5 of 5)
